Filter Configuration 95
The new information will now be displayed in the read-only section
of Menu 21 - Filter Set Configuration as shown below:

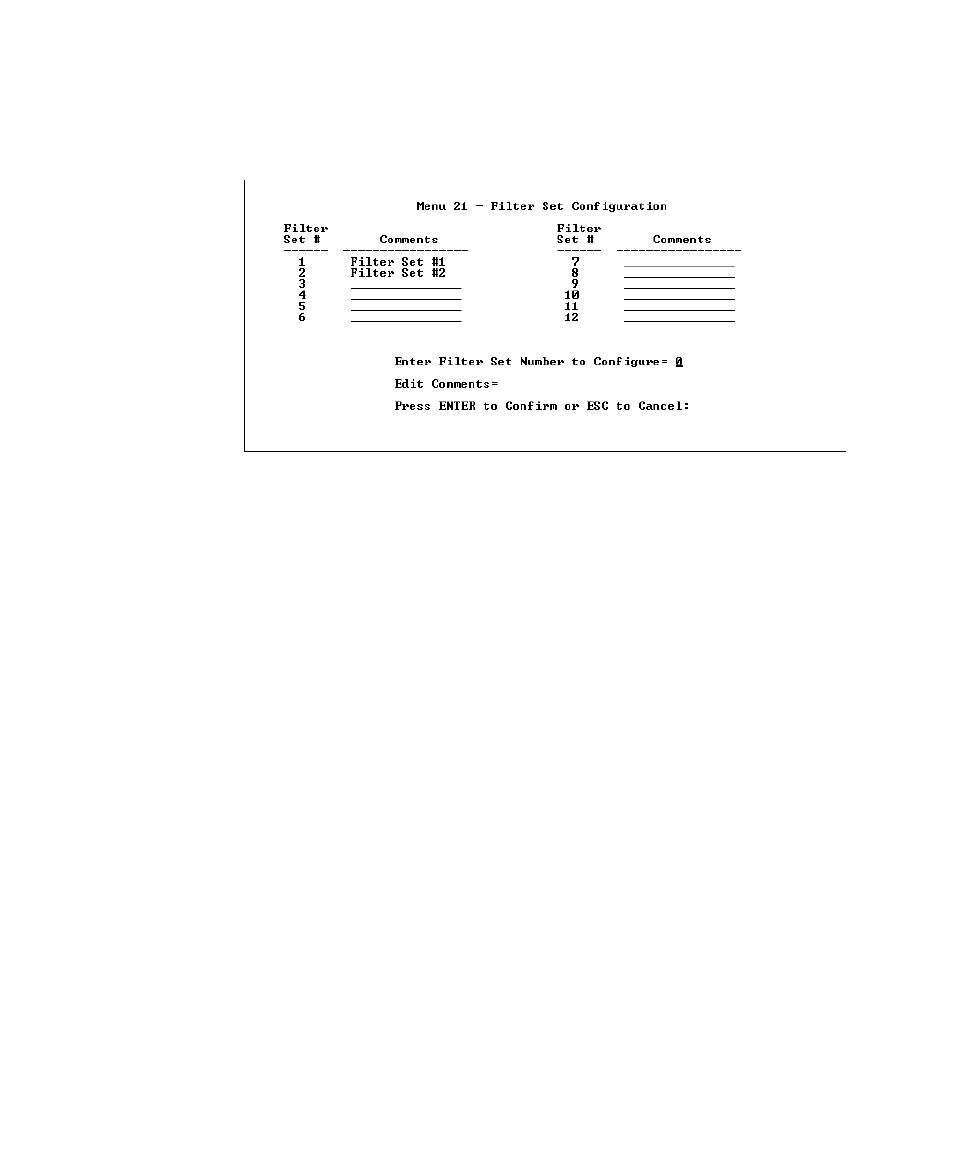

Figure 10-2 Menu 21 - Filter Set Configuration
Once you press ENTER, you will be taken to Menu - 21.1 - Filter
Rules Summary as seen below. The information displayed in this
menu is read-only. From here, you can examine the parameters of
each rule that you have configured for that set. The following is a
brief description of the abbreviations used in this menu.
•
# - Refers to the filter rule number (1-6).
•
A - Refers to Active. Y means the filter rule is active and N
means the filter rule is inactive.
•
Type - Refers to the type of filter rule. This can display GEN
for generic, IP for TCP/IP, or IPX for Novell IPX.
•
Filter Rules - The filter rule parameters will be displayed here
(see below).
•
M - Refers to More. Y means there are more rules to check, N
means there aren’t.
