Chapter 4 The Web Configurator

GS-2750 User’s Guide

50

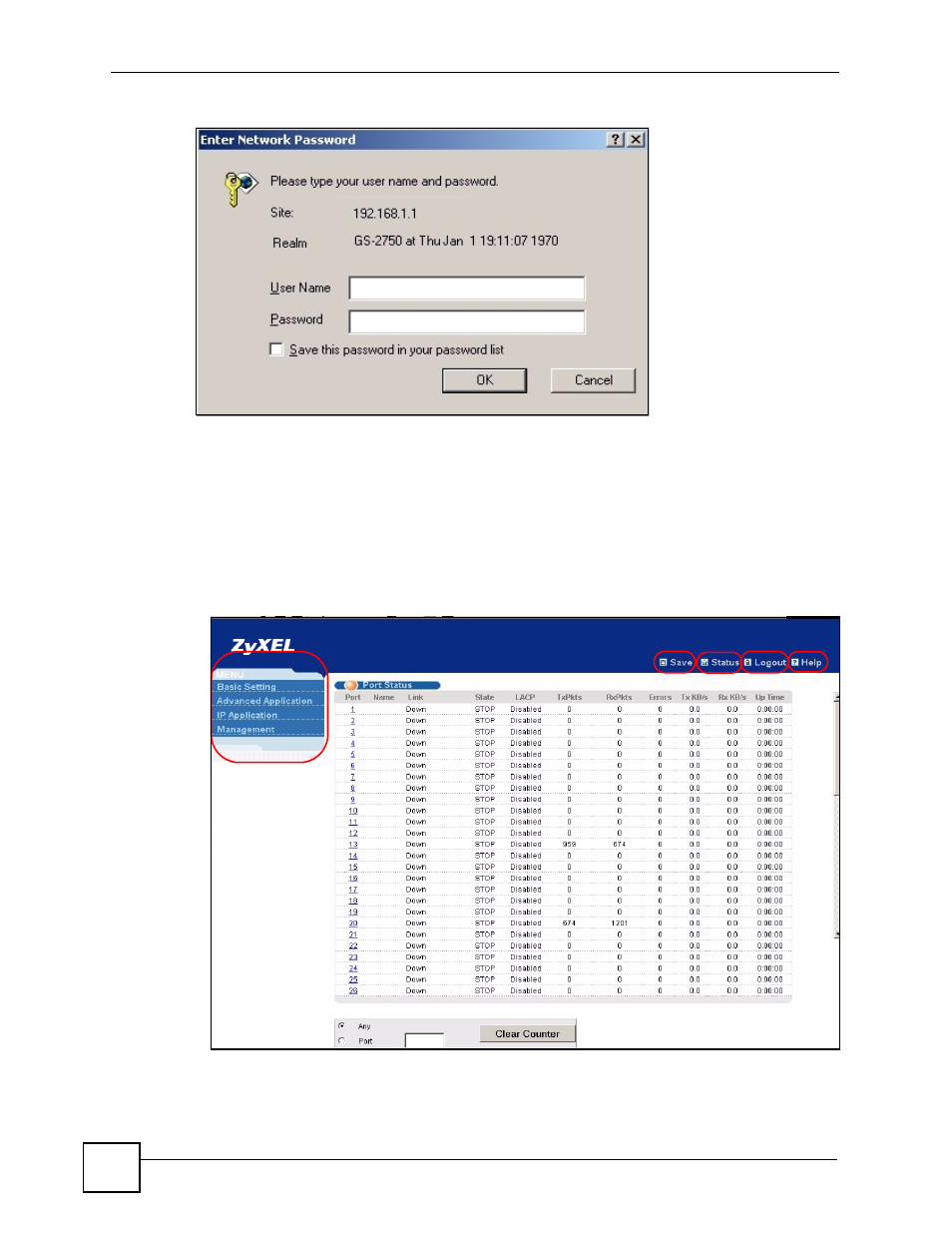

Figure 14 Web Configurator: Login

4 Click OK to view the first web configurator screen.

4.3 The Status Screen

The Status screen is the first screen that displays when you access the web configurator.
The following figure shows the navigating components of a web configurator screen.

Figure 15 Web Configurator Home Screen (Status)

A - Click the menu items to open submenu links, and then click on a submenu link to open the
screen in the main window.

A

B

D

C

E
