Chapter 30 VRRP
GS-2750 User’s Guide
249
You want to set switch A as the master router. Configure the VRRP parameters in the VRRP
Configuration screens on the switches as shown in the figures below.

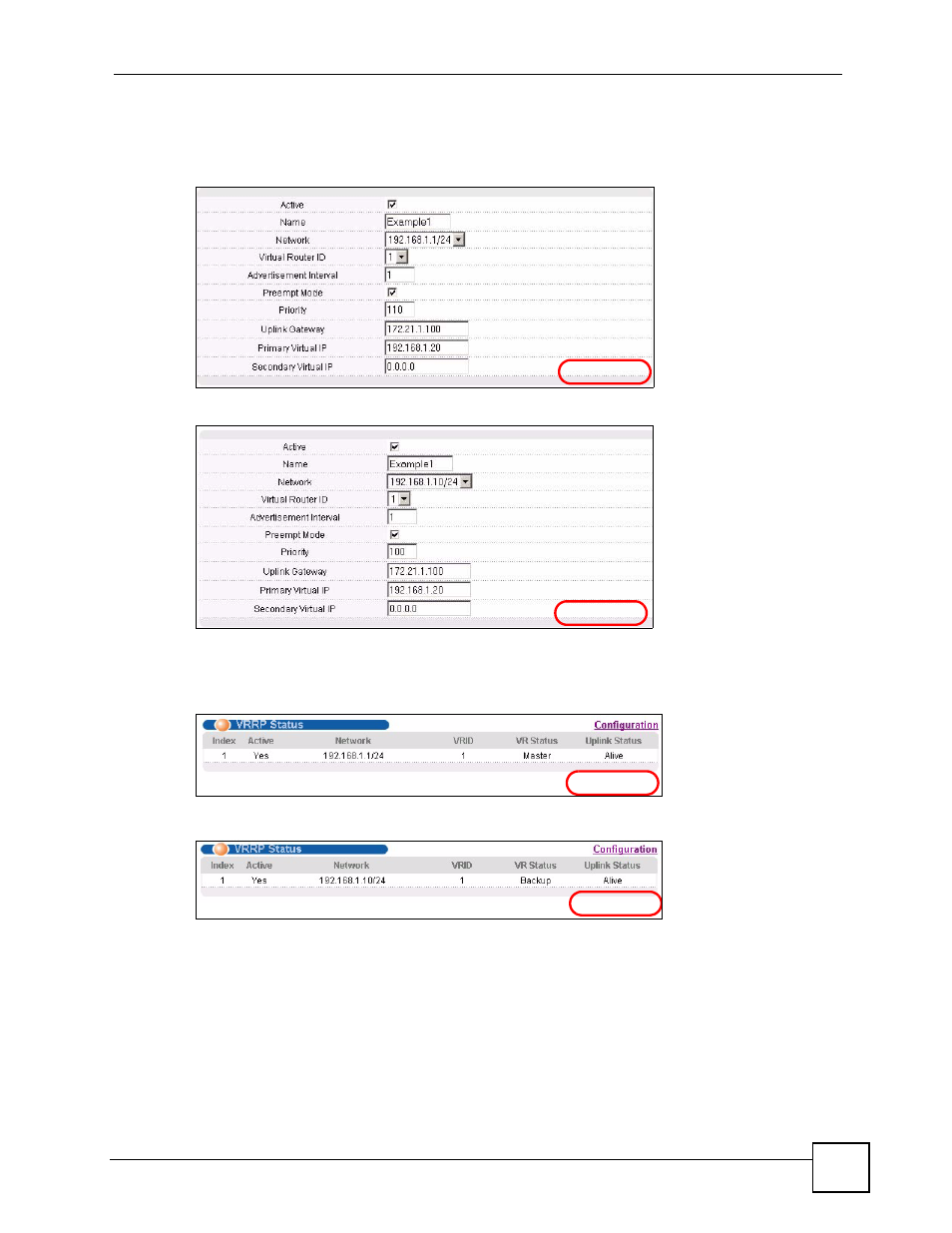

Figure 136 VRRP Example 1: VRRP Parameter Settings on Switch A
Figure 137 VRRP Example 1: VRRP Parameter Settings on Switch B
After configuring and saving the VRRP configuration, the VRRP Status screens for both
switches are shown next.
Figure 138 VRRP Example 1: VRRP Status on Switch A
Figure 139 VRRP Example 1: VRRP Status on Switch B
30.4.2 Two Subnets Example
The following figure depicts an example in which two switches share the network traffic.
Hosts in the two network groups use different default gateways. Each switch is configured to
backup a virtual router using VRRP.
You wish to configure switch A as the master router for virtual router VR1 and as a backup for
virtual router VR2. On the other hand, switch B is the master for VR2 and a backup for VR1.
