Chapter 30 VRRP
GS-2750 User’s Guide
248

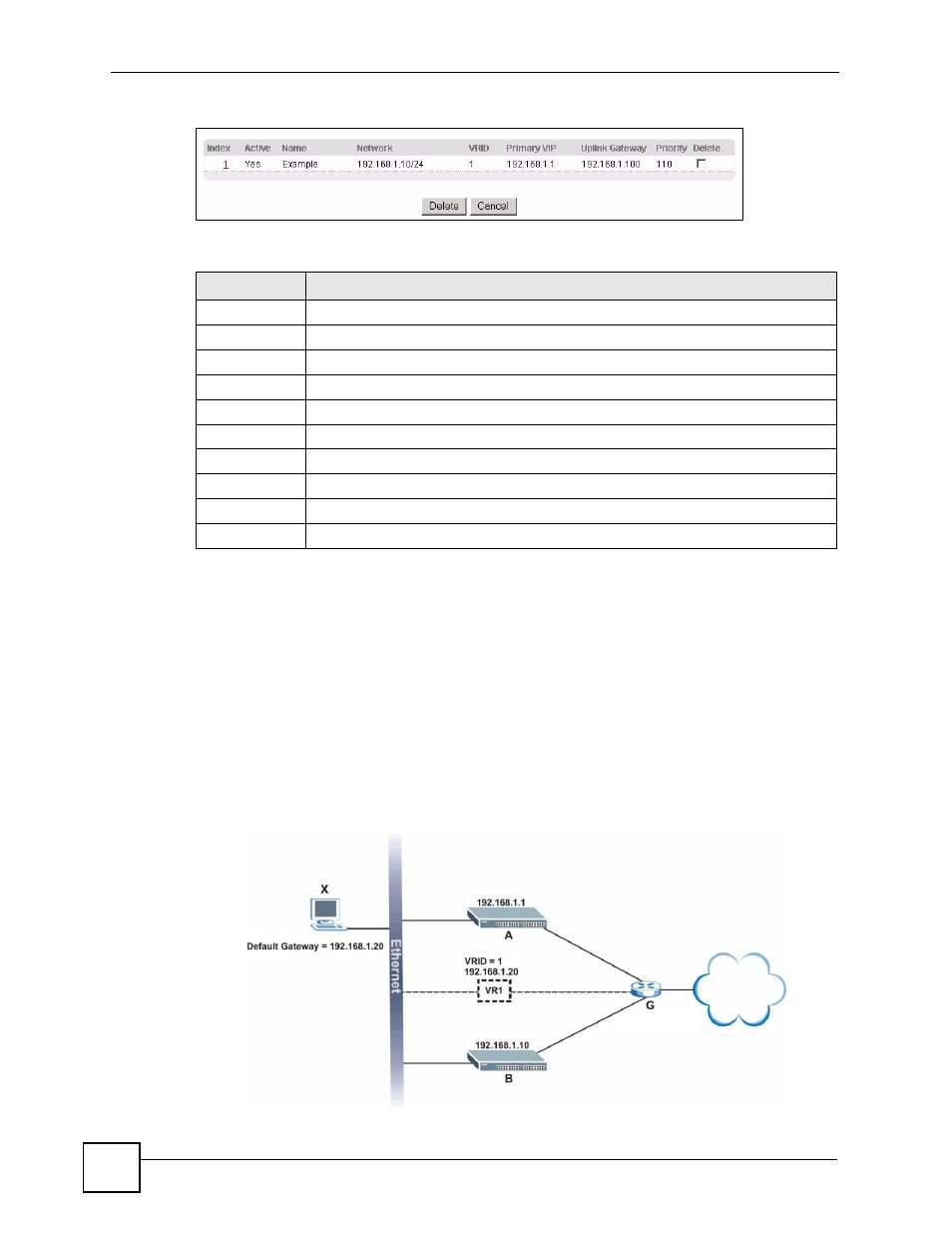

Figure 134 VRRP Configuration: Summary
The following table describes the labels in this screen.
30.4 VRRP Configuration Examples
The following sections show two VRRP configuration examples on the Switch.
30.4.1 One Subnet Network Example
The figure below shows a simple VRRP network with only one virtual router VR1 (VRID =1)
and two switches. The network is connected to the WAN via an uplink gateway G
(172.21.1.100). The host computer X is set to use VR1 as the default gateway.
Figure 135 VRRP Configuration Example: One Virtual Router Network
Table 96 VRRP Configuring: VRRP Parameters
LABEL DESCRIPTION
Index This field displays the index number of an entry.
Active This field shows whether a VRRP entry is enabled (Yes) or disabled (No).
Name This field displays a descriptive name of an entry.
Network This field displays the IP address and subnet mask of an interface.
VRID This field displays the ID number of a virtual router.
Primary VIP This field displays the IP address of the primary virtual router.
Uplink Gateway This field displays the IP address of the uplink gateway.
Priority This field displays the priority level (1 to 255) of the entry.
Delete Click Delete to remove the selected entry from the summary table.
Cancel Click Cancel to clear the Delete check boxes.
172.21.1.100
172.21.1.1
172.21.1.10
