GS-2750 User’s Guide
41
C
H A P T E R
3
Hardware Overview
This chapter describes the front panel and rear panel of the Switch and shows you how to
make the hardware connections.
3.1 Front Panel Connections

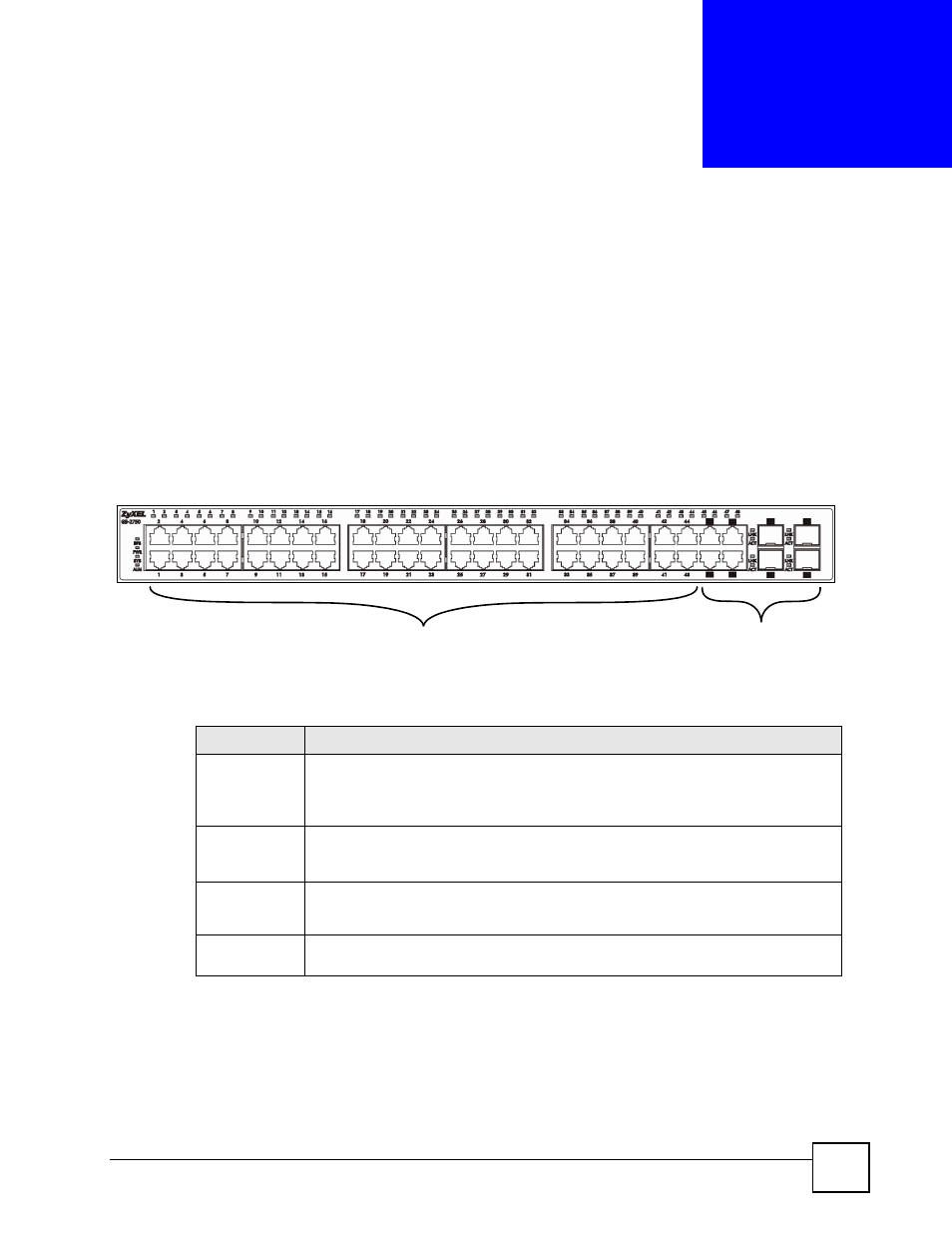

The figure below shows the front panel of the Switch.
Figure 8 Front Panel
The following table describes the ports.
10/100/1000 Mbps RJ-45
Ethernet Ports
RJ-45 Gigabit / Mini-GBIC
Dual Personality Interfaces
Table 1 Panel Connections
CONNECTOR DESCRIPTION
44 10/100/
1000 Mbps RJ-
45 Ethernet
Ports
Connect these ports to a computer, a hub, an Ethernet switch or router.
Four Dual
Personality
Interfaces
Each interface has one 1000 Base-T RJ-45 port and one Small Form-Factor
Pluggable (SFP) slot (also called a mini-GBIC slot), with one port or transceiver
active at a time.
4 100/1000
Mbps RJ-
45 Ports
Connect these ports to high-bandwidth backbone network Ethernet switches using
1000Base-T compatible Category 5/5e/6 copper cables.
4 Mini-
GBIC Slots
Use mini-GBIC transceivers in these slots for fiber-optic connections to backbone
Ethernet switches.
