Chapter 29 DHCP
GS-2750 User’s Guide
235

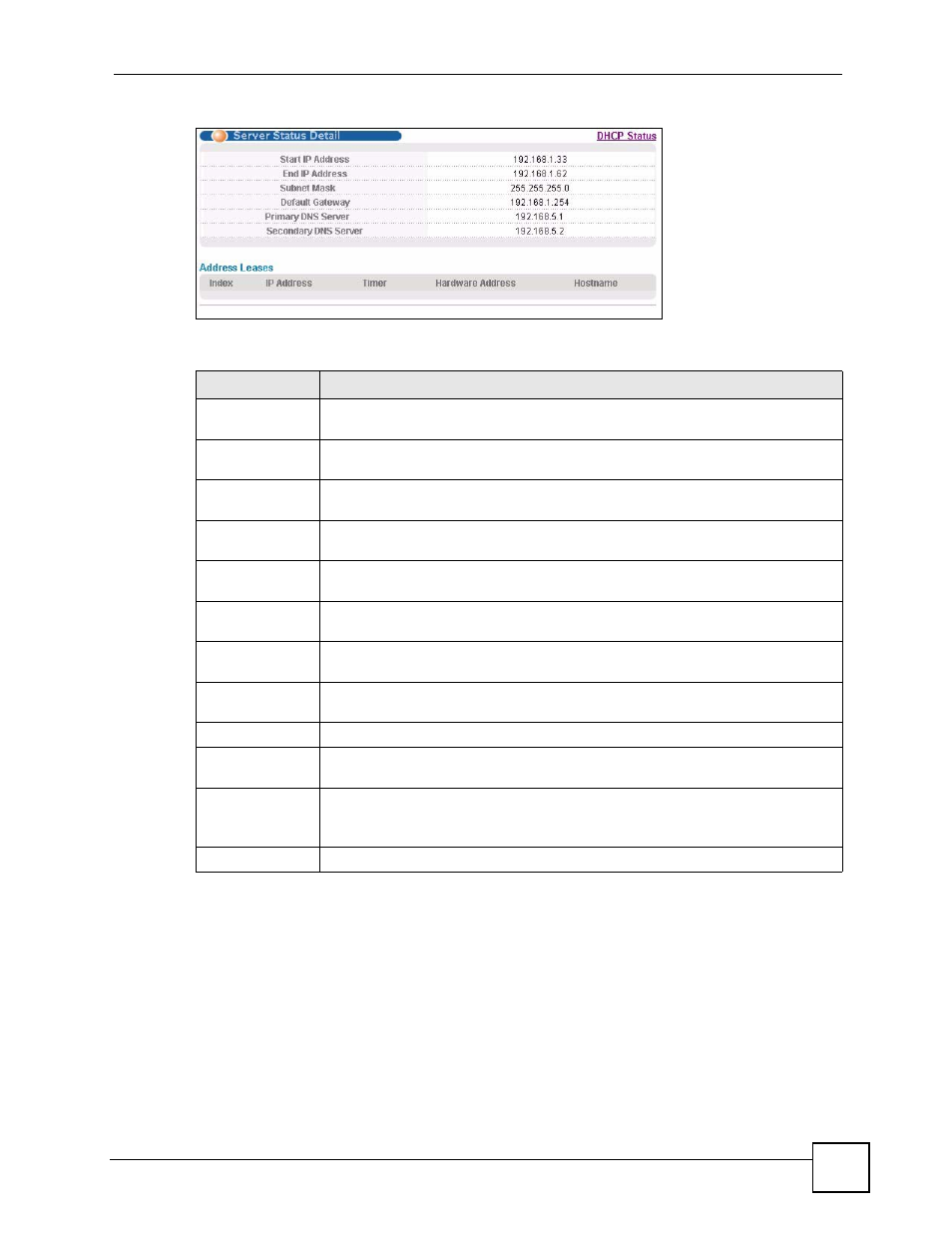

Figure 123 IP Application > DHCP > DHCP Server Status Detail
The following table describes the labels in this screen.
29.4 DHCP Relay
Configure DHCP relay on the Switch if the DHCP clients and the DHCP server are not in the
same broadcast domain. During the initial IP address leasing, the Switch helps to relay
network information (such as the IP address and subnet mask) between a DHCP client and a
DHCP server. Once the DHCP client obtains an IP address and can connect to the network,
network information renewal is done between the DHCP client and the DHCP server without
the help of the Switch.
Table 89 IP Application > DHCP Server Status Detail
LABEL DESCRIPTION
Start IP Address This field displays the starting IP address of the IP address pool configured for this
DHCP server instance.
End IP Address This field displays the last IP address of the IP address pool configured for this
DHCP server instance.
Subnet Mask This field displays the subnet mask value sent to clients from this DHCP server
instance.
Default Gateway This field displays the default gateway value sent to clients from this DHCP server
instance.
Primary DNS
Server
This field displays the primary DNS server value sent to clients from this DHCP
server instance.
Secondary DNS
Server
This field displays the secondary DNS server value sent to clients from this DHCP
server instance.
Address Leases This section displays information about the IP addresses this DHCP server issued
to clients.
Index This field displays a sequential number for each DHCP request handled by the
Switch.
IP Address This is the IP address issued to a DHCP client.
Timer This field displays the time remaining before the DHCP client has to renew its IP
address.
Hardware
Address
This field displays the MAC address of the DHCP client.
It may also display SELF OCCUPIED ADDRESS if the IP address cannot be used
for DHCP because it is already assigned to the Switch itself.
Hostname This field displays the system name of the client.
