2 Unwinder / Winder Operation
22 100kg Unwinder / Winder User Guide
4. Attached the tip of the roll media to the media core on the Winder Spindles. Ensure that the
media parallel to the core. Secure the tip of the media to the core with tape.
2 1
3

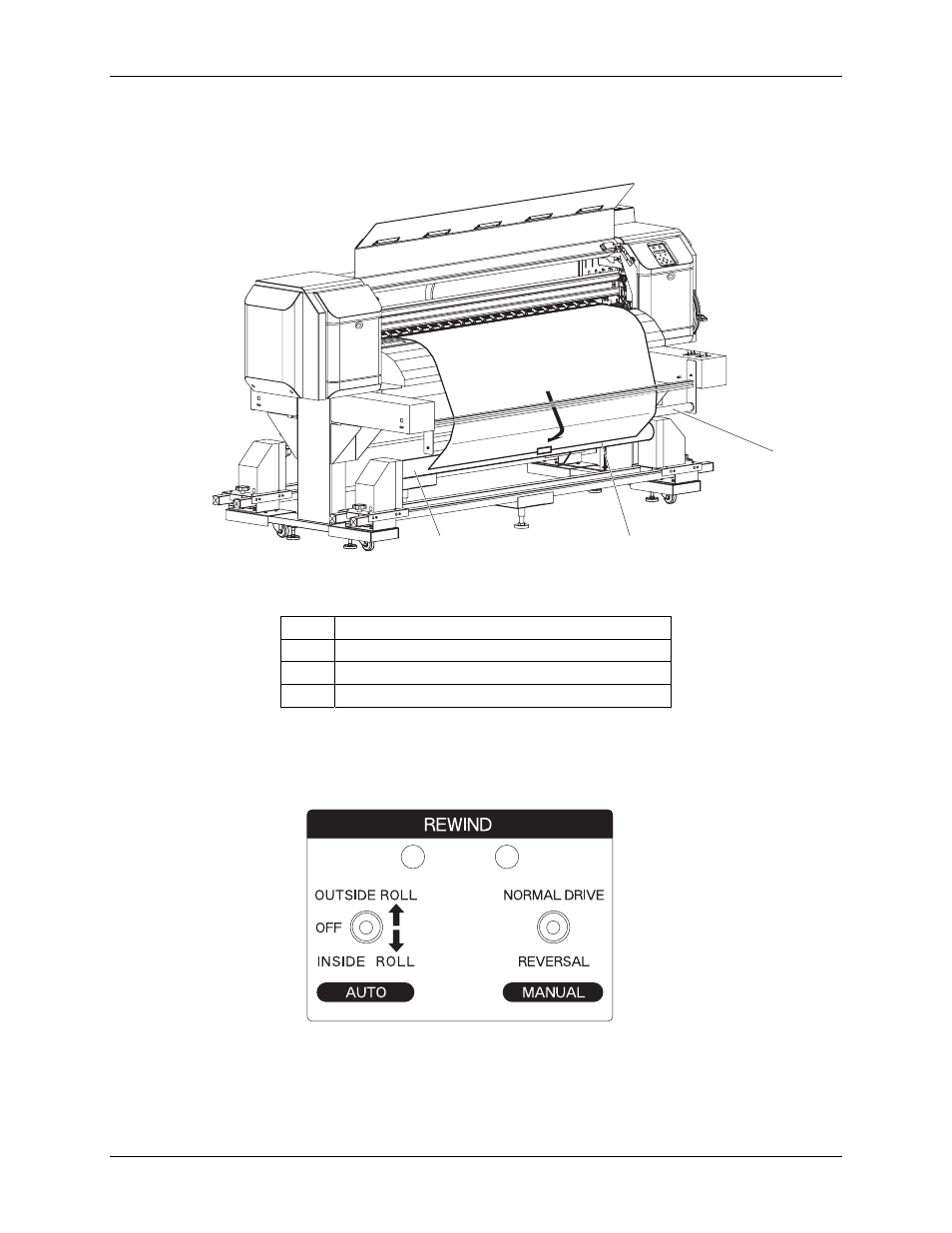

Figure 31. Attach the Media to the Core
No. Part name
1 Roll Media
2 Media Core
3 Winder Tension Bar Roller
5. Set the Winder Automatic Operation Switch as follows:
・ When using roll paper where the print surface is on the outside: OUTSIDE ROLL
・ When using roll paper where the print surface is on the inside: INSIDE ROLL
Figure 32. Set Automatic Operation Switch
