2 Unwinder / Winder Operation
16 100kg Unwinder / Winder User Guide
13. Insert the roll media into the tension roller, and then into the Rear Printer Platen. Media can be
inserted either with the print surface on the outside (Figure 22) or with the print surface on the inside
(Figure 23).
a. When using roll paper where the print surface is on the outside.
1
2
3
2
1
3

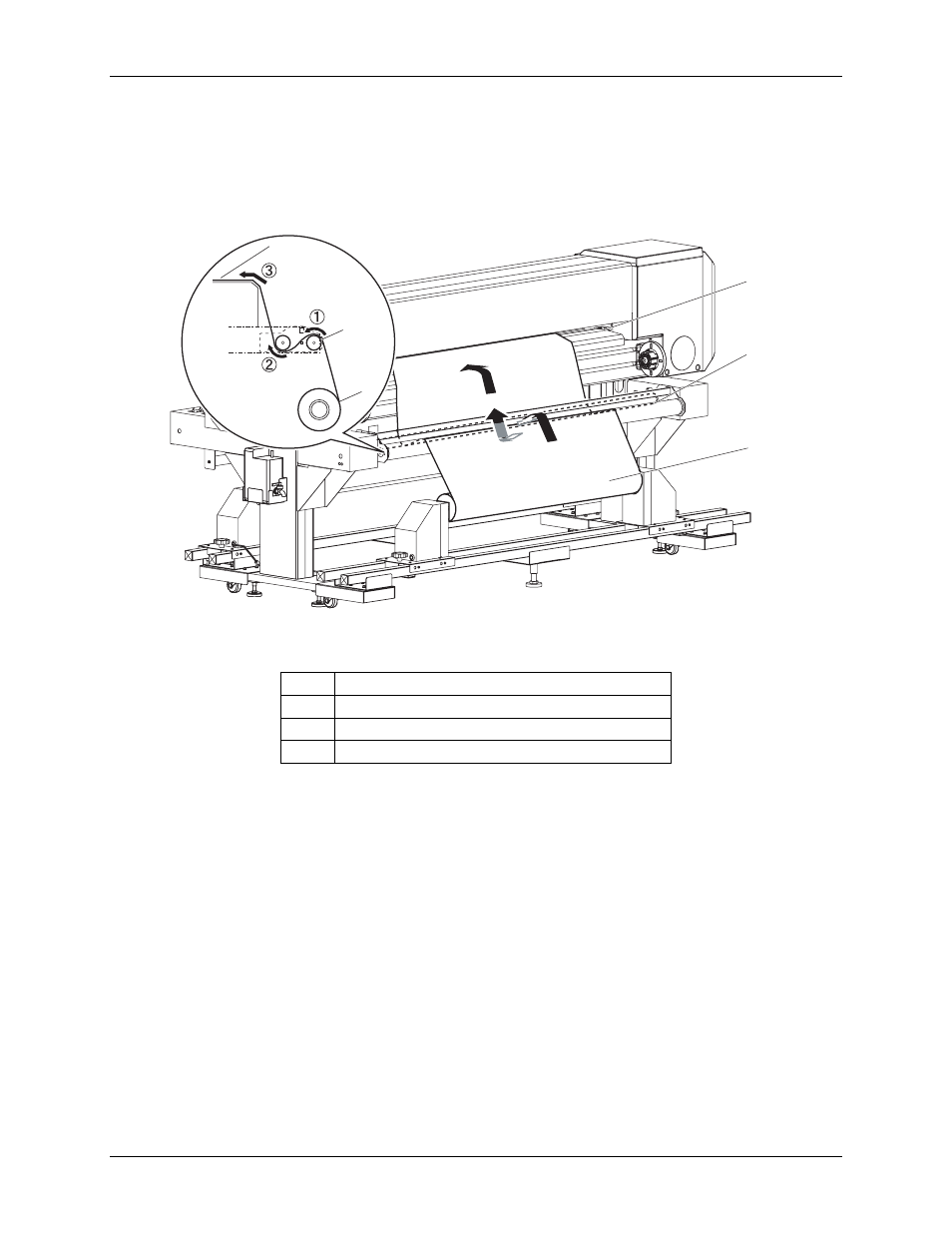

Figure 22. Insert Paper into Tension Roller
No. Part name
1 Roll Media
2 Unwinder Tension Bar Roller
3 Rear Printer Platen
