Typical field wiring diagrams, Typical nd360/480 & m1cz600a liquid line solenoid – York MILLENNIUM ND600 User Manual
Page 36
628767-YTG-C-0910
36
Johnson Controls Unitary Products
Typical Field Wiring Diagrams

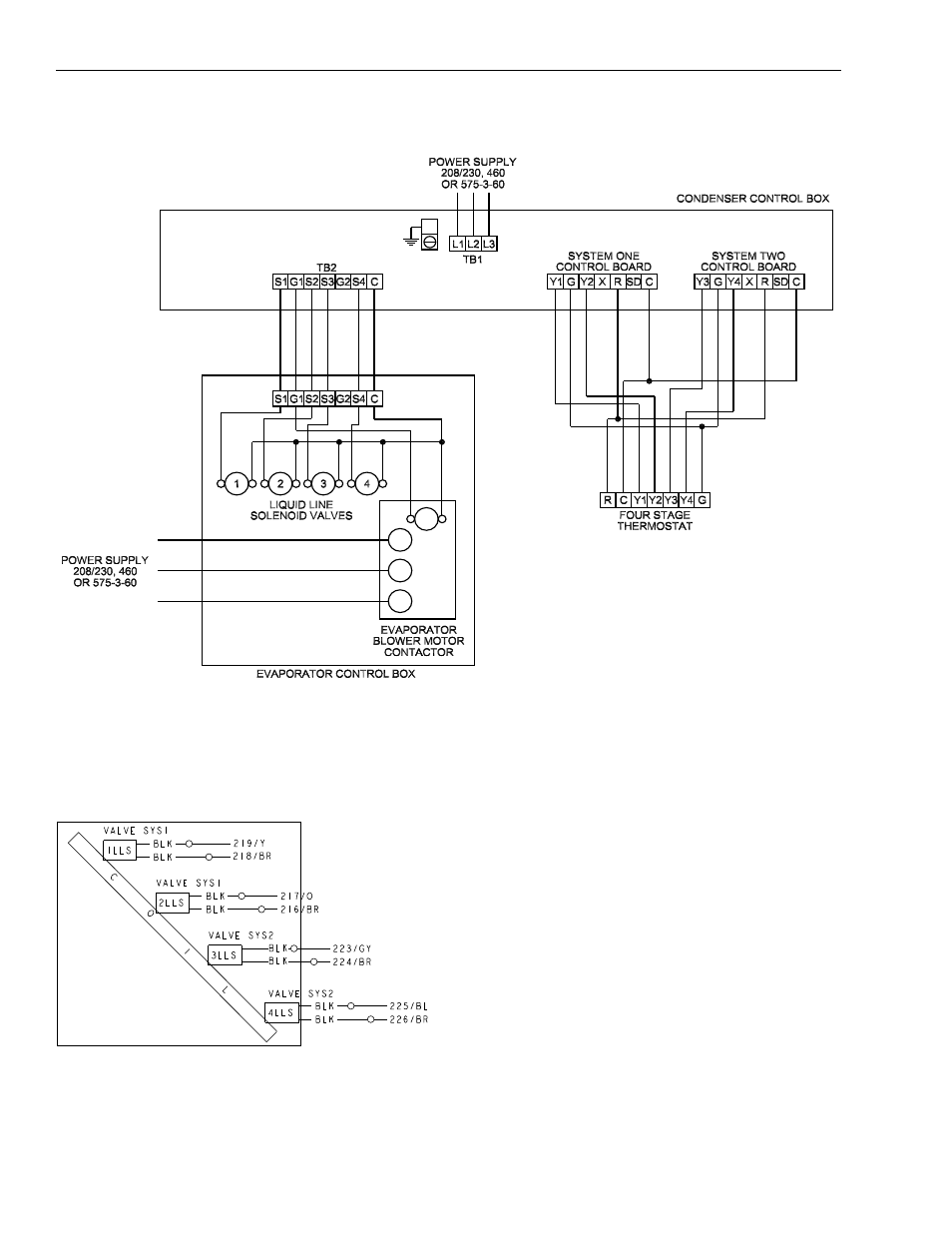

Typical Field Wiring Diagram ND360/480 Evaporator Units, ND600 Air Handler and M1CZ600A Evaporator Coil when
Matched with YD360/480/600 Condenser
NOTE: On non ND evaporator models, isolation relays must be installed to avoid overloading on 75VA transformers on the
condensing unit.
Typical ND360/480 & M1CZ600A Liquid Line Solenoid
