Printer Tour
Phaser® 3500 Laser Printer
3

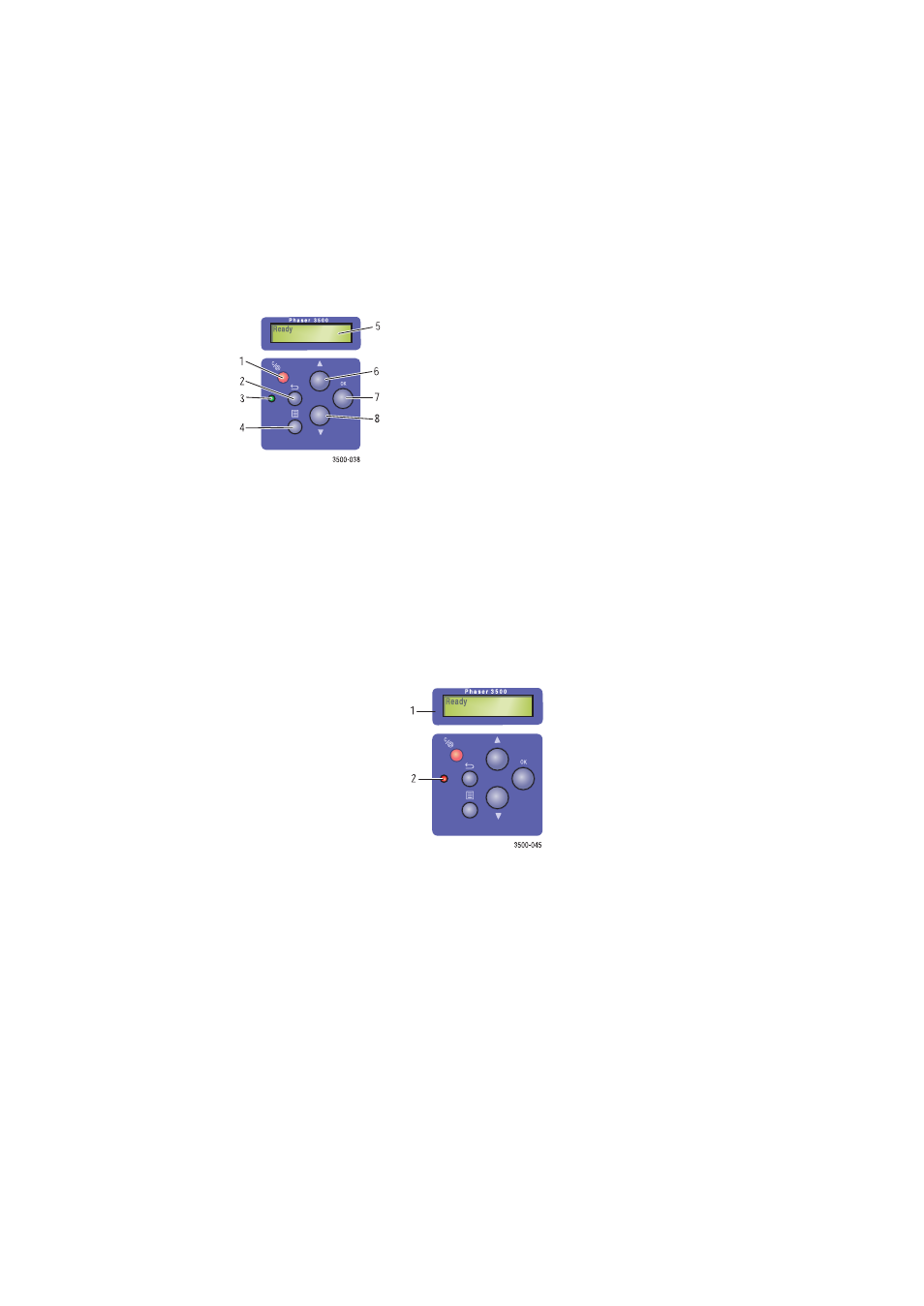

Control Panel Layout
The control panel has three components:
„ Multi-colored Light Emitting Diode (LED) light
„ Alphanumeric display
„ Six-button cluster.
The alphanumeric display provides status messages and control panel menus.
Error and Warning Messages
When there is a problem with the printer, the control panel LED (2) blinks orange for an error
and a warning. An error or warning message is displayed in the Alphanumeric Display (1).
Menu Map
The “Menu Map” is a visual representation of the control panel settings and information
pages.
To print the “Menu Map”:
1. On the control panel, press the Menu button, then press the OK button to select
Information .
2. Press the OK button to print the Menu Map .
1. Cancel button
2. Return button
3. On-line/Data/Error LED
4. Menu button
5. Status/Error Messages and Menus
6. Up Arrow button
7. OK button
8. Down Arrow button
