Configuration
Configuration and Calibration LCD Displays
11342L Rev. 8 6/4/2004 105SL User Guide 55
HEAD RESISTOR
Note • Depending on the printer model you have, this menu item may not be available.
For printers with model numbers 10500-2XXX-XXXX and 10500-3XXX-XXXX, the
head resistor value is set automatically.
Setting the Head Resistor Value: This value has been preset at the factory to match
the resistance value of the printhead. It does not need to be changed unless the
printhead is replaced.
Caution • This parameter should be changed only by a qualified service technician.
1. Before replacing the printhead, look for the label that shows the resistance value
(ohm value) of the new printhead and note it for the setting (
Figure 33 ).

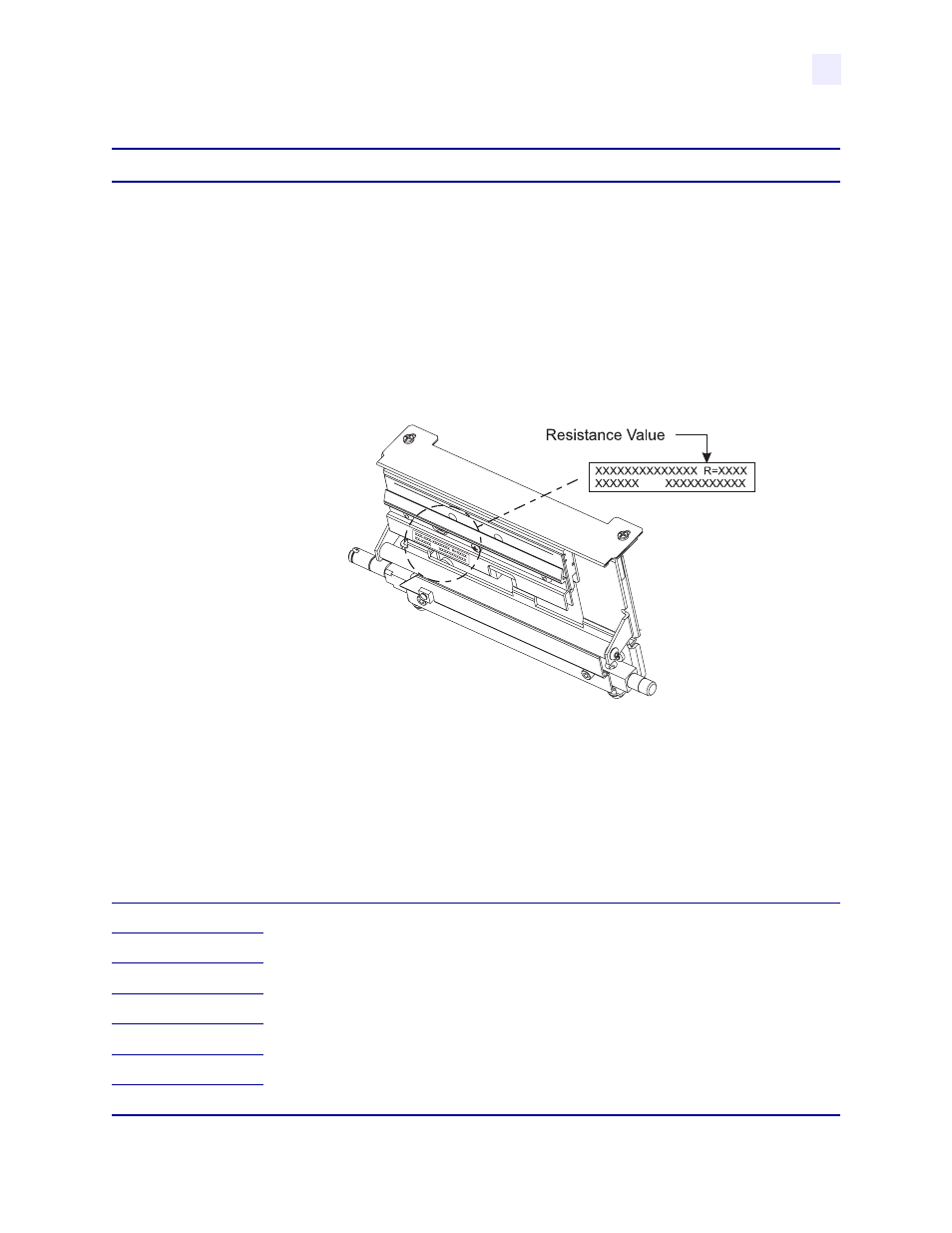

Figure 33 • Head Resistance Value
2. From the front panel, access the HEAD RESISTOR parameter.
3. Press the (–) key to move to the next digit position; press the (+) key to increase the
value of the digit.
Caution • Do not set the value higher than that shown on the printhead. Setting a
higher value may damage the printhead.
Initial Value: Factory-set to match the printhead shipped with your printer.
Default Value: 0500
Range: 0500 to 1175
WEB S.
Press NEXT/SAVE repeatedly to skip these parameters.
Caution • These parameters are automatically set during the calibration procedure.
They should be changed only by a qualified service technician. Refer to the
maintenance manual for more information on these parameters.
MEDIA S.
RIBBON S.
MARK S.
MARK MED S.
RIBBON LED
MARK LED
Table 6 • Printer Parameters (Sheet 10 of 11)
Parameter Action/Explanation
