Printer Operation
Configuring the Software or Printer Driver
11342L Rev. 8 6/4/2004 105SL User Guide 39
6. Position the lower media sensor ( Figure 31 ) by sliding it in its slot until the lower media
sensor (light source) is positioned directly below the upper media sensor.

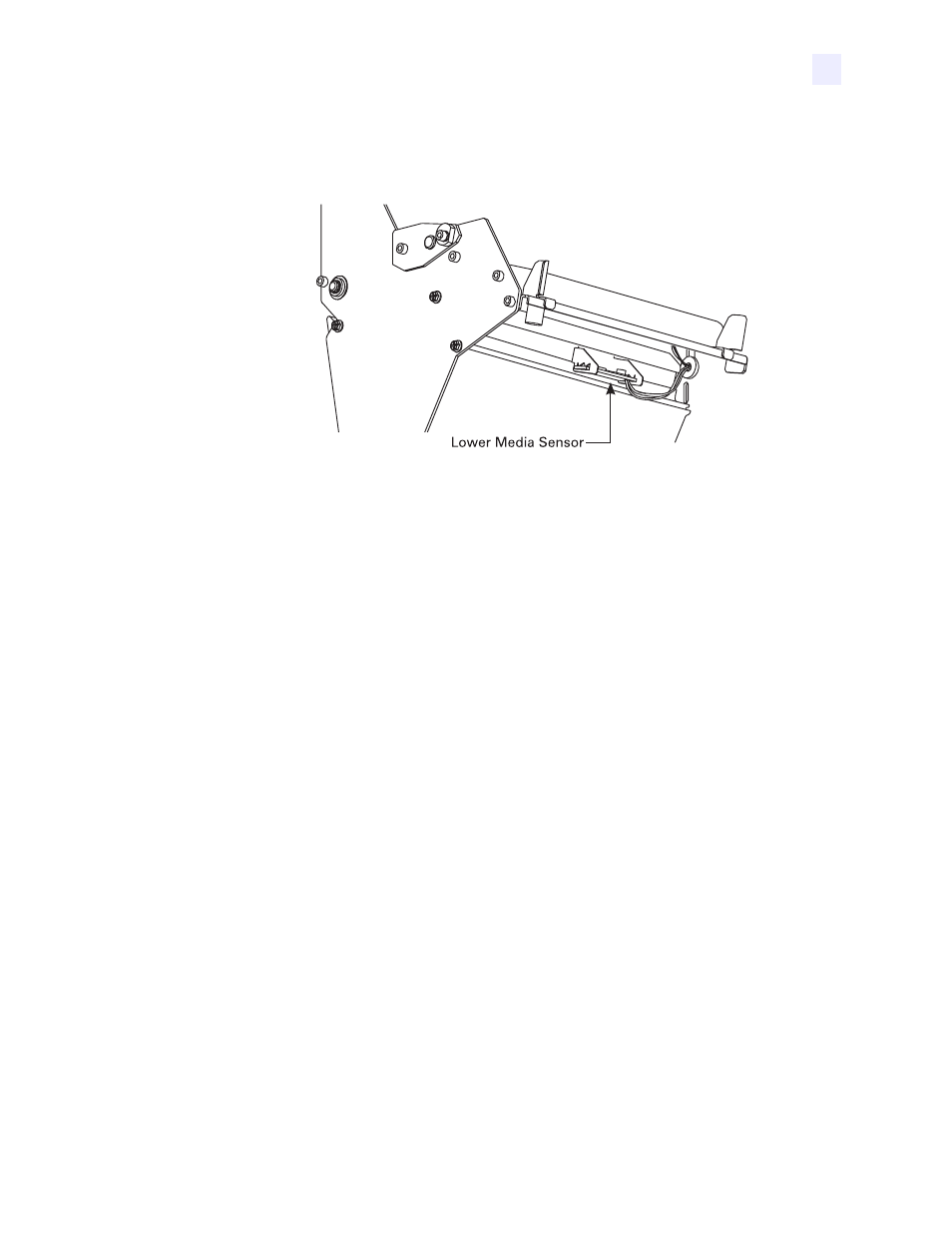

Figure 31 • Lower Media Sensor Adjustment
Black Mark Sensor
The optional black mark sensor is in a fixed position and enabled via the front panel (refer to
Configuration and Calibration LCD Displays on page 46 for details).
Configuring the Software or Printer Driver
Many printer settings may also be controlled by your printer’s driver or label preparation
software, which may override any settings you have made manually through the front panel.
Refer to the driver or software documentation for more information.
