Printer Operation
Roll Media Loading
11342L Rev. 8 6/4/2004 105SL User Guide 23
Peel-Off Mode
Refer to Figure 16 . The following instructions pertain to printers with the Rewind option only.
To load media in Peel-Off mode, complete these steps:
1. Remove the rewind plate from the front of the printer (if installed). Store it upside-down
on the two mounting screws on the inside of the front panel.
2. Open the printhead.
3. Slide the media guide and media supply guide as far from the printer frame as possible.
4. Load media as shown.
5. When loading media, allow approximately 36 in. (915 mm) of media to extend past the
tear-off bar. Remove all labels from this portion to create a leader.
6. Remove the hook from the rewind spindle. If you are using a core, slide it onto the rewind
spindle until it is flush against the guide plate.
7. Wind the label liner around either the 3 in. (76.2 mm) core or the rewind spindle and
reinstall the hook.
8. Slide in the media guide and media supply guide so they just touch, but do not restrict, the
edge of the roll.
9. Close the printhead.
10. To remove the label liner from the rewind spindle, refer to Removing the Label Liner
on page 28 .

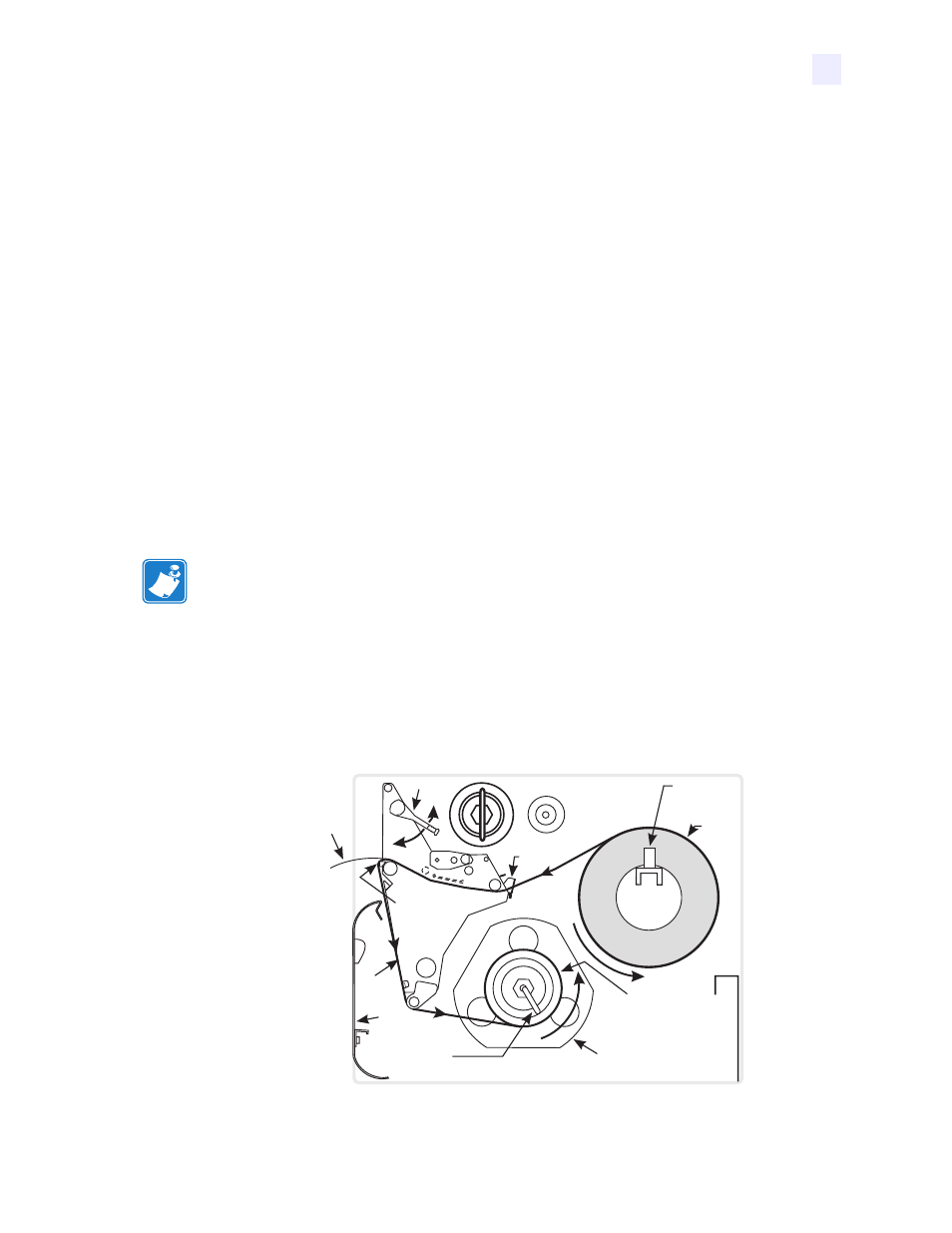

Figure 16 • Peel-Off Mode Loading
Note • Before closing the printhead, make sure that:
• the media is positioned against the inside guides.
• the media is taut and parallel with itself and the pathway when wound onto the rewind
spindle/core.
Media
Guide
Media
Media
Supply
Guide
Closed
Open
Rewind
Spindle
Hook
Printhead Lever
Rewind
Plate
Tear-off
Bar
Guide
Plate
Label
Label
Liner
