Printer Components—Internal

Figure 2–4 shows how the C55 printer’s internal components are arranged.
Two important groups of internal components of your printer are the
Consumables (replenishable substances used by the printer) and
Maintenance Items (the parts that require replacement). See the insert to
order these items.

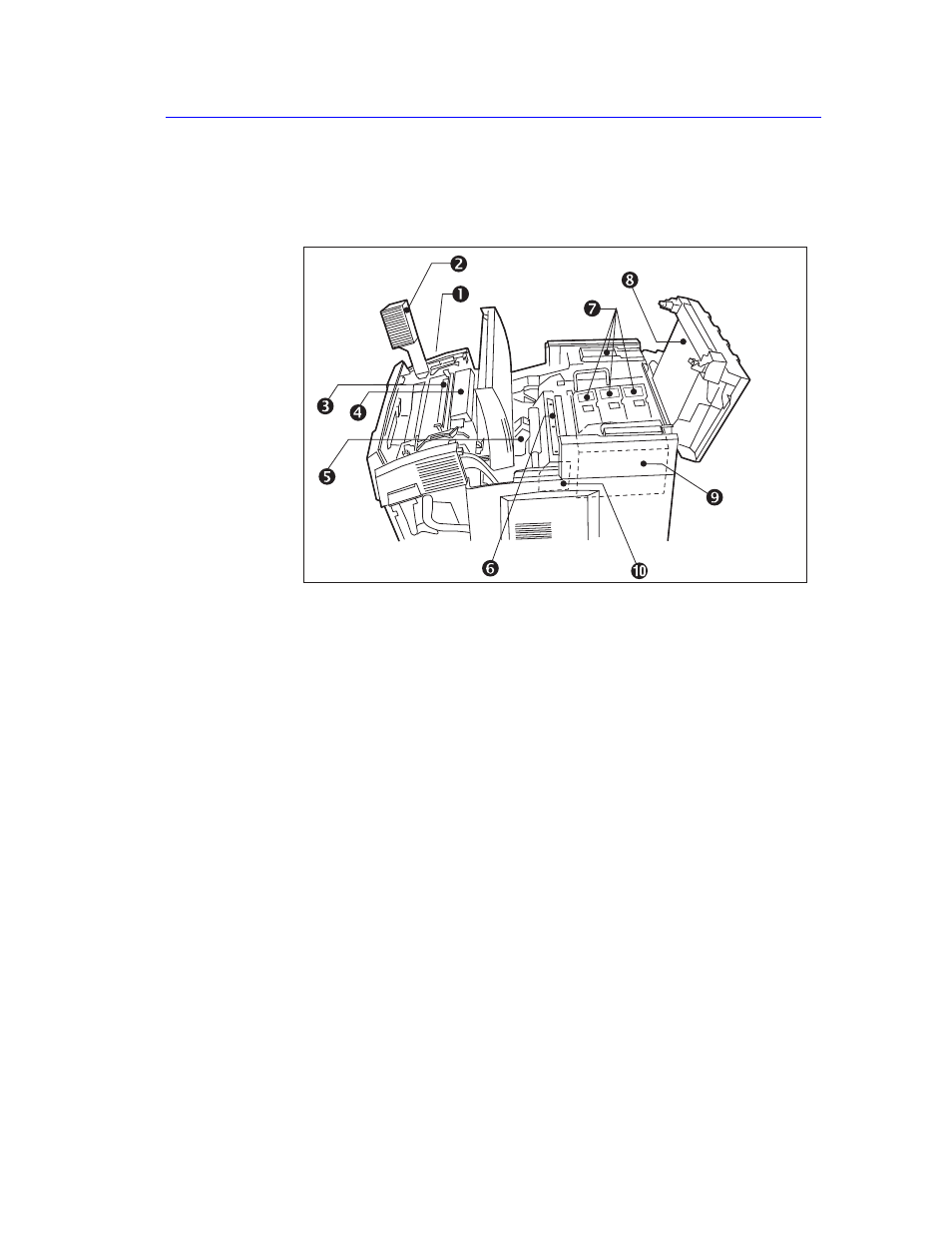

Figure 2–4: The C55 Printer, Internal View of Components

Fuser Area

Print Drum

Ozone Filter

Black/Color Toner Refill Doors

Fuser Cleaner Roller

Serial Number Plate

Fuser Oil Bottle

Color Developer Unit

Toner Collector

Black Developer Unit
