78 Zebra Z4M/Z6M Printers User’s Guide
)((' .H\ 6HOI 7HVW
See Figure 32.
1. Turn off the printer.
2. Press and hold the FEED key
while turning on the power.
3. Release the FEED key after the
DATA light turns off
(approximately five seconds).
The FEED Key Self Test prints out
at various darkness settings above
and below that of the darkness value
shown on the configuration label.
Examine these labels and determine
which one has the best darkness
setting for your application. This
value can be entered into the printer
by setting the darkness during the
configuration procedure. Refer to
page 40 for more information.
The value printed on that label is added to (plus) or subtracted from (minus) the
darkness value specified on the configuration label. The resulting numeric value
(0 to 30) is the best darkness value for that specific media/ribbon combination.

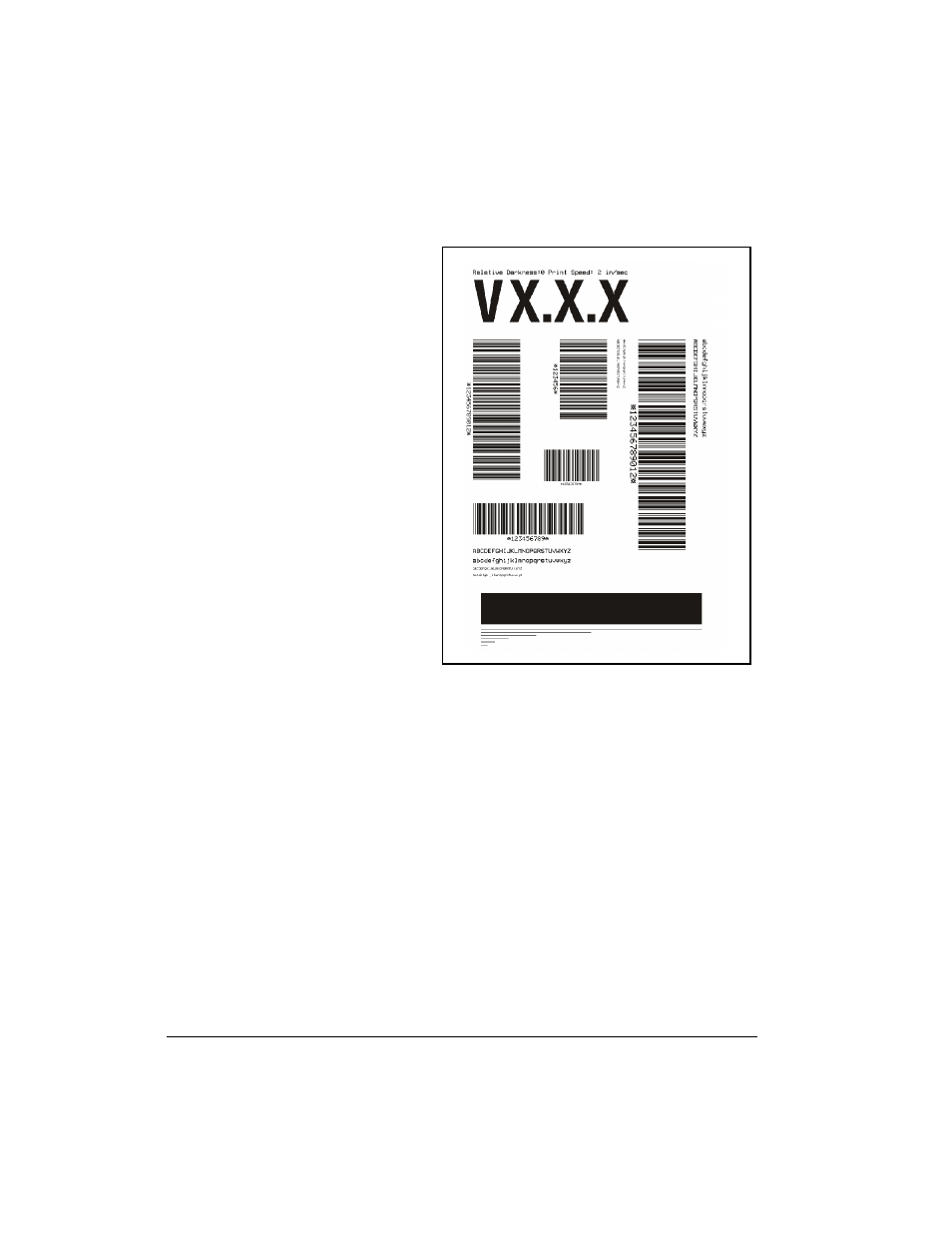

Figure 32
