&OHDQLQJ WKH 6HQVRUV
Brush or vacuum any accumulated paper lint and dust away from the printer sensors.
Refer to Figure 24. The reflective sensor, transmissive sensor, and ribbon sensor
should be cleaned on a regular basis to ensure proper operation of the printer. For
printers with the value peel-off, liner take-up, power peel/rewind, and/or power
rewind option(s) installed, clean the take label sensor as well.

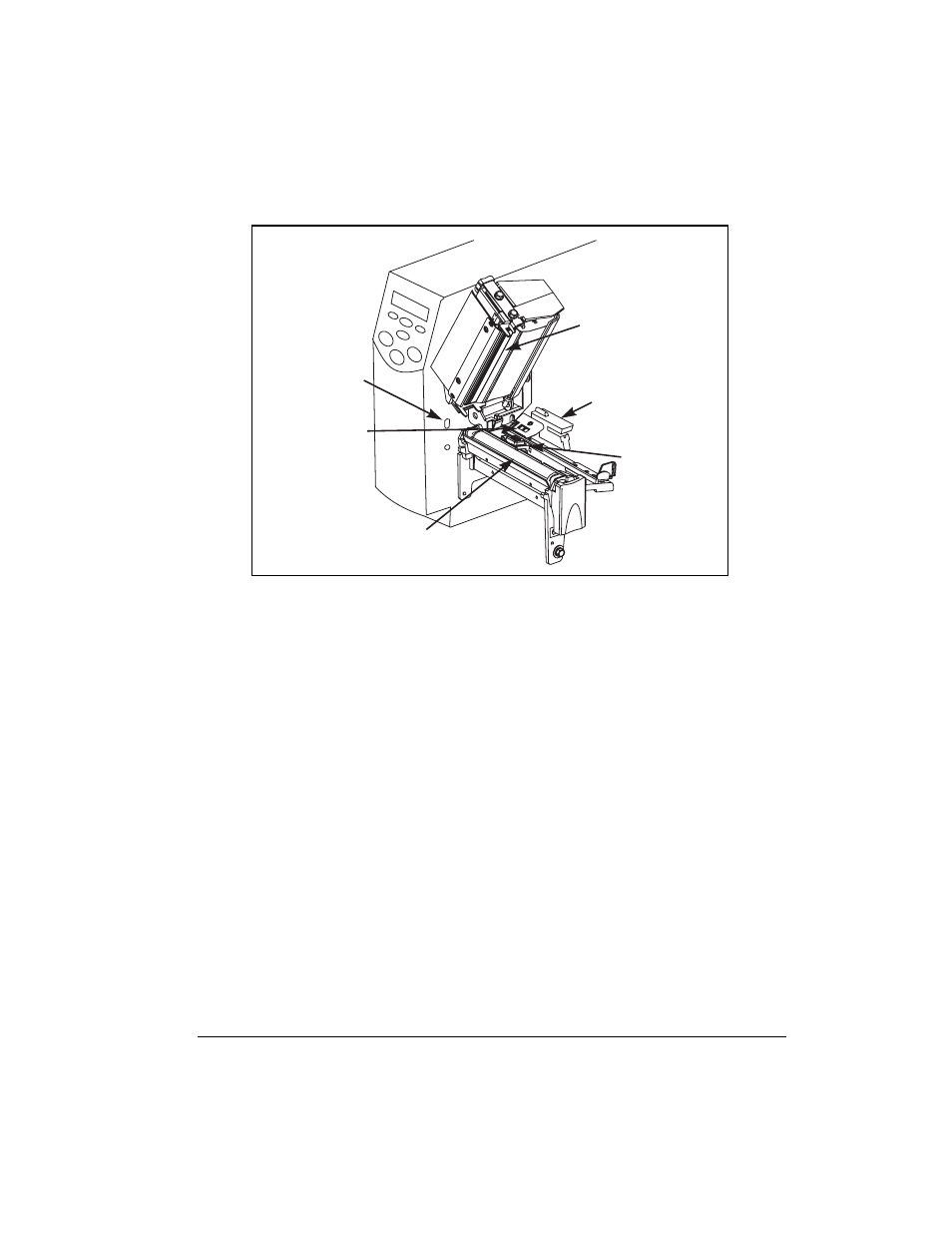

Figure 24
Printhead
Assembly
Transmissive
Sensor
Reflective
Sensor
Ribbon
Sensor
Take Label
Sensor
Platen Roller
