Zebra Z4M/Z6M Printers User’s Guide 23
&XWWHU 0RGH
(Cutter option required)
Refer to Figure 15.
1. Press the printhead open lever. The printhead assembly springs up.
2. Flip down the media supply guide.
3. Slide out the media guide as far from the printer frame as possible.
4. Place the roll of media on the media supply hanger and orient the media properly.
5. Flip up the media supply guide.
6. Slide in the media supply guide so that it just touches, but does not restrict, the
edge of the roll.
7. Feed the media under the dancer, through the slot in the transmissive sensor, under
the ribbon sensor, and through the cutter module.
8. Ensure that the media is against the back of the transmissive sensor. Then, slide in
the media guide so that it just touches, but does not restrict, the edge of the media.
9. Close the printhead assembly.
10.If the printer is paused (the PAUSE light is on), press the PAUSE key to enable
printing.

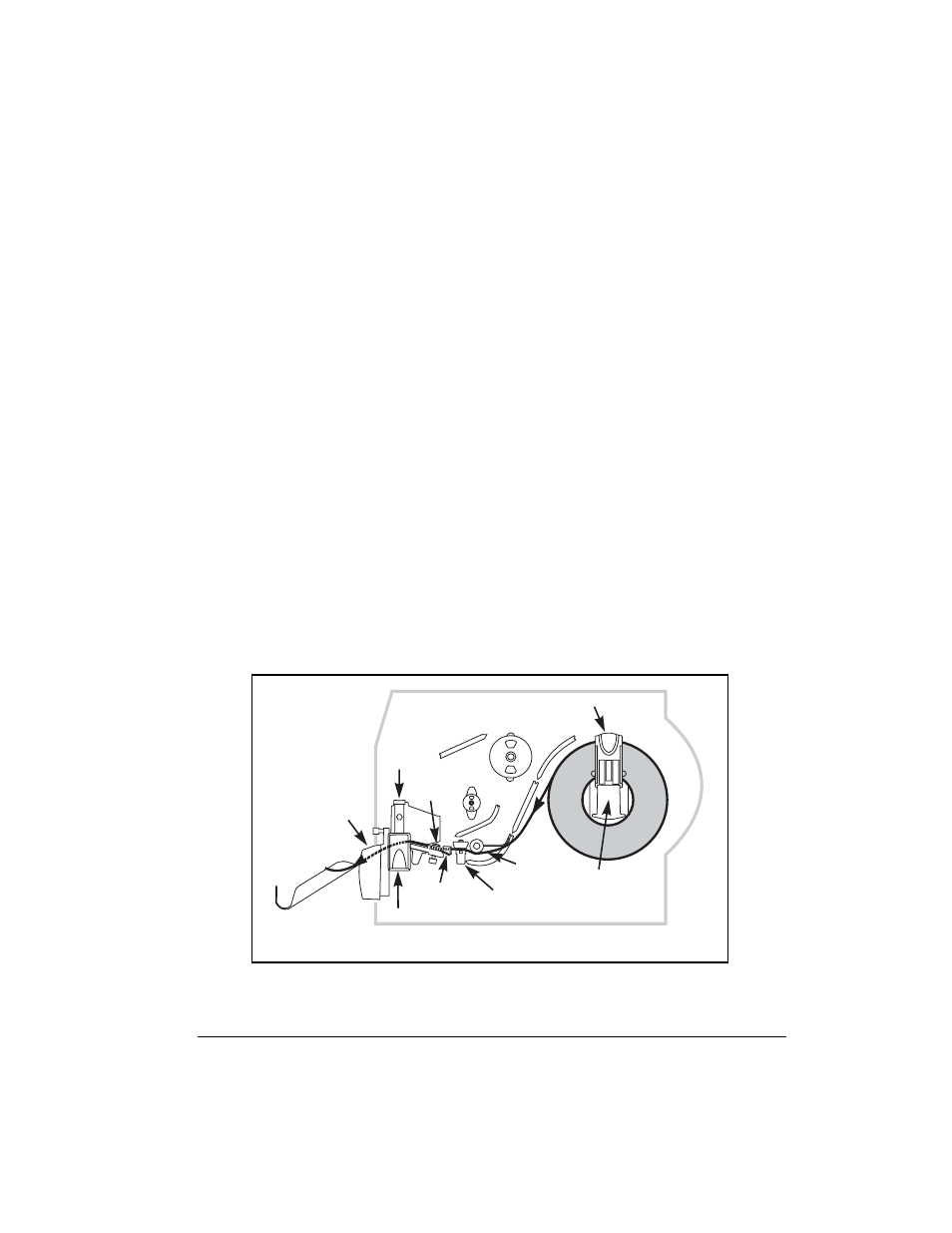

Figure 15
Printhead
Open
Lever
Printhead
Assembly
Media Supply Guide
Media
Guide
Media
Supply
Hanger
Dancer
Transmissive
Sensor
Ribbon
Sensor
Cutter
Module
