7.7 Port Setup
Use this screen to configure Switch port settings. Click Basic Setting > Port Setup in the
navigation panel to display the configuration screen.

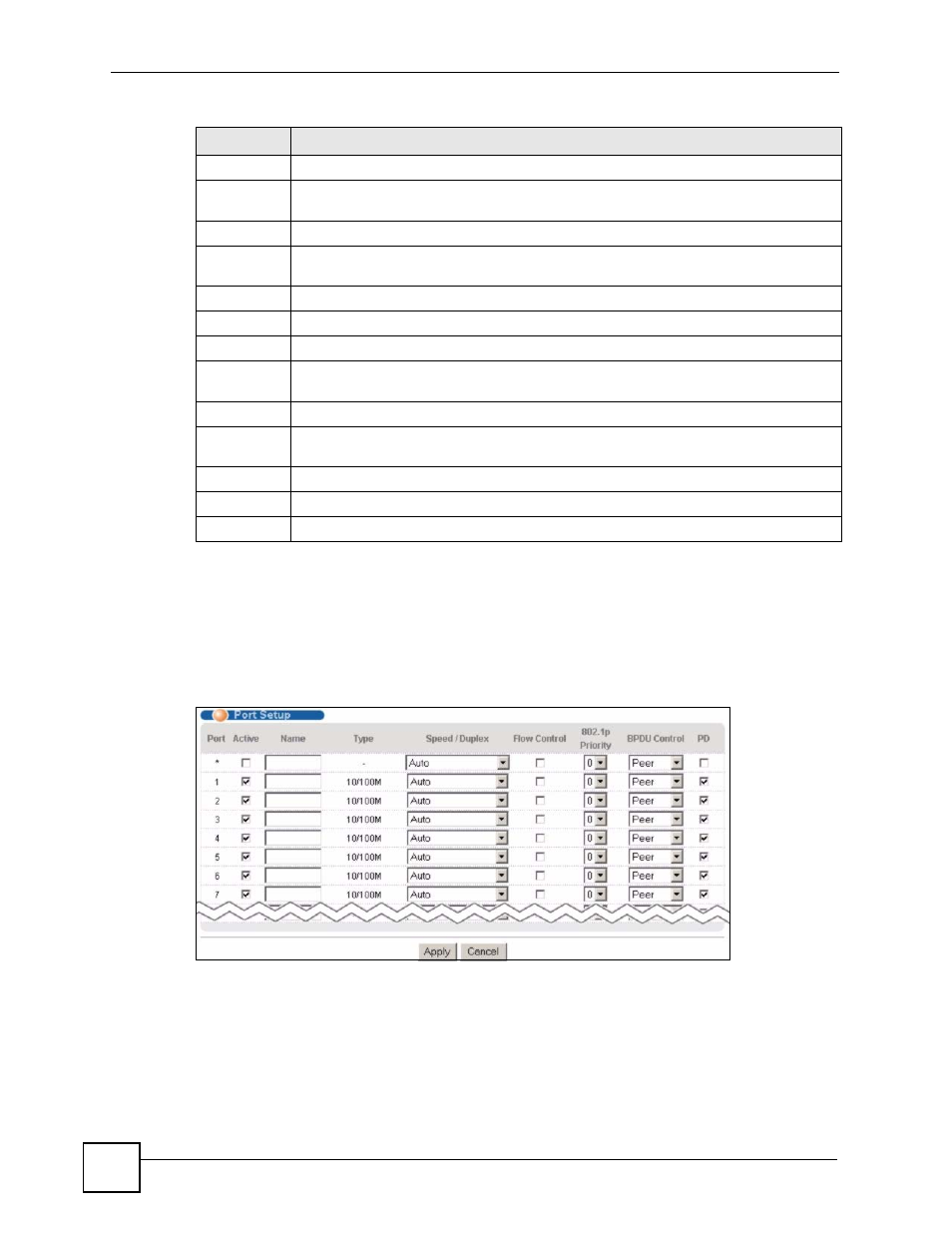

Figure 34 Basic Setting > Port Setup
VID Type the VLAN group identification number.
Default
Gateway
Enter the IP address of the default outgoing gateway in dotted decimal notation.
Manageable Select this option to allow the Switch to be managed using this specified IP address.
Add Click Add to save the new rule to the Switch’s run-time memory. It then displays in the
summary table at the bottom of the screen.
Cancel Click Cancel to reset the fields.
Index This field displays the index number of an entry. Click an index number to edit the rule.
IP Address This field displays the IP address.
IP Subnet
Mask
This field displays the subnet mask.
VID This field displays the VLAN identification number of the network.
Default
Gateway
This field displays the IP address of the default outgoing gateway.
Manageable This field displays whether the Switch can be managed using the specified IP address.
Delete Click Delete to remove the selected entry from the summary table.
Cancel Click Cancel to clear the Delete check boxes.
Table 12 Basic Setting > IP Setup (continued)
LABEL DESCRIPTION
