Chapter 16 Port Authentication
ES-3124 Series User’s Guide
135
16.2 Port Authentication Configuration
To enable port authentication, first activate the port authentication method(s) you want to use
(both on the Switch and the port(s)) then configure the RADIUS server settings in the Auth
and Acct > Radius Server Setup screen.
Click Advanced Application > Port Authentication in the navigation panel to display the
screen as shown.

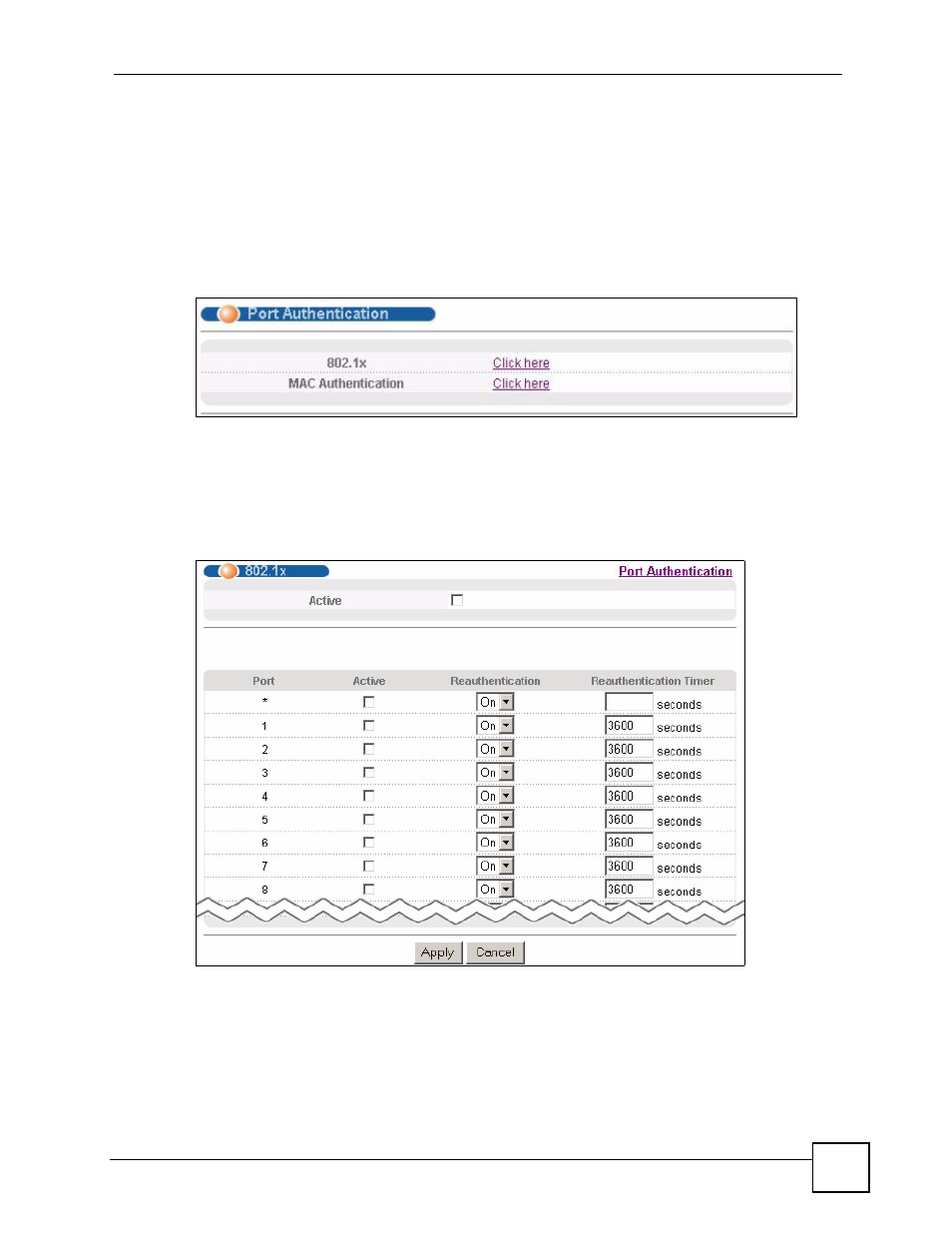

Figure 73 Advanced Application > Port Authentication
16.2.1 Activate IEEE 802.1x Security
Use this screen to activate IEEE 802.1x security. In the Port Authentication screen click
802.1x to display the configuration screen as shown.
Figure 74 Advanced Application > Port Authentication > 802.1x
