Chapter 6 System Status and Port Statistics
ES-3124 Series User’s Guide
63

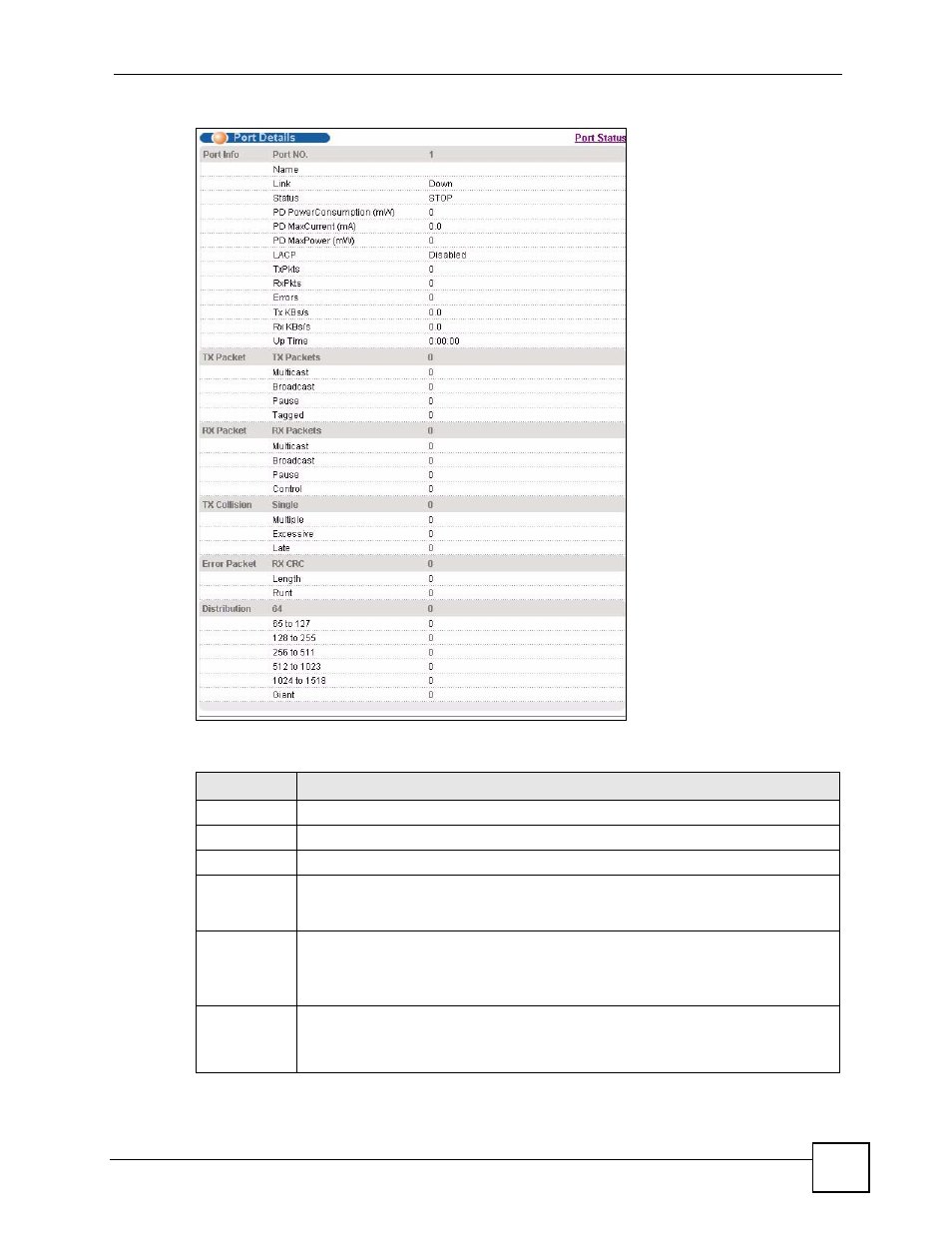

Figure 29 Status: Port Details
The following table describes the labels in this screen.
Table 8 Status > Port Details
LABEL DESCRIPTION
Port Info
Port NO. This field displays the port number you are viewing.
Name This field displays the name of the port.
Link This field displays the speed (either 10M for 10Mbps, 100M for 100Mbps or 1000M for
1000Mbps) and the duplex (F for full duplex or H for half duplex). It also shows the
cable type (Copper or Fiber).
Status If STP (Spanning Tree Protocol) is enabled, this field displays the STP state of the port
(see Section 11.1.3 on page 103 for more information).
If STP is disabled, this field displays FORWARDING if the link is up, otherwise, it
displays STOP.
PD
PowerCon
sumption
(mW)
This field is available for PWR models only and is not available for the Gigabit and
mini-GBIC ports.
This field shows the power consumption of the powered device connected to the port.
