ES-3124 Series User’s Guide

57

C

H A P T E R

5

Initial Setup Example

This chapter shows how to set up the Switch for an example network.

5.1 Overview

The following lists the configuration steps for the initial setup:

• Create a VLAN
• Set port VLAN ID
• Configure the Switch IP management address

5.1.1 Creating a VLAN

VLANs confine broadcast frames to the VLAN group in which the port(s) belongs. You can
do this with port-based VLAN or tagged static VLAN with fixed port members. In this
example, you want to configure port 1 as a member of VLAN 2.

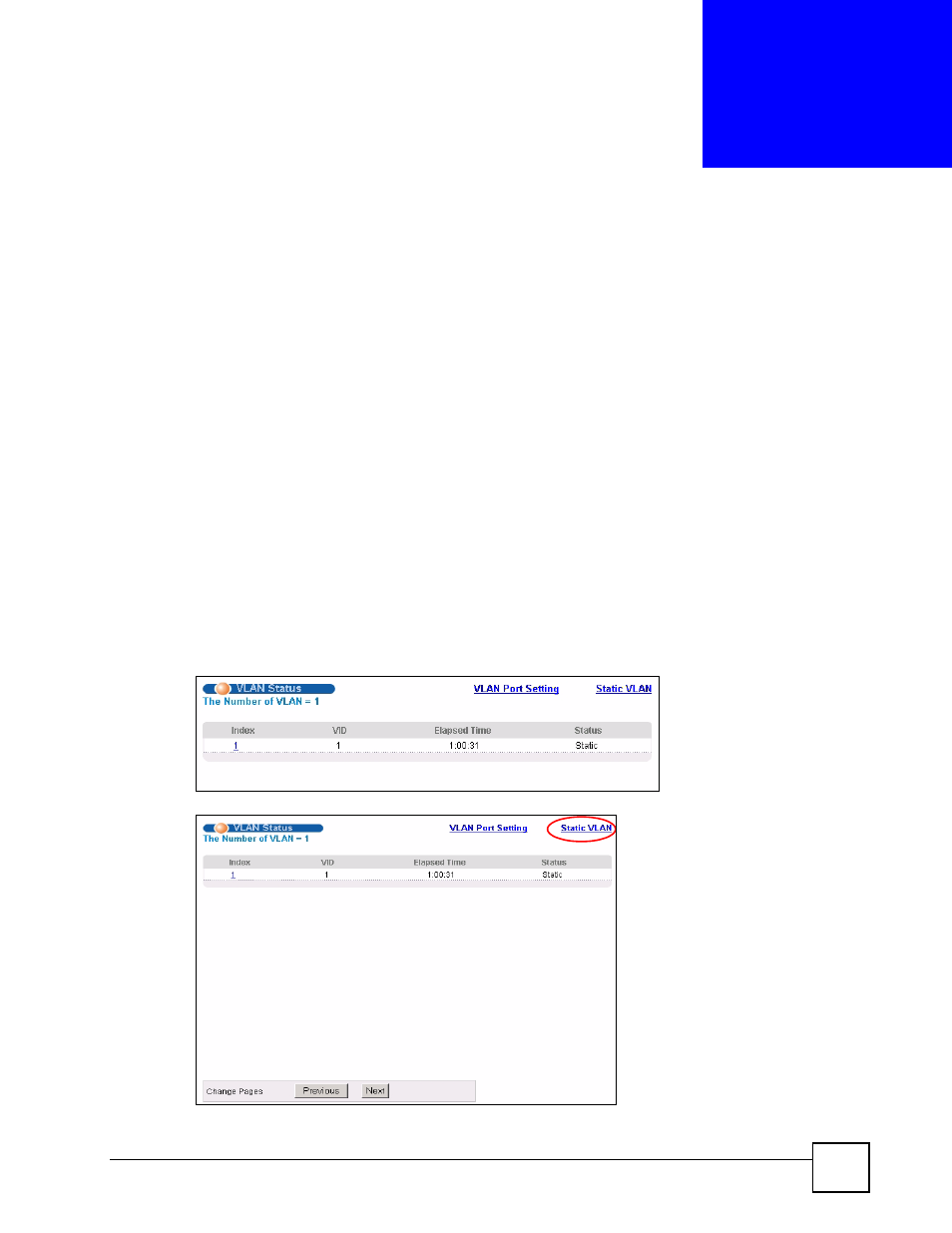

Figure 25 Initial Setup Network Example: VLAN

1 Click Advanced Application > VLAN > Static VLAN.
