Chapter 3 Hardware Overview
ES-3124 Series User’s Guide
39

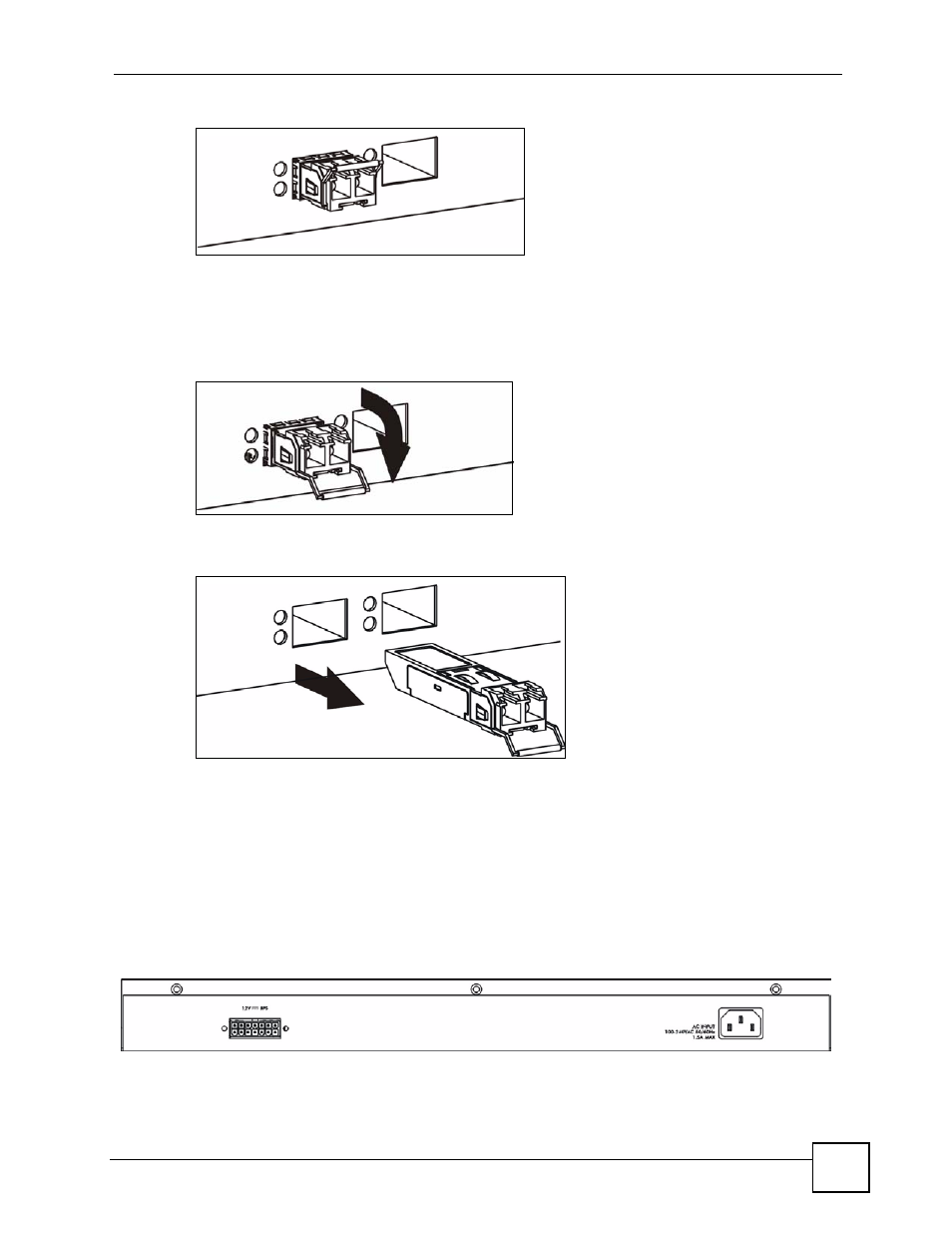

Figure 14 Installed Transceiver
3.1.3.2 Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module).
1 Open the transceiver’s latch (latch styles vary).
Figure 15 Opening the Transceiver’s Latch Example
2 Pull the transceiver out of the slot.
Figure 16 Transceiver Removal Example
3.2 Rear Panel
The following figure shows the rear panel of the Switch. The rear panel contains the connector
for external backup power supply (BPS), the power receptacle, and the power switch (DC
models only).
Figure 17 Rear Panel (AC models)
