Chapter 11 Spanning Tree Protocol
ES-3124 Series User’s Guide
111
11.6 Configure Multiple Rapid Spanning Tree Protocol
To configure MRSTP, click MRSTP in the Advanced Application > Spanning Tree
Protocol screen. See
Section 11.1 on page 101 for more information on MRSTP.

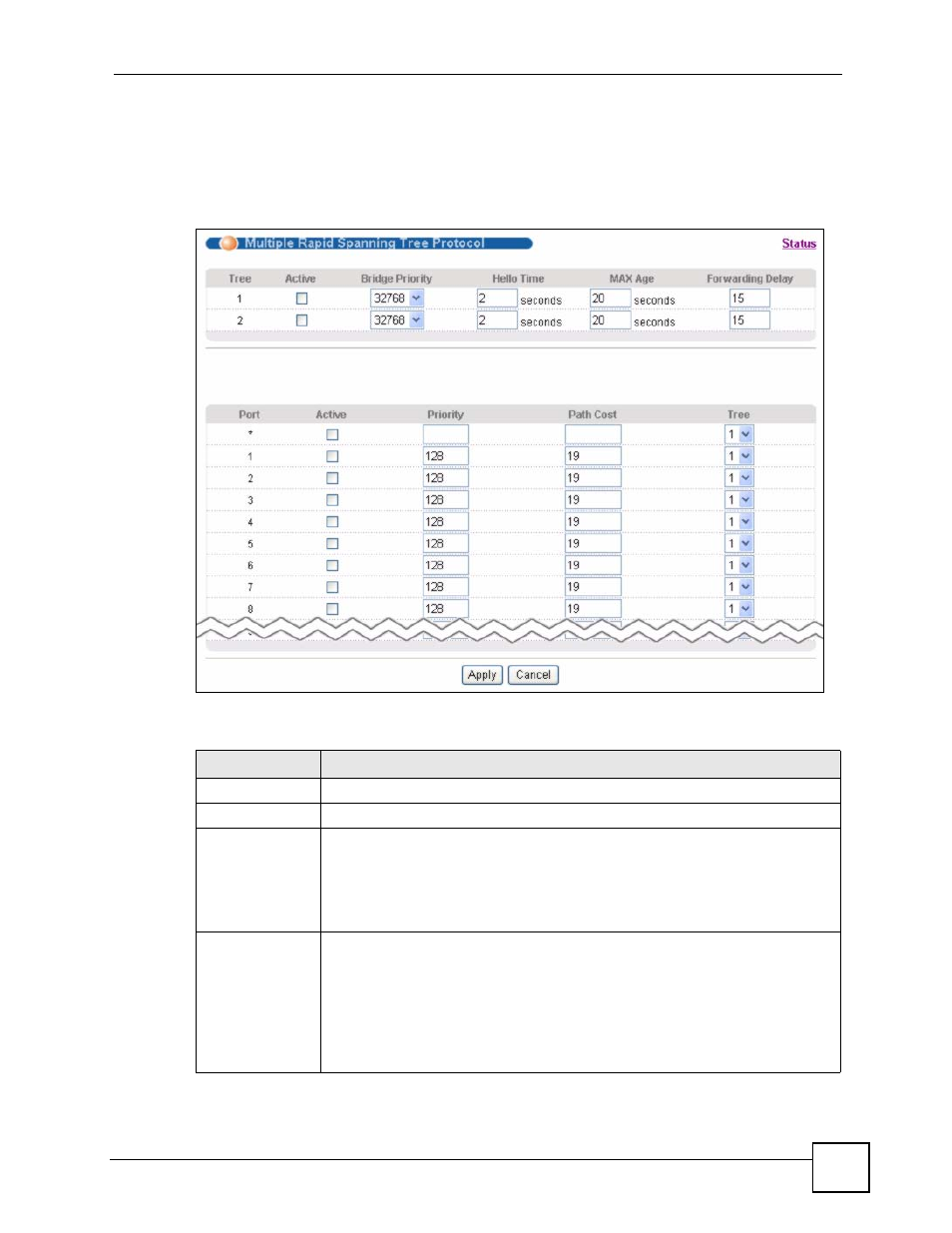

Figure 59 Advanced Application > Spanning Tree Protocol > MRSTP
The following table describes the labels in this screen.
Table 29 Advanced Application > Spanning Tree Protocol > MRSTP
LABEL DESCRIPTION
Status Click Status to display the MRSTP Status screen (see Figure 58 on page 110 ).
Tree This is a read only index number of the STP trees.
Active Select this to activate an STP tree. Clear this to disable an STP tree.
Note: You must also activate Multiple Rapid Spanning Tree in the
Advanced Application > Spanning Tree Protocol >
Configuration screen to enable MRSTP on the Switch.
Bridge Priority Bridge priority is used in determining the root switch, root port and designated port.
The switch with the highest priority (lowest numeric value) becomes the STP root
switch. If all switches have the same priority, the switch with the lowest MAC
address will then become the root switch. Select a value from the drop-down list
box.
The lower the numeric value you assign, the higher the priority for this bridge.
Bridge Priority determines the root bridge, which in turn determines Hello Time,
Max Age and Forwarding Delay.
