Connecting the Telephone Line
To install the link follow the procedures listed below.
NOTE
The on-line support link requires either a dedicated telephone line
or a PhoneShare Kit to share the line with up to three other devices.
The telephone line must be an analog telephone line (not a digital
telephone line).
1. Power off the machine. Connect one end of the phone cord to the
machine’s phone jack marked P4. This jack is located in the
recessed area at the lower rear of the machine.
2. Connect the other end of the cord to the telephone line that will
be used for the modem communications.
3. Power on the machine.
The machine will recognize the addition of this feature and prompt
you to confirm the new settings. Simply follow the instructions on
the Touch Screen to complete the programming.

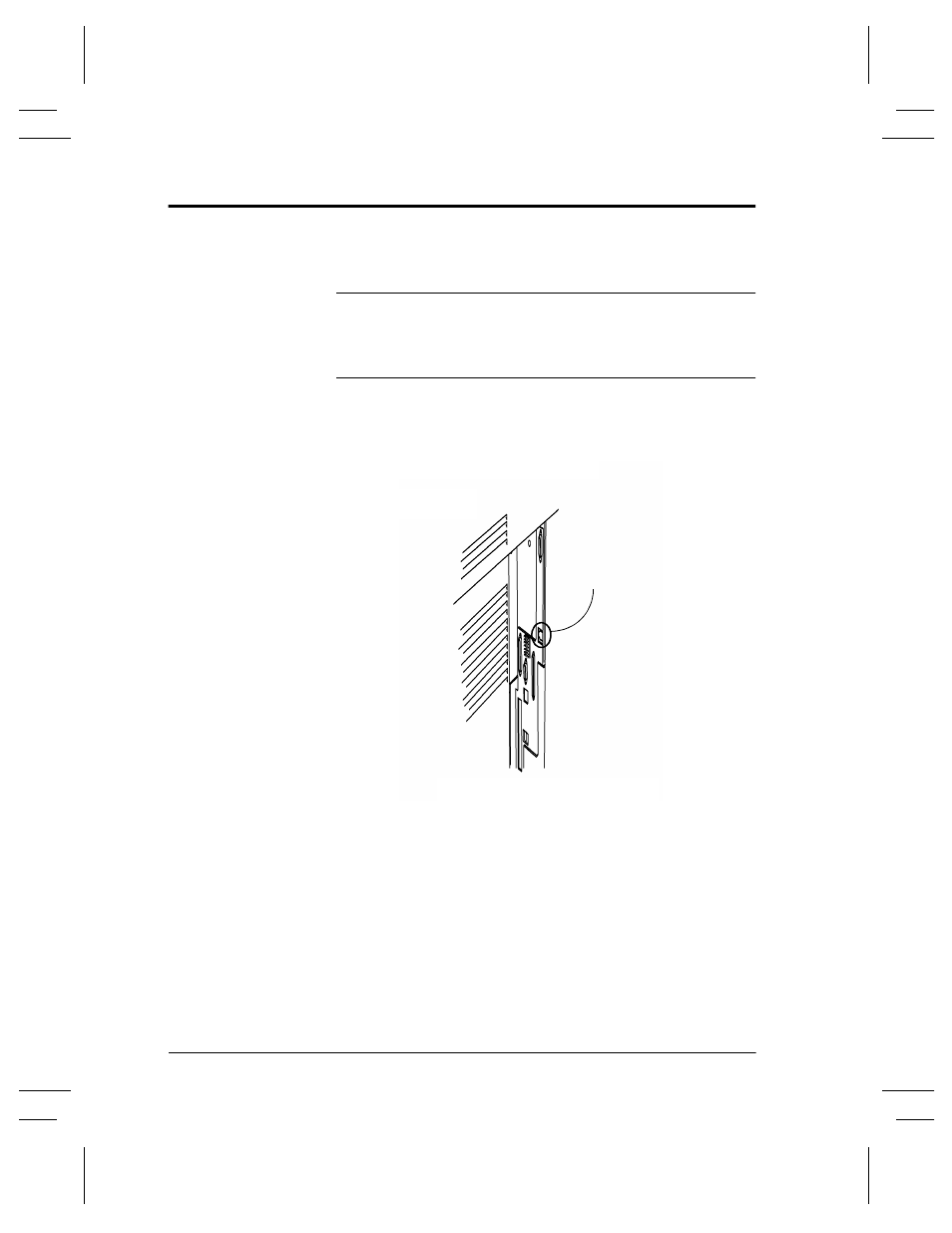

P4 Jack (RJ11) Location
Document Centre 480/470/460
