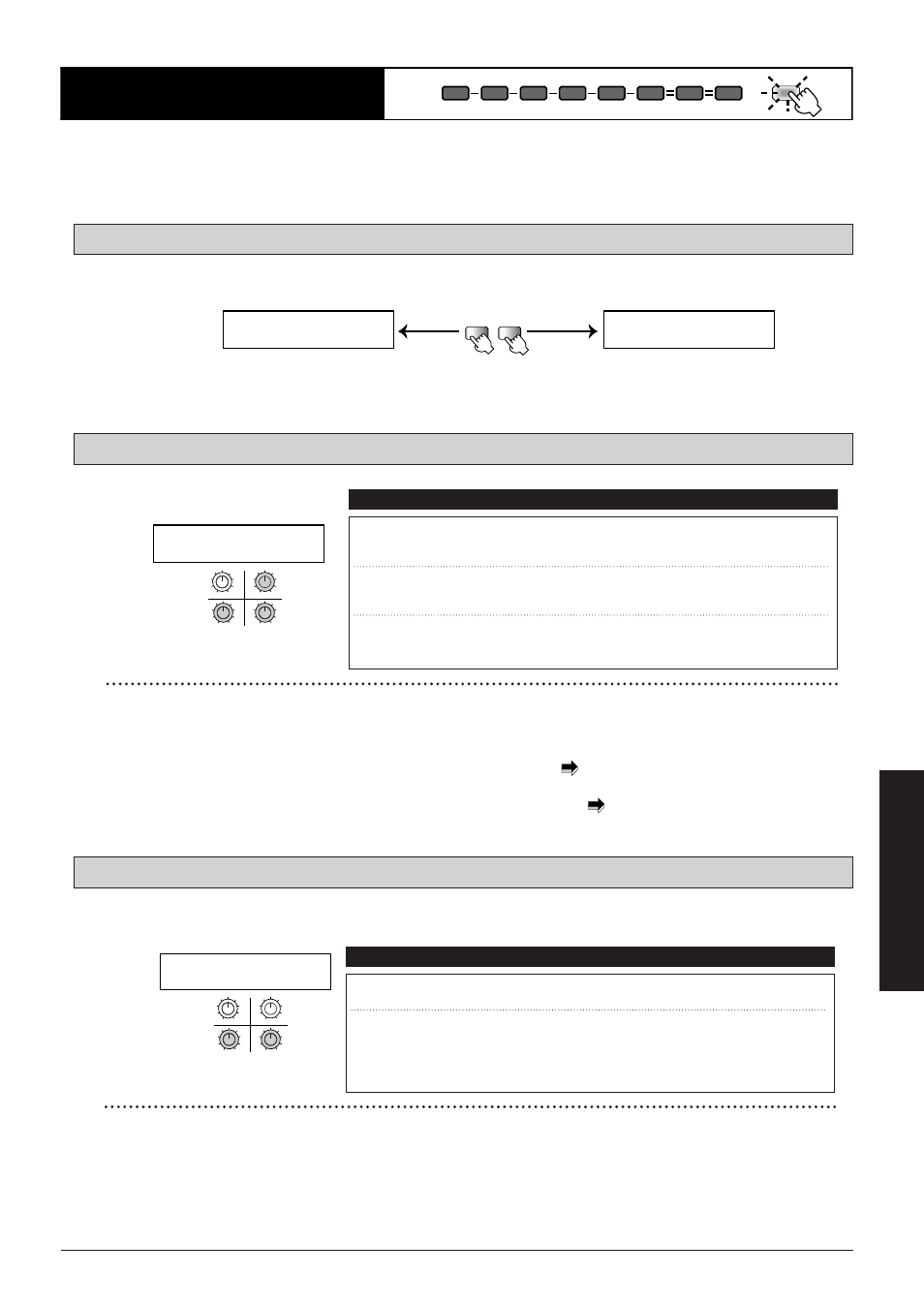

Strictly speaking, this module is not an effect module, but it serves for setting various parameters for the CONTROL
pedals and CONTROL switches. It also contains settings for the seamless function, for editing patch names and for other
parameters that affect all patches. The module has five pages which are switched with the UTILITY/PAGE key.
Determines whether the EFF2 and EFF3 modules are connected in series or parallel.
The seamless function lets the reverb or delay sound from the previous effect linger on when you switch effects, creating a
smooth transition without audible breaks.
Page 3: Seamless function settings
Page 2: CONTROL pedal and CONTROL switch settings
Page 1: Serial connection/parallel connection
63 ■
Effect
Types
and
Parameters
COMP EFF1 DIST EQ EFF2 EFF3 DLY REV TOTAL
TOTAL Module
Pressing the TYPE - key selects serial connection. "→" appears on the display.
Pressing the TYPE + key selects parallel connection. "❙❙" appears on the display.
q CSW (Control Switch) Sets the CONTROL switch module function. OFF, CMP, EF1,
DST, VOL,EF2,
EF3, DLY, REV
w CP1 (Control Pedal 1) Sets the CONTROL pedal 1 module function. OFF, CMP, EF1,
DST,VOL, EF2,
EF3, DLY, REV
e CP2 (Control Pedal 2) Sets the CONTROL pedal 2 module function. OFF, CMP, EF1,
DST,VOL, EF2,
EF3, DLY, REV
Parameters Comment Values
"VOL" is not the volume of a specific patch but the overall volume.
NO
✎
In principle, the CONTROL switches cannot be used to control the same effect module as CONTROL pedal 1 or CONTROL pedal 2. If several
controllers are set to the same module on this page, priority will be assigned in the order CP1, CP2, CSW when returning to the Play mode.
Only the controller with the highest priority is active and the others are set to "OFF" ( p. 27).
However, if the "CSW" parameter in the RTM page of the DLY module is set to a different item than the "RTM" parameter, the DLY module
can be assigned to CONTROL pedal 1 or 2 and the CONTROL switches at the same time. ( p. 27).
NO
✎
q TIM (SEAM Time) Sets the time until the reverberation subsides, in
100-ms steps.
OFF, 0.1 – 99
w CUV (SEAM Curve) The reverberation attenuation pattern can be set to
"LNR" (reverberation is cut when the time interval
set with the "TIM" parameter has elapsed) or
"HLD"(reverberation continues for the programmed
duration).
LNR, HLD
Parameters Comment Values
For reverb, the seamless function operates only if reverb in the newly selected module is off. If the programmed reverb time of the
patch is shorter than the time set with the "TIM" parameter, the programmed reverb time has priority.
NO
✎
SERIAL/PARALLEL:
1 EF2 å EF3 SERIAL/PARALLEL:
1 EF2 EF3 PAGE 1
TYPE – +
TYPE - / + Keys
Serial connection Parallel connection
| |
3 4
1 2
MAX MIN
MAX MIN MAX MIN
MAX MIN
q
w e
CONTROL SET: CSW=
2 CP1= CP2=
PAGE 2 q
w e
3 4
1 2
MAX MIN
MAX MIN MAX MIN
MAX MIN
q w
SEAMLESS FUNCTION:
3 TIM= CUV= PAGE 3
q w
