12.4 Private LAN Configuration

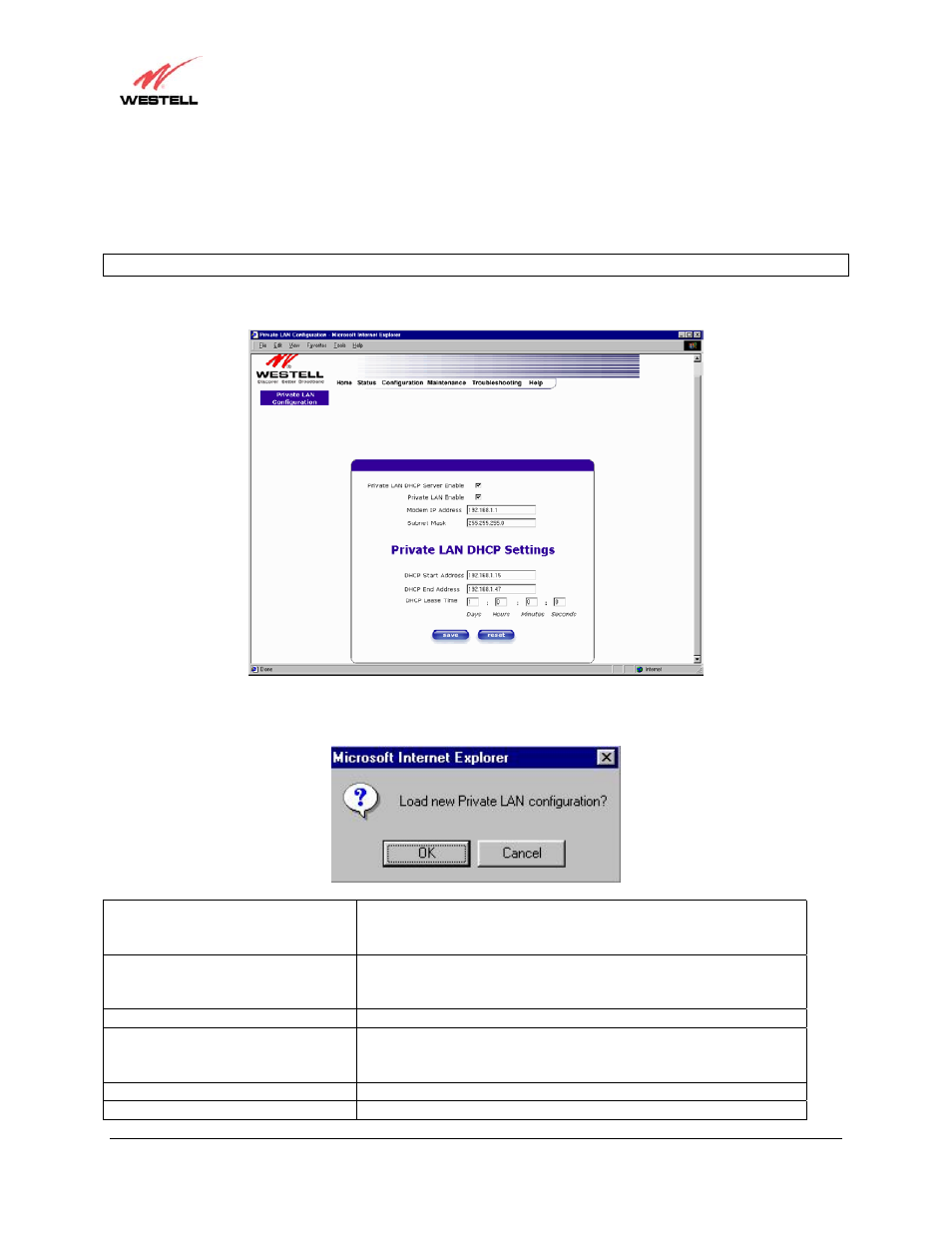

The following settings will be displayed if you select Private LAN Configuration from the Configuration menu.
(Private LAN is the default configuration for this Router.)
NOTE: Private LAN allows you to set up a network behind your Router.
If you change the settings in this screen, click on save. If you click on reset, the changes will not take effect.
If you made changes and clicked on save, the following pop-up screen will be displayed. Click on OK. This will
save your Private LAN Configuration settings. If you click Cancel, your new settings will not take effect.
Private LAN DHCP Server Enable Default = CHECKED
If this box is CHECKED, it enables DHCP addresses to be served
from the Private LAN pool.
Private LAN Enable Default = CHECKED
If this box is CHECKED, it enables the addresses from the Private
LAN to use the NAT interface.
Modem IP Address Displays the Router’s IP address
Subnet Mask Displays the Subnet Mask, which determines what portion of an IP
address is controlled by the network, and which portion is controlled
by the host.
DHCP Start Address Displays the first IP address that the DHCP server will provide.
DHCP End Address Displays the last IP address that the DHCP server will provide.
