11. STATUS
11.1 Connection Summary

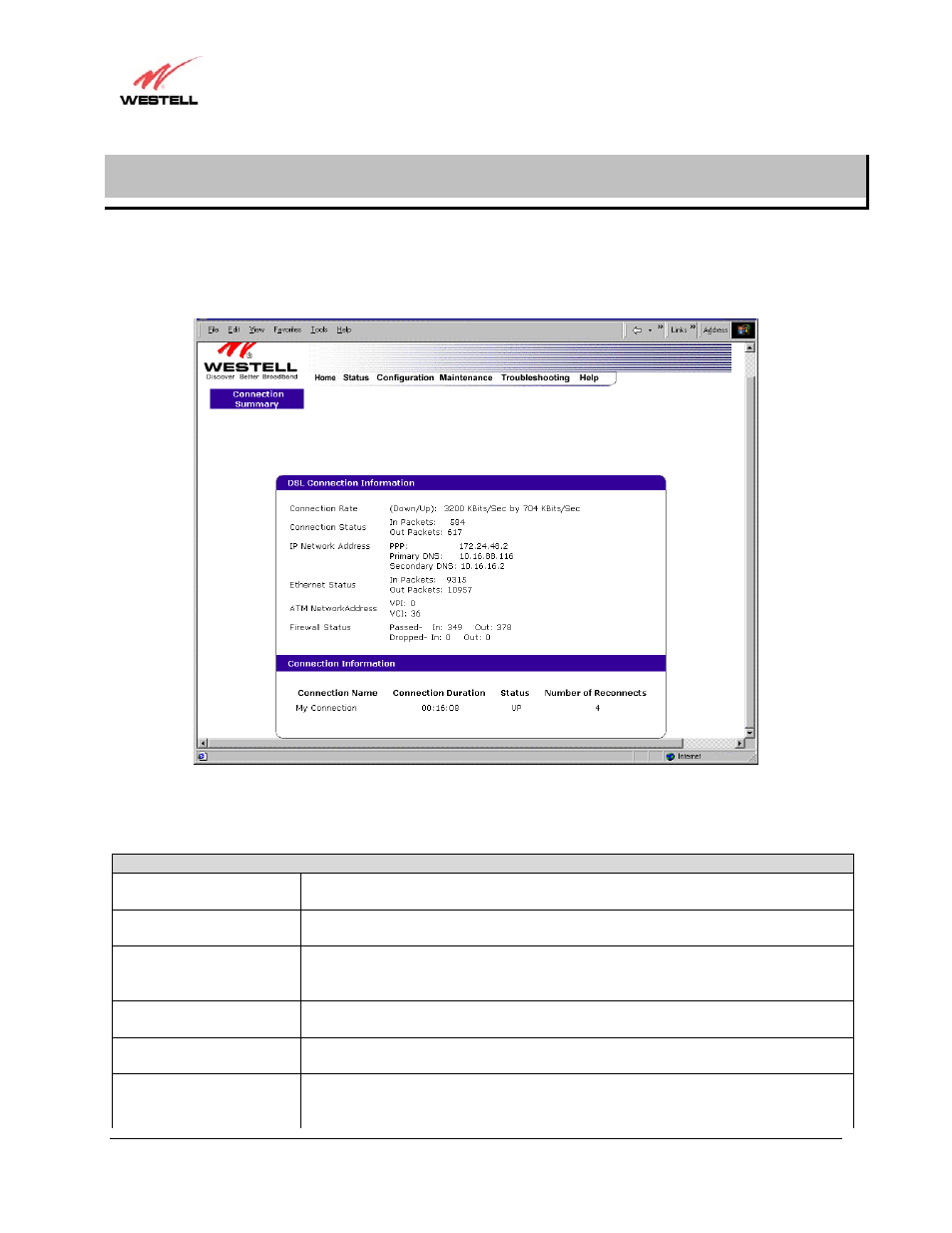

The following settings will be displayed if you select Connection Summary from the Status menu.
DSL Connection Information
Connection Rate This field will let you know if you have a DSL Sync (UP/DOWN) and the DSL rate
at which you are connected.
Connection Status This field will display how much information was received (IN) or sent (OUT) in
packets.
IP Network Address PPP = An IP address identifies your device on the Internet
Primary DNS = Provided by your Service Provider
Secondary DNS = Provided by your Service Provider
Ethernet Status This field will display your Ethernet information that was received (IN) or sent
(OUT) in packets on your Ethernet port.
ATM Network Address This field will display your VPI and VCI values, which are provided by your Internet
Service Provider.
Firewall Status This field will display your firewall traffic in packets.
Passed: Monitors information traffic that was successfully received (IN) or
The actual information displayed in this screen may vary.
