5.5 LED Indicators
The LED indicators are used to verify the unit’s operation and status. LED states are described in Table 1.
Table 1. LED States and Descriptions (Model x90-220015-04)
LED State Description
Solid Green Power ON
POWER
No Light No Power
Slow Flashing Green Power ON and waiting for carrier detect signal
(1 flash/sec)
Moderate Flashing Green Power ON and attempting synchronization
(2 flashes/sec)
Solid Green Power ON and synchronized with ADSL line card
Steady Red (less than 20 sec.) Hardware power-up in process
Flashing Yellow Modem failed self-diagnostics
Solid Yellow Modem is in safe boot mode
DSL
No Light No Power
Solid Green Ethernet link established
Flashing Green Transmit or Receive Activity ETHERNET
No Light No link established
Solid Green USB link established
Flashing Green Transmit or Receive Activity USB
No Light No USB link established
5.6 Cable Connectors and Switch Locations
The following items are located on the rear panel of the Router. See Figure 3. Tables 2 through 5 list the connector
types and pinout designations.
• DSL Connector (RJ-11)
• USB Connector
• ON/OFF Switch
• Power Connector
• Reset Button
• Ethernet Connector (RJ-45)

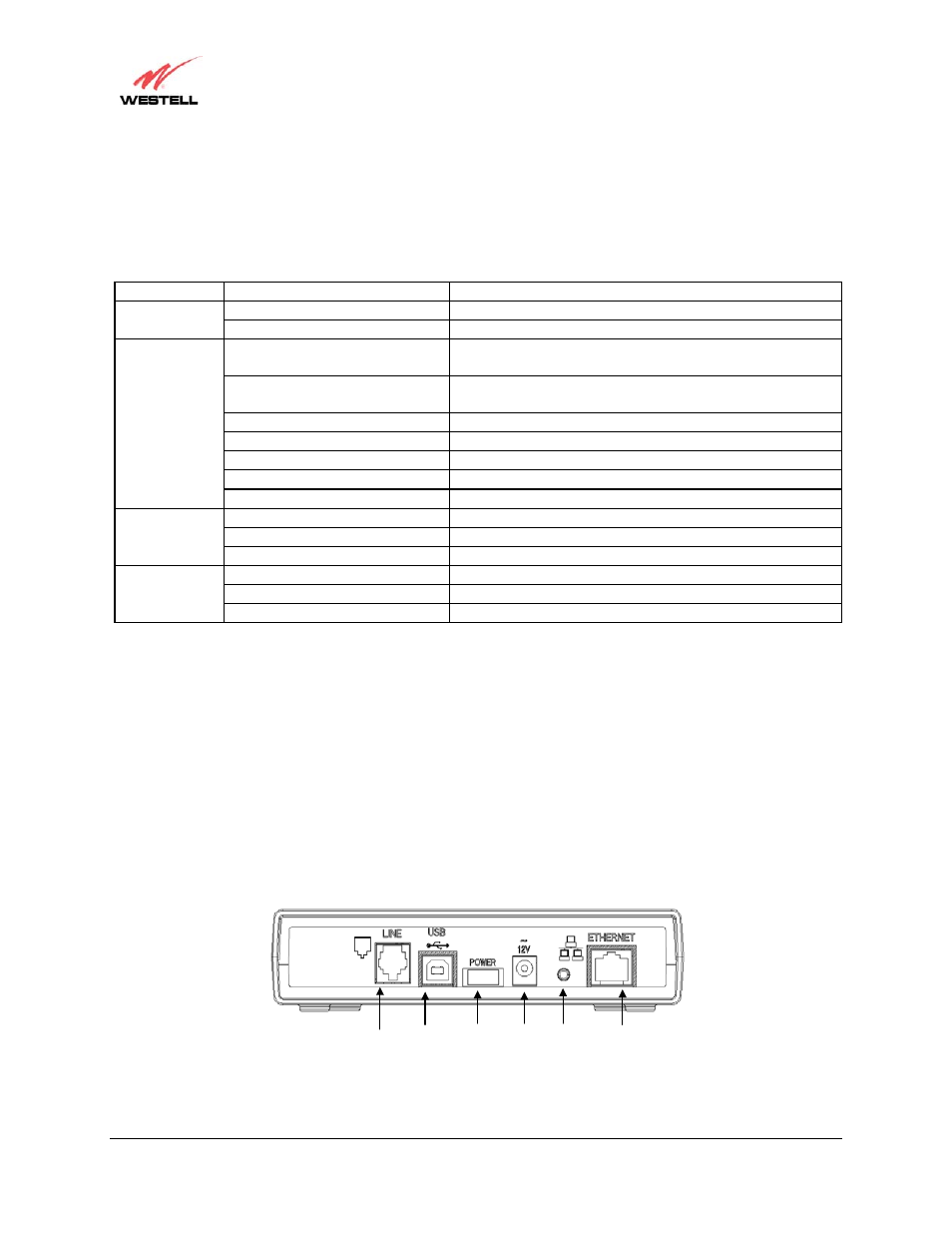

Figure 3. Dual Connect NAT Router Rear Panel (Model x90-220015-04)
DSL Line
Connector Power
Connector
Ethernet
Connector
USB
Connector
Reset
Button
ON/OFF
Switch
