29
���������
������
�������������
��������������
���������
��������
����������������������������
��
��������
�� ��
������������������
��� � � �
� � � �
� � �
� � �
�
� � �
��
��
��
��
��
��
��
��
�� �� ��
��
�� �� ��
��
33. DVD 7.1 Channel Surround Sound input jacks - Connect a player with 5.1 or 7.1 digital surround sound audio outputs
here.
34. ZONE2 Pre Out L/R RCA jacks - Connect to a second mixer or receiver to output ZONE2. This output will play which-
ever input channel ZONE2 is set to play. The ZONE 2 channel allows you to output any of the analog input channels to a
different location to be played simultaneously with the main zone. This is common for home entertainment setups that
have different things playing in different rooms at the same time.
NOTE: Zone 2 does not include any of the digital input channels: optical, coaxial, 7.1 surround sound.
35. OPT1 Digital Optical Audio input - Digital optical audio input for the OPT1/DVD input channel. Connect here using
a digital optical cable. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the
OPT1 input channel.
NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA, S-
Video or Component) that is on the DVD input channel.
36. OPT2 Digital Optical Audio input - Digital optical audio input for the OPT2/AUX1 input channel. Connect here using
a digital optical cable. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the
OPT2 input channel.
NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA, S-
Video or Component) that is on the AUX1 input channel.
37. COAX1 Digital Coaxial Audio input - Digital Coaxial audio input for the COX1/DVD input channel. Connect here using
a digital coaxial cable. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the
COX1 input channel.
NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA, S-
Video or Component) that is on the DVD input channel.
38. COAX2 Digital Coaxial Audio input - Digital Coaxial audio input for the COX2/AUX1 input channel. Connect here using
a digital coaxial cable. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the
COX2 input channel.
NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA, S-
Video or Component) that is on the AUX1 input channel.
39. COAX3 Digital Coaxial Audio input - Digital Coaxial audio input for the COX3/AUX2 input channel. Connect here using
a digital coaxial cable. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the
COX3 input channel.
NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA, S-
Video or Component) that is on the AUX2 input channel.
40. 8 Ω & 4Ω Impedance Selector switch - Switches between 8Ω & 4Ω output.
Descriptions and Functions

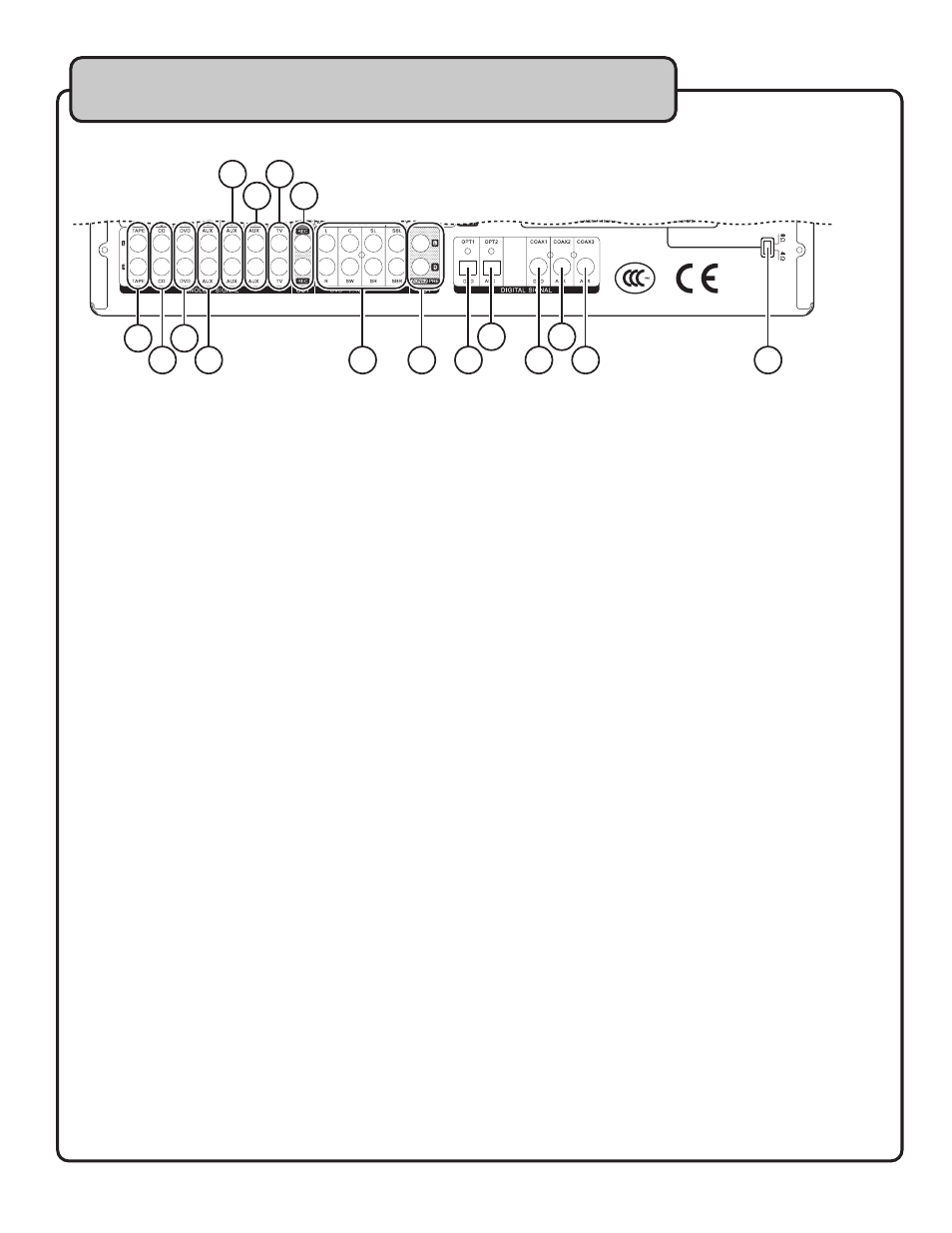

Rear Panel
