25. TAPE L/R Stereo RCA inputs - Stereo RCA inputs for the TAPE input channel. Connect here using stereo RCA audio

(red & white) cables. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the

Tape input channel.

26. CD L/R Stereo RCA inputs - Stereo RCA inputs for the CD input channel. Connect here using stereo RCA audio (red &

white) cables. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the CD input

channel.

27. DVD L/R Stereo RCA inputs - Stereo RCA inputs for the DVD input channel. Connect here using stereo RCA audio

(red & white) cables. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the

DVD input channel.

NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA, S-

Video or Component) that is on the DVD input channel.

28. AUX1 L/R Stereo RCA inputs - Stereo RCA inputs for the AUX1 input channel. Connect here using stereo RCA audio

(red & white) cables. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the

AUX1 input channel.

NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA, S-

Video or Component) that is on the AUX1 input channel.

29. AUX2 L/R Stereo RCA inputs - Stereo RCA inputs for the AUX2 input channel. Connect here using stereo RCA audio

(red & white) cables. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the

AUX2 input channel.

NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA, S-

Video or Component) that is on the AUX2 input channel.

30. AUX3 L/R Stereo RCA inputs - Stereo RCA inputs for the AUX3 input channel. Connect here using stereo RCA audio

(red & white) cables. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the

AUX3 input channel.

NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA or S-

Video) that is on the AUX3 input channel.

31. TV L/R Stereo RCA inputs

- Stereo RCA inputs for the TV input channel. Connect here using stereo RCA audio (red &

white) cables. When using a player that is connected to these inputs, make sure the DTX-9909K is set to the TV input

channel.

NOTE: If a player’s audio is connected to this input, make sure its video is connected to a video input (RCA or S-

Video) that is on the TV input channel.

32. Record Out L/R RCA jacks - Connect to a recording device, powered speakers, or any device with RCA L/R inputs.

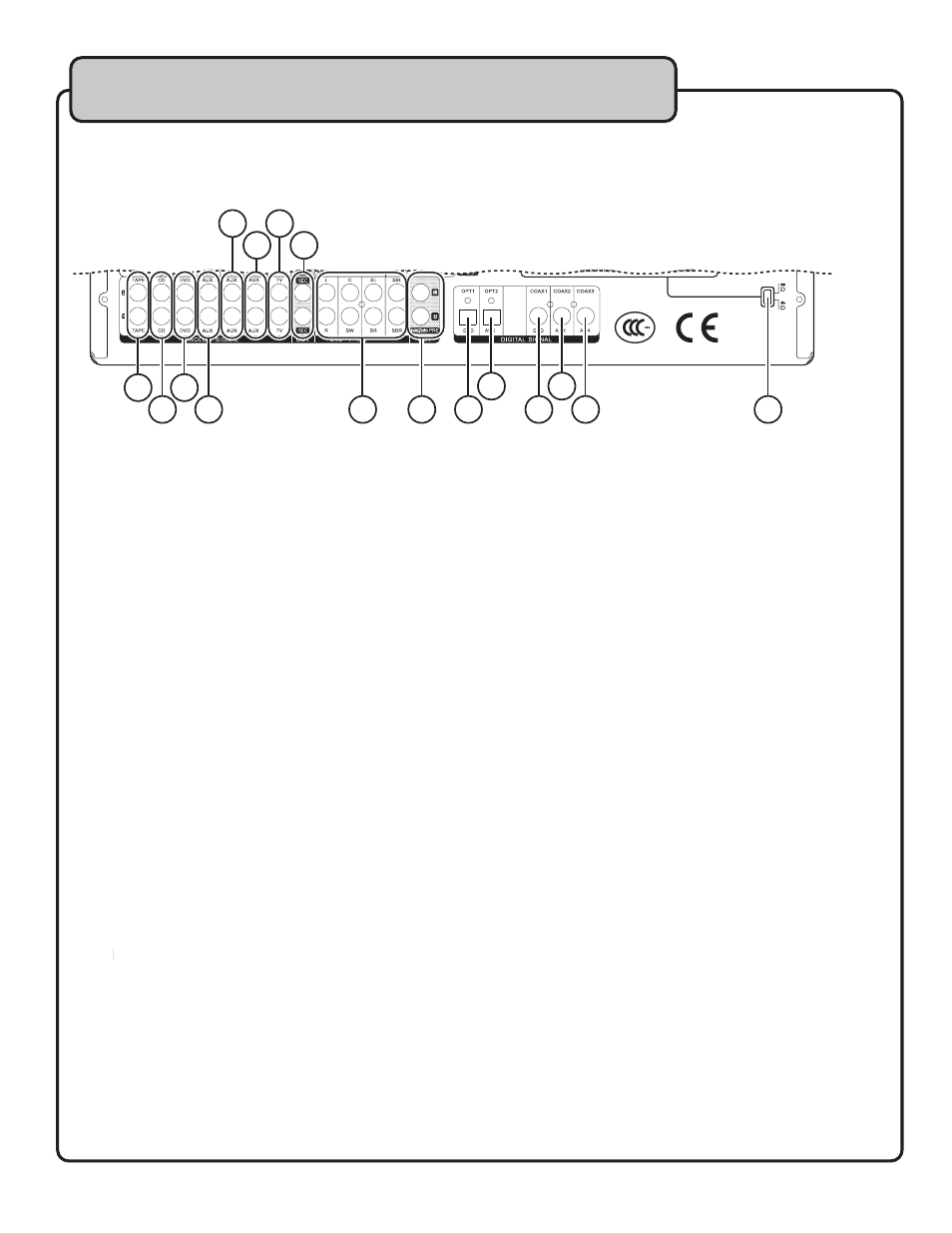

Descriptions and Functions

Rear Panel
