Getting connected cont – VocoPro DTX-9909K User Manual

Page 13

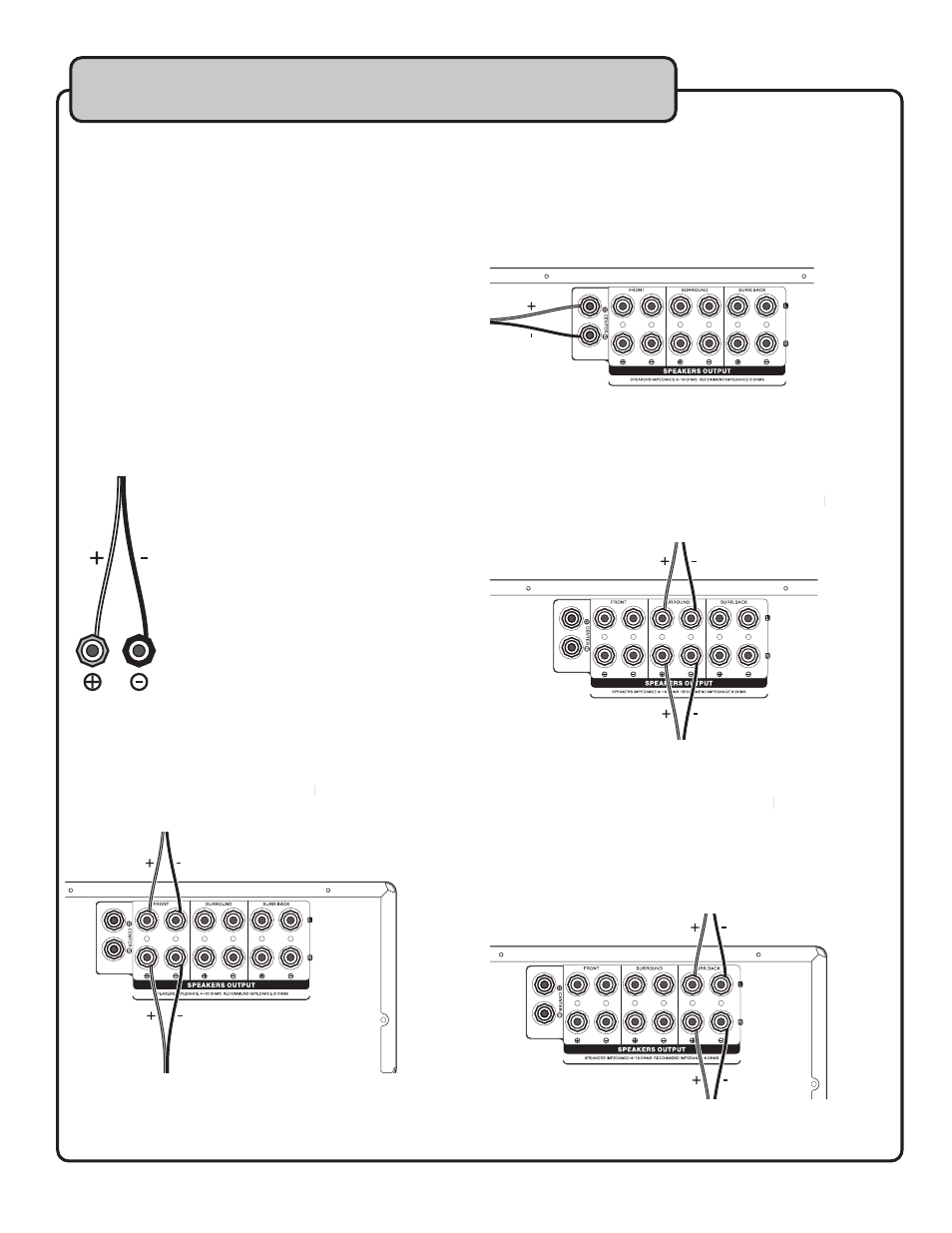

Determining the proper way to connect the speaker

cables:

The speaker cable is a pair of insulated cables running side

by side. One cable is colored or shaped differently , perhaps

with a stripe, groove or ridges.

1. Connect one end of the striped (grooved, ridged, etc.)

cable to the “+” (red) terminal on the rear panel of the

DTX-9909K.

2. Connect the other end of the striped (grooved, ridged,

etc.) cable to the “+” (red) terminal on the speaker.

3. Connect one end of the “plain” (NO stripes, grooves,

ridges, etc.) cable to the “--” (black) terminal on the rear

panel of the DTX-9909K.

4. Connect the other end of the “plain” (NO stripes, grooves,

ridges, etc.) cable to the “--” (black) terminal on the

speaker

��

Connecting to the FRONT speaker terminals:

Connect a pair of front-positioned speakers to the “+” and “--”

FRONT terminals on the rear panel of DTX-9909K f

r panel of

ollowing

steps 1-5 on page 12.

��

Connecting to the CENTER speaker terminals:

Connect a center-positioned speaker to the “+” and “--”

CENTER terminals on the rear panel of DTX-9909K f

r panel of

ollowing

steps 1-5 on page 12.

��

Connecting to the SURROUND speaker terminals:

Connect a pair of surround-positioned speakers to the “+”

and “--” SURROUND terminals on the rear panel of DTX-

r panel of

9909K following steps 1-5 on page 12.

��

Connecting to the SURROUND BACK speaker termi-

SURROUND BACK

nals:

Connect a pair of rear surround speakers to the “+” and “--”

SURR BACK terminals on the rear panel of DTX-9909K f

r panel of

ol-

lowing steps 1-5 on page 12.

��

Getting Connected cont.
