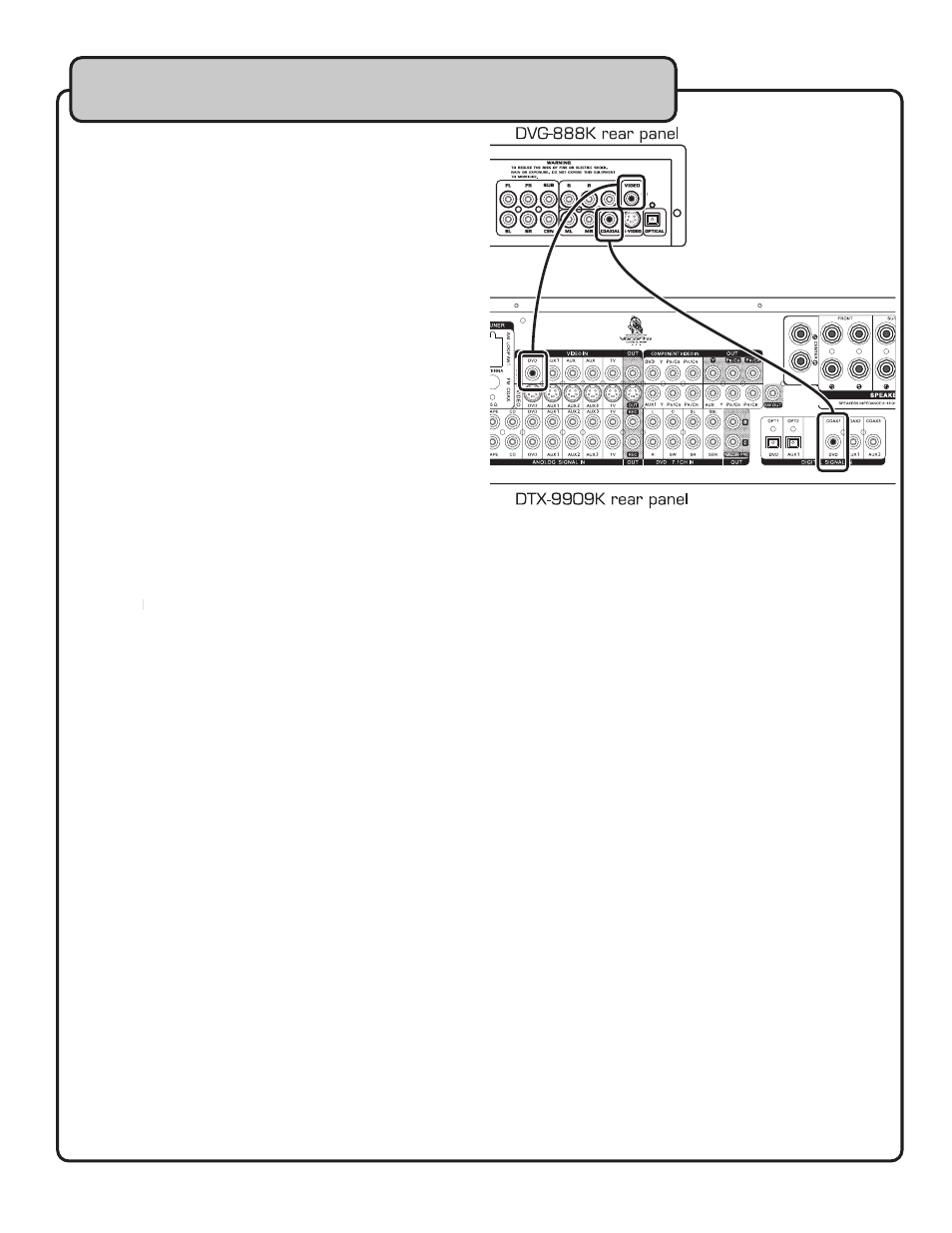

Connecting a Player with Digital Coaxial Audio Out-

puts

There are 3 Digital Coaxial audio inputs on the DTX-9909K

rear panel: COAX1, COAX2 and COAX3.

What you will need

• Player with a Digital Coaxial output

• Digital Coaxial cable

1. Connect one end of the Coaxial cable to the Coaxial audio

output on the player

2. Connect the other end of the Coaxial cable to either of the

Coaxial inputs on the DTX-9909K rear panel

3. Select the proper input channel on the DTX-9909K.

Select the DVD input channel for COAX1, the AUX1

input channel for COAX2 and the AUX2 input channel for

COAX3

NOTE: Make sure the player’s video is also con-

nected to the correct input channel

Matching up the Correct Video Input

COAX1/DVD: When connecting a player’s audio to the

COAX1 input, make sure that player’s video is connected

to one of the video inputs on the DVD input channel.
COAX2/AUX1

: When connecting a player’s audio to the

COAX2 input, make sure that player’s video is connected

to one of the video inputs on the AUX1 input channel.
COAX3/AUX2: When connecting a player’s audio to the

COAX3 input, make sure that player’s video is connected

to one of the video inputs on the AUX2 input channel.

Selecting the correct input channel:

Front panel: Press the INPUT button on the DTX-9909K

front panel until the correct input channel is displayed on

the screen
Remote Control: Press the corresponding input button on

the remote control to access the correct input channel.

i.e. TAPE/COX1 button for the COAX1 input channel, the

CD/COX2 button for the COAX2 input channel and the

AUX2/COX3 button for the COAX3 input.
