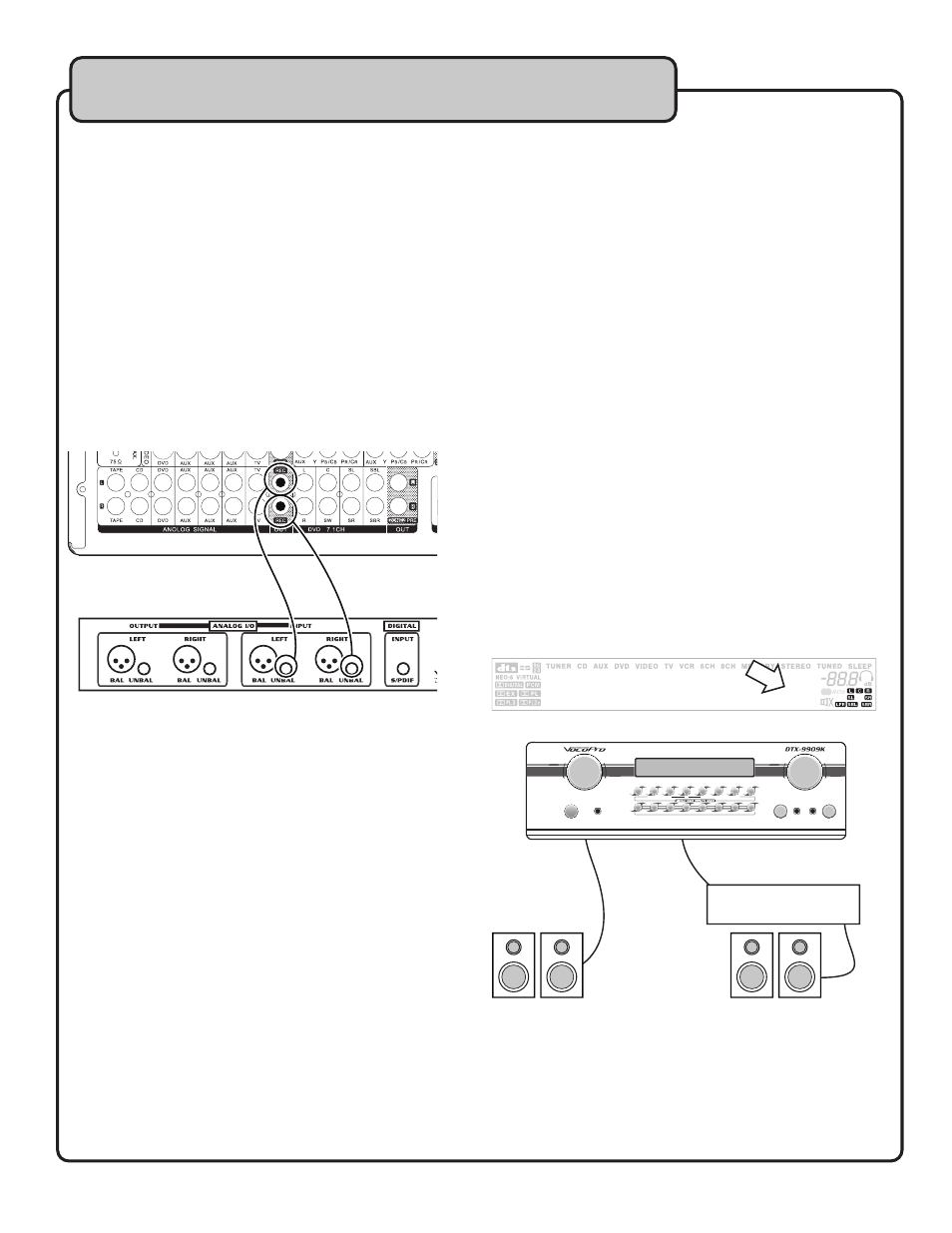

Connecting to the REC OUT jacks

The L/R (red and white) RCA Record Output jacks on the

rear panel can be connected to any self-powered input device

with RCA inputs. (i.e. recording device, powered speakers,

etc)

What you will need:

• Powered device with L/R RCA inputs

• RCA L/R audio cable (red & white)

1. Connect one end of the red and white RCA cable to the

REC OUT jacks on the DTX-9909K’s rear panel

2. Connect the other end of the red and white RCA cable to

the RCA inputs on the recording device, powered speak-

ers, etc.

��

��
��

��

��

��

��

�

��

Connecting to the ZONE2 PRE jacks

The ZONE 2 channel allows you to output any of the analog

input channels to a different location to be played simultane-

ously with the main zone. This is common for home enter-

tainment setups that have different things playing in different

rooms at the same time.

NOTE: Zone 2 does not include any of the digital

input channels: optical, coaxial, 7.1 surround

sound.

The L/R (red and white) RCA ZONE2 PRE output jacks on

the rear panel can be connected to any self-powered input

device with RCA inputs. (i.e. recording device, powered

speakers, etc)

What you will need:

• Powered device with L/R RCA inputs

• RCA L/R audio cable (red & white)

1. Connect one end of the red and white RCA cable to the

ZONE2 PRE output jacks on the DTX-9909K’s rear panel

2. Connect the other end of the red and white RCA cable to

the RCA inputs on the recording device, powered speak-

ers, etc.

3. Press the ZONE2 button on the front panel to enter

Zone2 to make changes. The number 2 will appear in the

display indicating that Zone2 is open.

��

��
��
��
��

Getting Connected cont.
