S ETUP
Connecting Cables
26 NURIT 8400 I NSTALLATION G UIDE
Connecting
Cables
The NURIT 8400 has the following model-dependent ports to facilitate different
types of cabling connections:
• Telephone Line Connection
• External Telephone Connection
• Ethernet Connection
• External PIN Pad Connection
• RS232 Connection

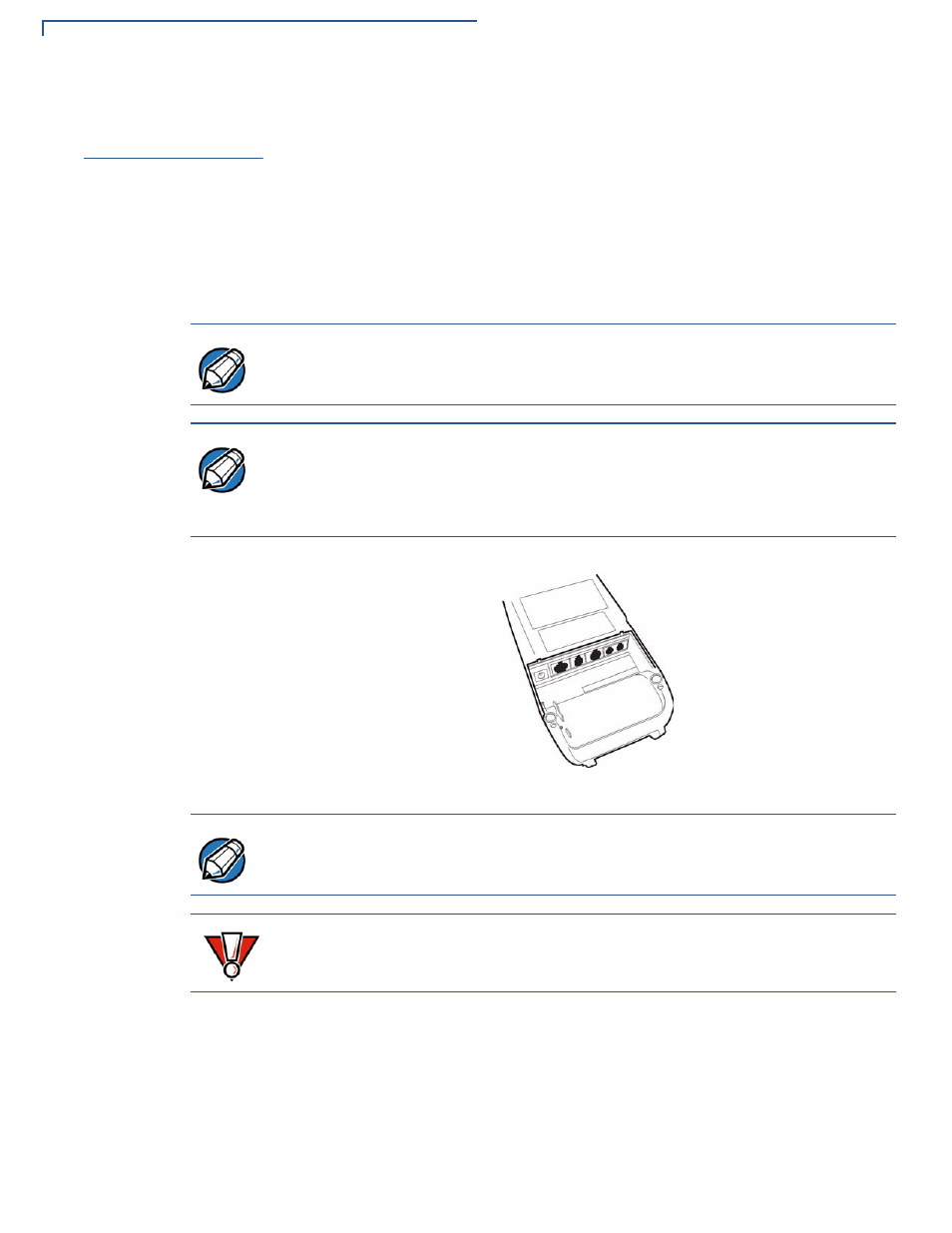

Figure 18 NURIT 8400 Connections
NOTE You can connect peripheral devices to the NURIT 8400. Consult with your
VeriFone service provider for information about the peripheral devices that you
can connect to your specific model.
NOTE • The LINE , PHONE , and ETH are all model dependent connection ports.
• Peripheral devices may require special adapter cables for their connection to the
NURIT 8400. In addition, certain peripheral devices require an external power supply.
• Refer to the product documentation of the specific peripheral devices, or contact your
local VeriFone representative or service provider for further details.
NOTE Figure 18 is for illustration purposes only. Terminal connection configurations are
model dependent. Always check the connection label, to know which port you are
using.
CAUTION • Turn off the POS terminal, and any peripheral devices whenever you connect or
disconnect the NURIT 8400.
• Do not disconnect the NURIT 8400 from an external device when it is processing data.
