Opening and Closing Compartment Covers
16 NURIT 8400 I NSTALLATION G UIDE
2 Insert the two hinges of the battery pack/card compartment cover into the
hinge slots on the edge of the battery pack/card compartment.
3 Close the compartment cover and press down until the locking tab snaps into
place.
To remove the cable
compartment cover
1 Place the NURIT 8400 face down on a soft, smooth surface, so as not to
damage the LCD screen.
2 Release the cable compartment cover by placing a finger in the compartment
recess.
3 Squeeze and lift the cover, detaching it from the terminal.

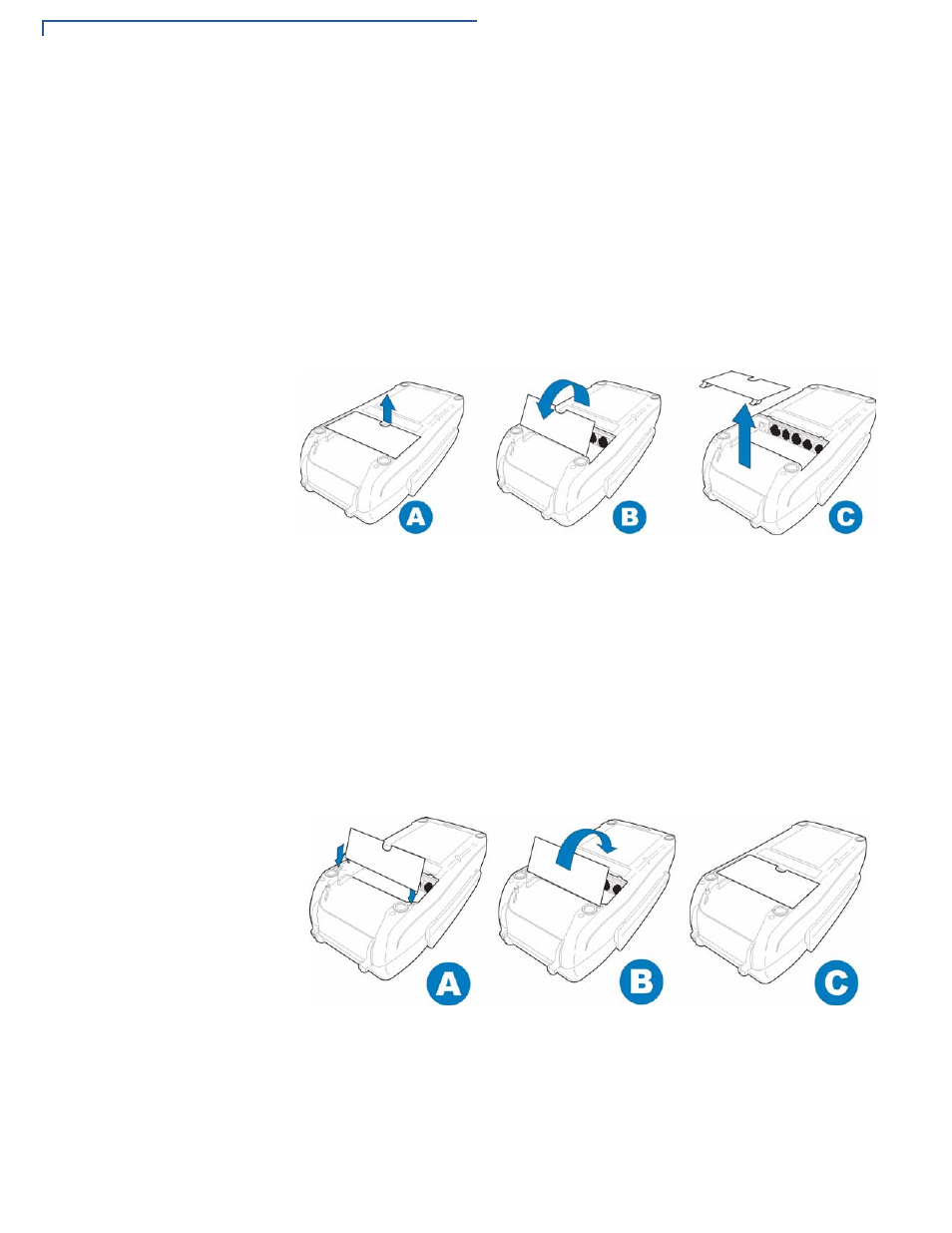

Figure 6 Removing the Cable Compartment Cover
To replace the cable
compartment cover
1 Place the NURIT 8400 face down on a soft, smooth surface, so as not to
damage the LCD screen.
2 In one hand, gather the cables together.
3 With the other hand, insert the two tabs at the back of the cable compartment
cover, on an angle into the tab grooves on the terminal.
4 Lower the cable compartment cover, with the gathered cables under the
interconnection cable guide.
5 Close the compartment cover, pushing down until the tabs snap into place.
Figure 7 Closing the Cable Compartment Cover
