Installing SAM and SD Cards
NURIT 8400 I
NSTALLATION
G
UIDE
17
Installing SAM
and SD Cards
Configuration of SAM and SD cards are model dependent. You can install up to
four SAM cards or an SD card with up to two SAM cards in the NURIT 8400
terminal, depending on the particular model.
Depending on your model of the NURIT 8400 terminal, the card compartment may
be shared with a battery pack. To gain access to the battery pack/card
compartment, you must first remove the battery pack/card compartment cover.
For information on removing and replacing the battery pack/card compartment
cover, see
Opening and Closing Compartment Covers
To install a SAM card
1
Remove the battery pack/card compartment cover. See
.
2
If necessary, remove the battery pack. See
3
Slide the locking-clasp in the direction indicated by the engraved arrow to the
OPEN
position.
4
Lift the cardholder on its hinge to a vertical position.
5
Hold the SAM card vertically, with the beveled corner at the top edge and the
metallic contacts facing towards the contacts on the reader.
6
Slide the card into the cardholder.

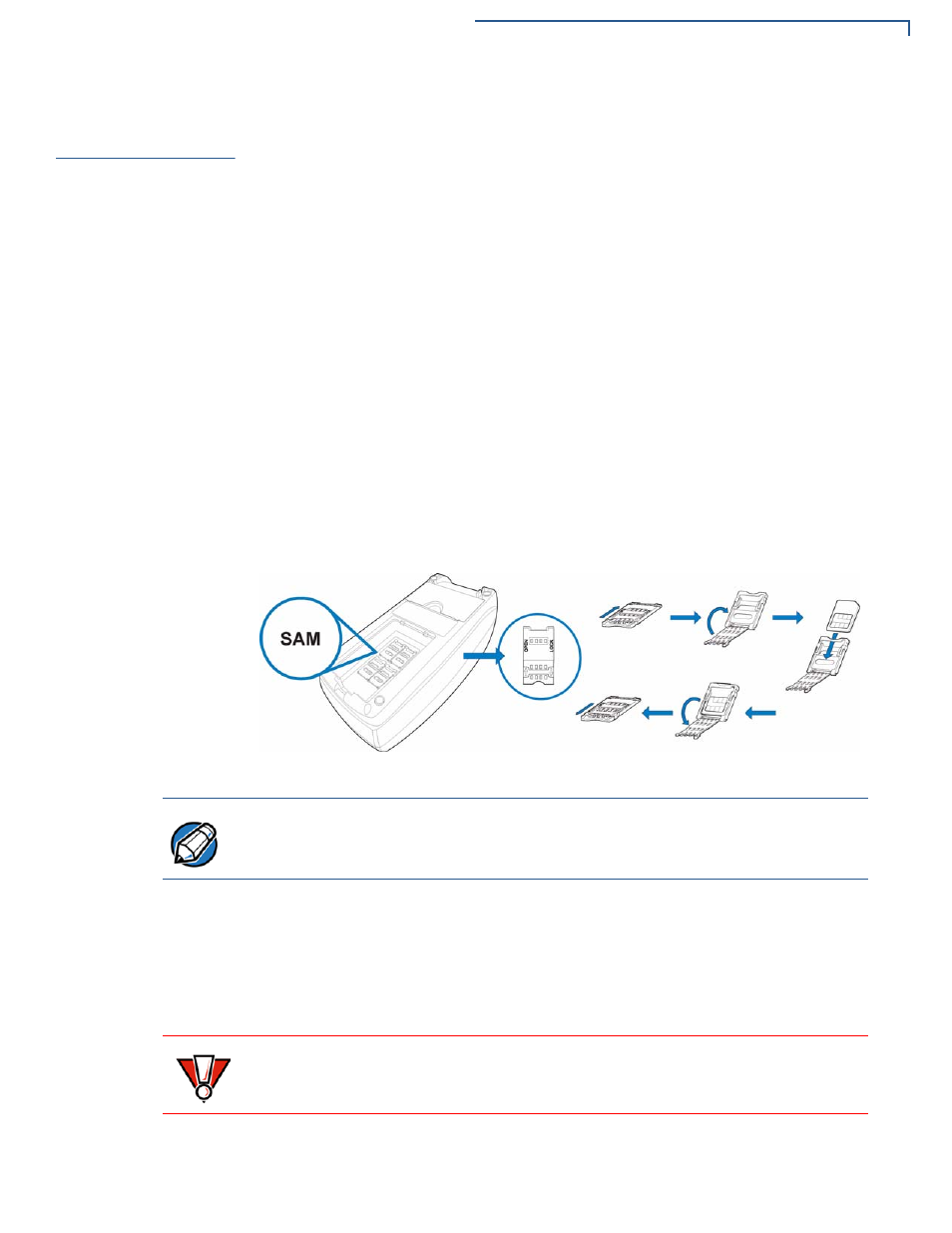

Figure 8
Opening a Cardholder and Installing a SAM Card
7
Lower the SAM cardholder onto its base. Check that the corner of the SAM
card is not obstructed by the triangular protrusion at the corner of the
cardholder base.
8
Lock the SAM cardholder by sliding the cardholder locking clasp to the
LOCK
position.
NOTE
Make sure that you first slide the end closest to the chip on the card into the
grooves of the holder and that the beveled corner is on the top edge of the SAM
card.
CAUTION
Do not bend or scratch the contacts of the SAM cardholder when installing or
removing cards.
