APPENDIX - REPLA
CING OVEN C
OMPONENT
S
Item Part Number Hardware Description Hardware Part
Number(s)
Air Filter HCT-4067 None None
Back Panel HCT-4105 Screw, #10-32 x .5, PPH, INT Tooth, SS 101460 (x2)
Chain, Conveyor HCT-4143 None None
Chainguard, Left HCT-4038 None None
Chainguard, Right HCT-4041 None None
Channel HCT-4076 Screw, SH MTL, #8 x 1/2 Serrated PHTRH 101688 (x4)
Conveyor, Single HCT-4140 Chain, #35, 52 Links, With Master Link, Endless HCT-4143
Conveyor, Split Belt 50/50 HCT-4096 Chain, #35, 52 Links, With Master Link, Endless HCT-4143 (x2)
Conveyor, Split Belt 70/30 HCT-4115 Chain, #35, 52 Links, With Master Link, Endless HCT-4143 (x2)
Cooling Fan TC3-0433
Nut, KEPS Hex, #6-32, EXT Tooth, CRES
Screw, SH MTL, #8 x 1/2 Serrated PHTRH 102961 (x4)
101688 (x4)
Crumb Tray HCT-4045 None None
Eyelid HCT-4028 Screw, Thumb w/W HD, #1/4-20x1/2”, SS 101752 (x2)
Finger Guard 100086 None None
Gear Motor Cover HCT-4142 Nut, #10-32, SERR HEX FLNG, SS 100903 (x4)
Hanger HCT-4148 Screw, SH MTL, #8 x 1/2 Serrated PHTRH 101688 (x4)
Hatch HCT-4209 Screw, Thumb w/W HD, #1/4-20x1/2”, SS 101752 (x2)
Hatch Latch 100777 Screw, SH MTL, #8 x 1/2 Serrated PHTRH 101688 (x3)
Heater, Back HCT-4161 Screw, SH MTL, #8 x 1/2 Serrated PHTRH 101688 (x22)
Heater, Front HCT-4162 Screw, SH MTL, #8 x 1/2 Serrated PHTRH 101688 (x22)
Heater Cover HCT-4032 Screw, SH MTL, #8 x 1/2 Serrated PHTRH 101688 (x14)
Jetplate HCT-4099 None None
Keypad HHC-1234 None None
Leg 100785 None None
Plenum HCT-4020 None None
Power Cord Retainer I5-9211 Screw, SH MTL, #8 x 1/2 Serrated PHTRH 101688 (x2)
Shelf Tray HCT-4050 None None
Support, Top Plenum HCT-4169 Screw, SH MTL, #8 x 1/2 Serrated PHTRH 101688 (x4)
Cooling Fan
Back Panel
Finger Guard
Back Panel
Back Panel
Heater Cover
Air Filter
Air Filter
Power Cord Retainers

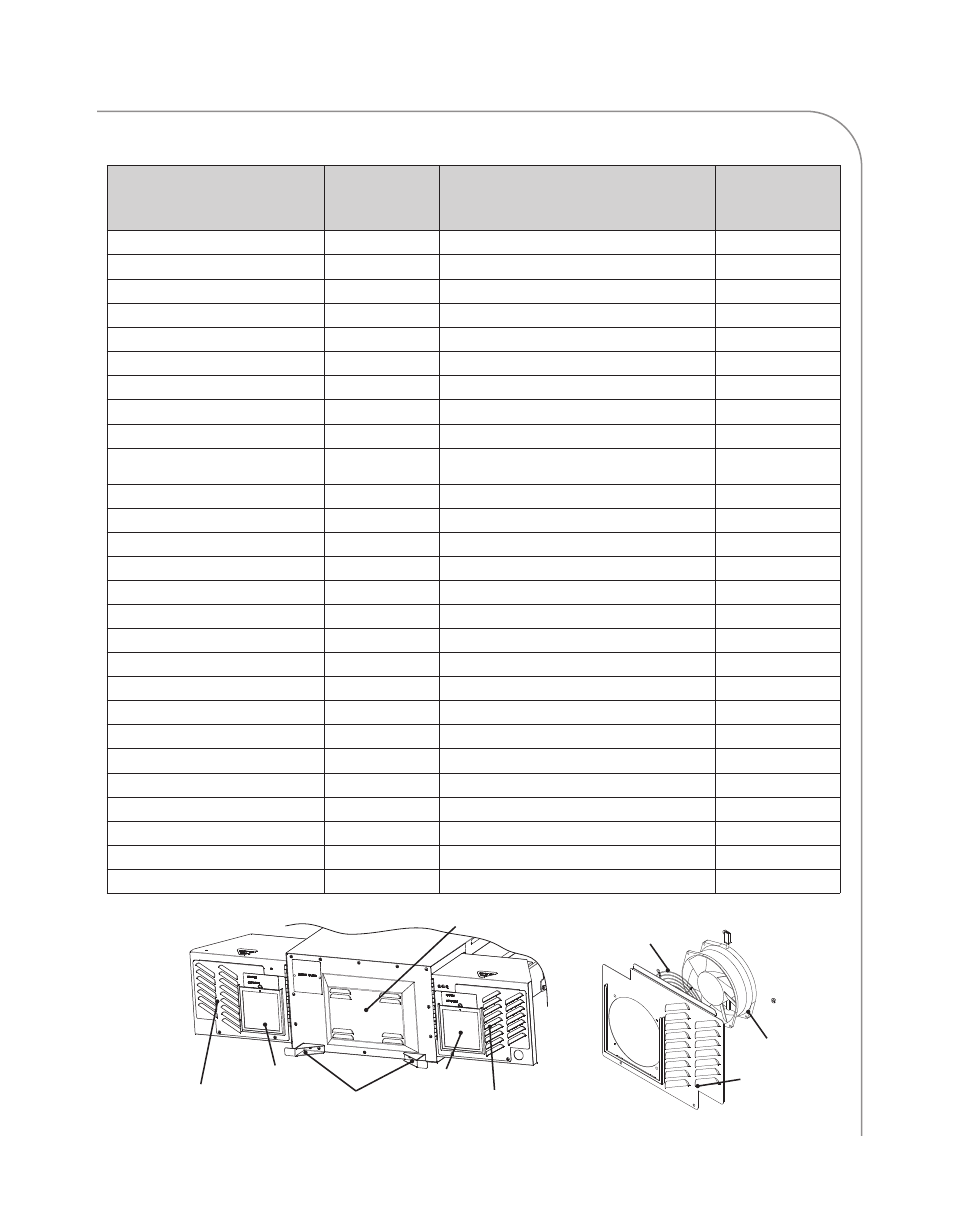

Figure A-3: Rear Oven Components
