S P E C I F I C AT I O N S A N D I N S TA L L AT I O N

Installation Near Open Heat Source

See Figure 7. When placing a TurboChef oven near
an open heat source, strictly adhere to the following:

- If the oven is being placed near a grill or stove,

a divider must exist between the oven and the
open heat source, with a minimum of 6” (152
mm) between the oven and the divider.

- If the oven is being placed near a fryer, a divider

must exist between the oven and fryer, with a
minimum of 12” (305 mm) between the oven
and the divider.

- The height of the divider must be greater than

or equal to the height of the oven(s) - page 1.

- Verify oven location has a minimum 10” (254

mm) clearance on top and minimum 2” (51
mm) of clearance on each side.

Ventilation Requirements

The HhC2020 should be operated underneath a
ventilation hood, except where local laws or codes
allow for use without a ventilation hood. For more
information or to order a ventilation hood, contact
800.90

TURBO

, +1 214-379-6000, or your local

distributor.

NOTE: In no event shall the manufacturer assume
any liability for damages or injuries resulting from
installations that are not in compliance with local
and national codes, and with the instructions
previously listed.

Grill

Partition

Above Counter Top:
Single Oven = 17.0” (432 mm)
Double Stack = 30.0” (762 mm)
Triple Stack = 43.0” (1092 mm)

6”

(152 mm)
Minimum

12”

(305 mm)
Minimum

Deep Fryer

Counter Top / Table

Partition

Above Counter Top:
Single Oven = 17.0” (432 mm)
Double Stack = 30.0” (762 mm)
Triple Stack = 43.0” (1092 mm)

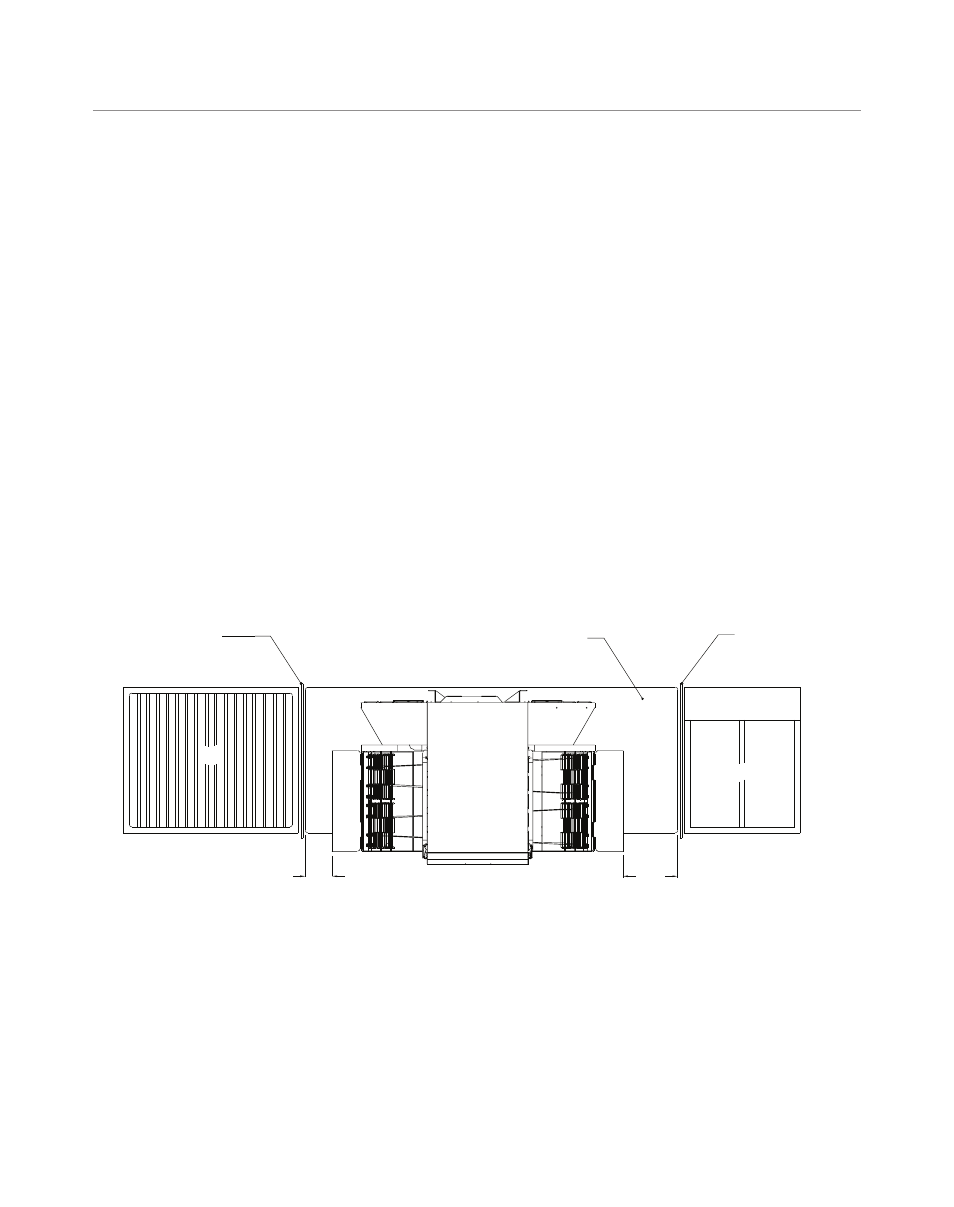

Figure 7: Installation Near Open Heat Source
