There is a wide range of audio and video

equipment that can be connected to your

TV.
Connection diagrams at the and of this sec-

tion show you where the different equipment

should be connected at the back side of the

TV.

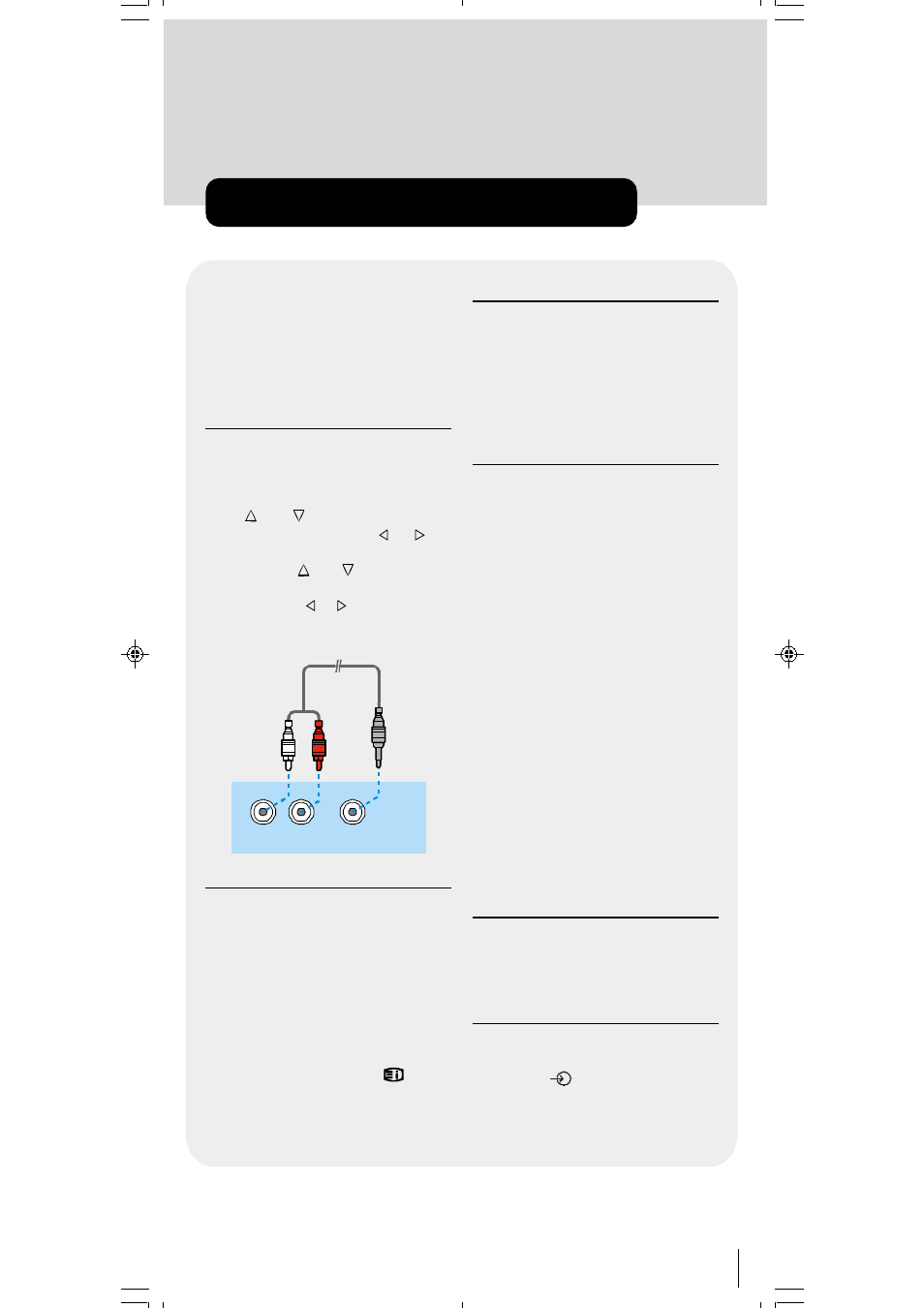

PC Sound Connection

Connect the PC Audio output to the TFT

PC Audio In socket with stereo connec-

tion cable.

In the main menu select "Feature" us-

ing or button then enter the
Feature menu pressing , or

OK button. Come on "PC Sound
Mode" using or button and se-

lect

AV-3

from the TV, AV-1,

AV-2 and AV-3

options using , or OK button.

Source also should be selected as PC

in the main menu.

6 V9DPÃÃDI

Q8Ã6 qv

Via the Euroconnector

Your TV set has 2 Euroconnector sock-

ets. If you want to connect peripherals

(e.g. video, decoder, etc.) which have Eu-

roconnectors, to your TV, use SCART in-

put.
If an external device is connected via Euro-

connector sockets TV is switched to AV

mode automatically. In this case if both

sockets are connected SCART-1 has the

precedence.
In AV mode if you press the

button

the TV status OSD is displayed on the

screen.

Via Ant Input

If you want to connect to your TV, periph-

erals like video recorders or decoders,

but the device you want to connect does

not have Euroconnector, you should con-

nect it to the ANT input of your TV set.
If the VCR is connected via antenna

input it is suggested to use the Pro-

gramme 0.

Decoder

Cable TV offers you a wide choice of pro-

grammes. Most of them are free, others are

to be paid for by the viewer. This means that

you will need to subscribe to the broadcast-

ing organisation whose programmes you

wish to receive. This organisation will supply

you a corresponding decoder unit to allow

the programmes to be unscrambled.
For further information ask your dealer. See

also the booklet supplied with your decoder.

Connect a decoder with an aerial

socket to the TV

Connect the aerial cable.

Connect a decoder without an

aerial socket to the TV

Connect the decoder to your TV with a

eurocable (RCA Jack Cable) to

EXTERNAL (RCA Jack) (optional). When

your decoder has a Euroconnector / RCA

Jack you can obtain better picture quality if

you connect a eurocable (RCA Jack

Cable) to EXTERNAL (RCA Jack)

(optional).

TV and Video Recorder

Connect the aerial cables.
Better picture quality can be obtained if you

also connect a eurocable to EXTERNAL

socket (optional).

Playback NTSC

Connect NTSC VCR player to one of two Eu-

roconnectors at the back of the TV.
Then, press

button to select AV-1 or

AV-2.

Connect Peripheral Equipment
