Eyepieces
{WHN10X-H
· WHSZ15X-H
· WHSZ20X-H
· WHSZ30X-H
1
NOMENCLATURE

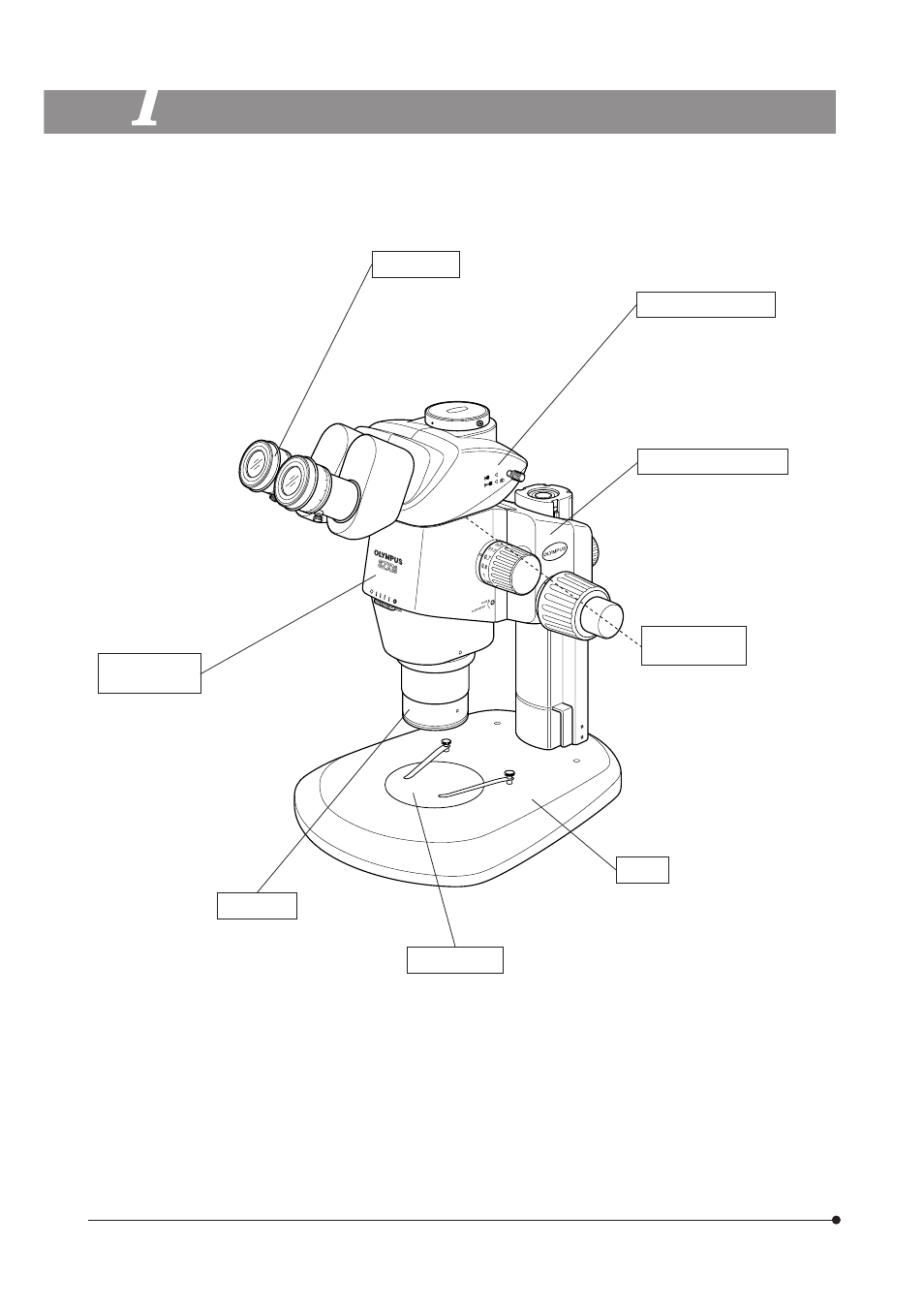

}The following illustration shows a typical system composed of modules marked with “{” in the list of each module, and
other modules may also be used in place of them. For the modules that are not shown in the module lists below, please
contact Olympus or the latest catalogues.
Microscope
body
{16X zoom microscope
body: SZX2-ZB16
Objective
· SDFPLFL0.3X**
· SDFPLAPO0.5XPF
· SDFPLAPO0.8X
{SDFPLAPO1XPF
· SDFPLAPO1.6XPF
· SDFPLAPO2XPFC
Observation tube
{Trinocular observation
tube: SZX2-TR30/TR30PT
· Tilting trinocular observation
tube: SZX2-TTR/TTRPT
Focusing assembly
· Coarse/fine focusing assembly:
SZX2-FOF
· Focusing assembly: SZX2-FO
{Coarse/fine focusing assembly
for heavy load: SZX2-FOFH
· Motorized focusing assembly:
SZX2-FOA2
Intermediate
attachments
· Coaxial vertical illuminator:
SZX2-ILLC16*
· Beam splitter: SZX2-LBS*
· Vertical fluorescent light
illuminator: SZX2-RFA16*
Base
{Standard base: SZX2-ST**
· Large base: SZX2-STL
· Transmitted light base: SZX2-ILLB*
SZX2-ILLD*
SZX2-ILLK*
SZX2-ILLT*
Stage plate
{Monochrome plate: SZ2-SPBW/SP-BW2
· Glass plate: SP-C
· Fluorescence center plate: SP-FL
*A separate instruction manual is available for the module marked *.
**The standard base (SZX2-ST) requires use of the optional auxiliary pillar (SZH-P400) and optional drop prevention collar
(SZX-R). The large base (SZX2-STL) comes with the auxiliary pillar (SZH-P400) mounted as standard. This enables the
large base to be used as is. However, be sure to use the drop prevention collar (SZX-R) in combination.
