9-4 BX Stage Adapter Type 2 SZX-STAD2
}This adapter is for installing the U-SIC4R2/SIC4L2 large stage* on the SZX2-STL/SZX-STL large stand**. When this stage
adapter is used, the SZH-P400 auxiliary pillar should be used to cover the height of the stage adapter (about 125 mm). In
addition, when a low-magnification objective with a long working distance (SDFPLFL0.3X) is used, the SZH-P600 auxiliary
pillar should be used (always together with the drop prevention collar).
* The U-SVL or S-SVR BS stage for the BX series microscopes can also be mounted but the operability deteriorates. The
U-SVLB and U-SVRB cannot be used due to their long stage knobs.
**A SZX2/SZX series illumination base can also be mounted, but its built-in transmitted illumination cannot be used.

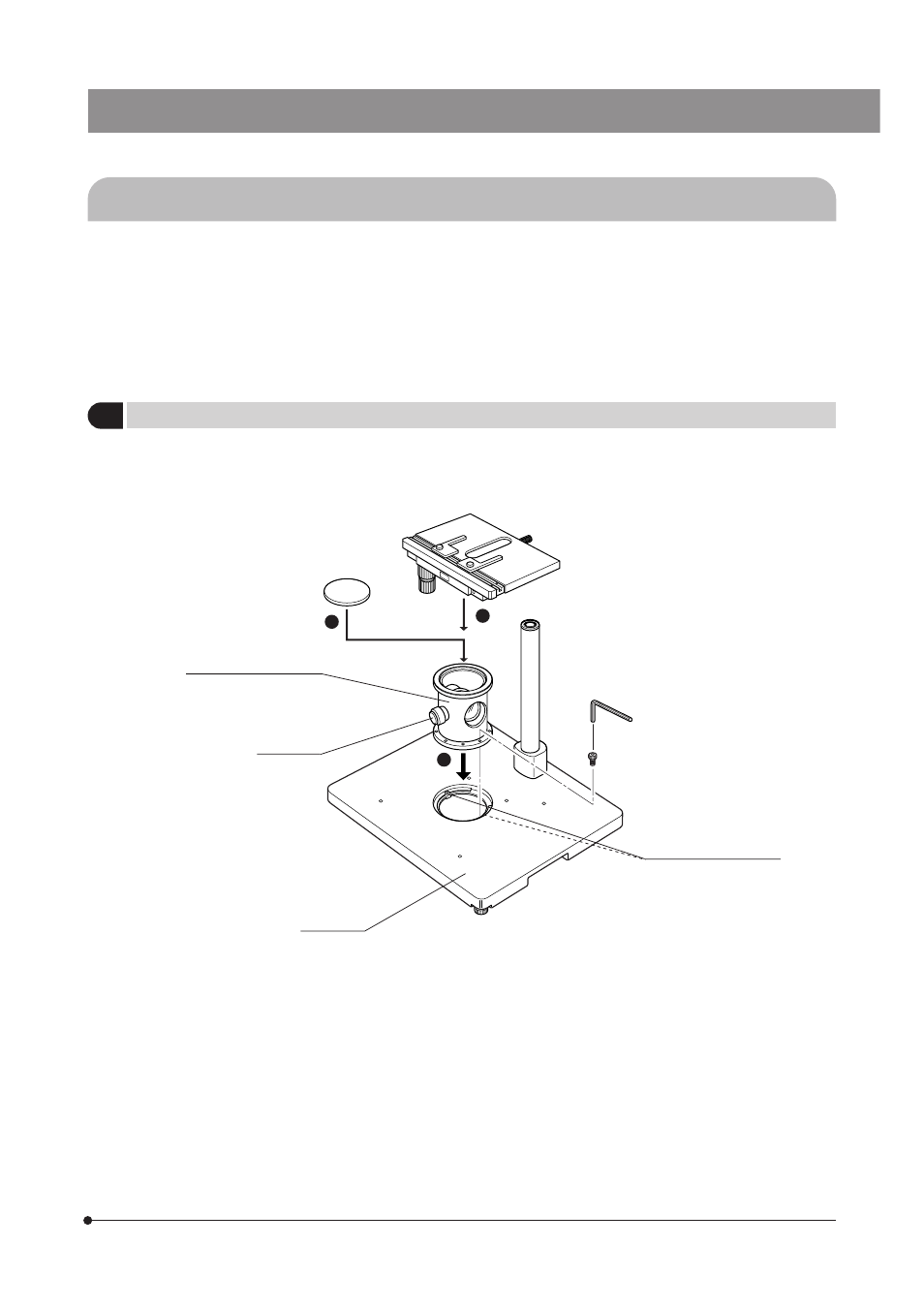

1 Assembly
2
1
3
Frosted filter
BX stage adapter type 2
SZX-STAD2
Mirror knob
Large base
SZX2-STL
Large stage
U-SIC4R2/SIC4L2
Allen wrench
(provided with the base)
Clamping screw
Mounting threaded hole
# For simplified transmitted light observation, place the mirror knob on the front and use a frosted filter.
