12

Fig. 13

Fig. 14

5

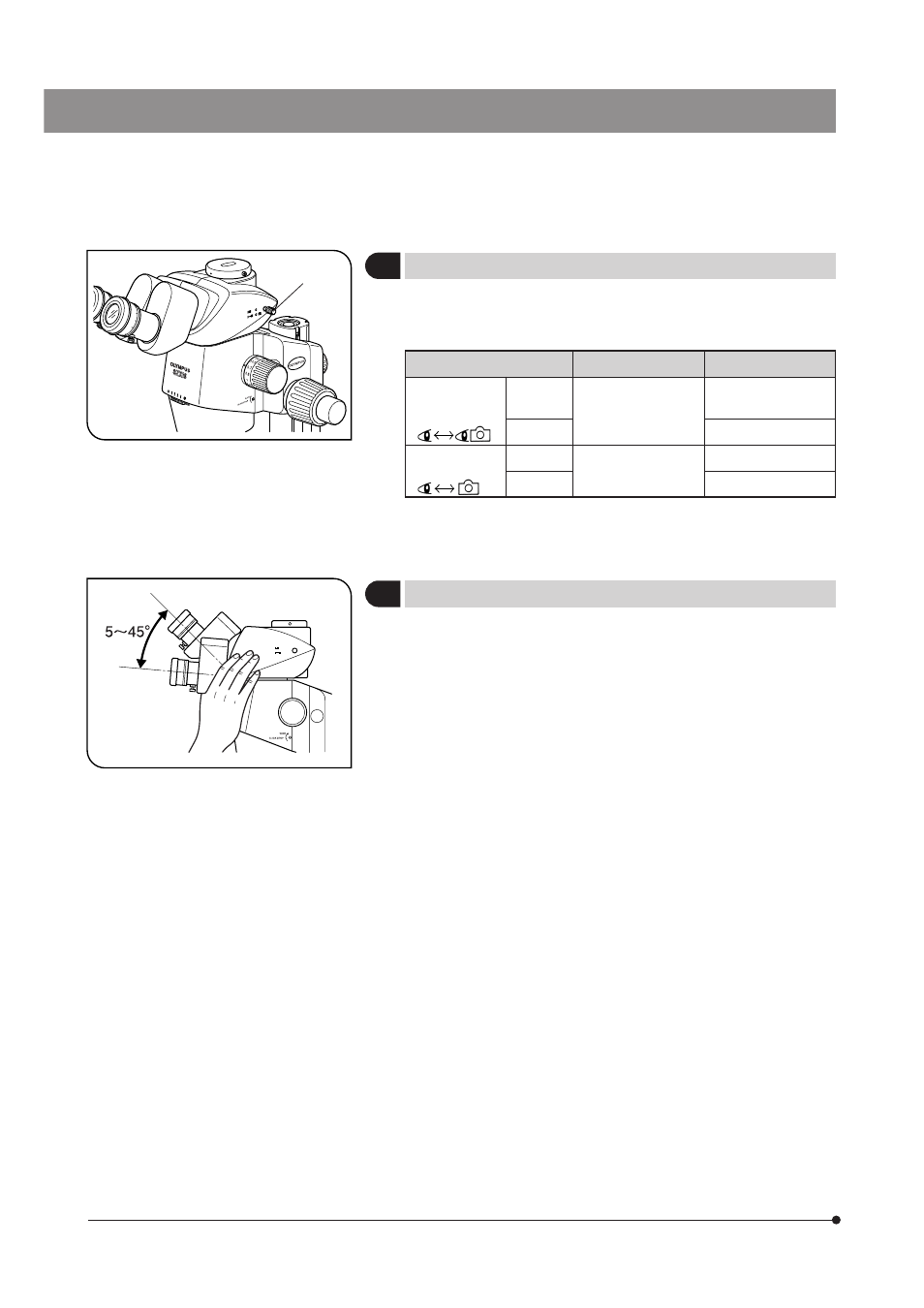

Selecting the Light Path

(Fig. 13)

}Pull out the light path selector knob @ to set the light path for the right

eyepiece to the TV/photomicrography light path.
(The following table shows the intensity ratio of each light path in %.)

Light Path Selector Knob

Pushed-in

Pulled-out

SZX2-TR30
SZX2-TTR

( )

Right

Binocular 100%

Binocular 50%,
TV/photo 50%

Left

Binocular 50%

SZX2-TR30PT
SZX2-TTRPT
( )

Right

Binocular 100%

TV/photo 100%

Left

Binocular 100%

# Always push or pull the light path selector knob @ all the way into a

stop position. Do not attempt to force the knob past the stop position.
Applying excessive force could destroy the mechanism.

6

Adjusting the Tilt

(Fig. 14)

}Adjust the height and tilt of the observation tube to the most comfortable

viewing position.
Holding the binocular assembly with both hands, raise or lower it to the
desired position.

# Do not attempt to force the binocular assembly past the upper or

lower stop position. Applying excessive force could destroy the
mechanism.

@
