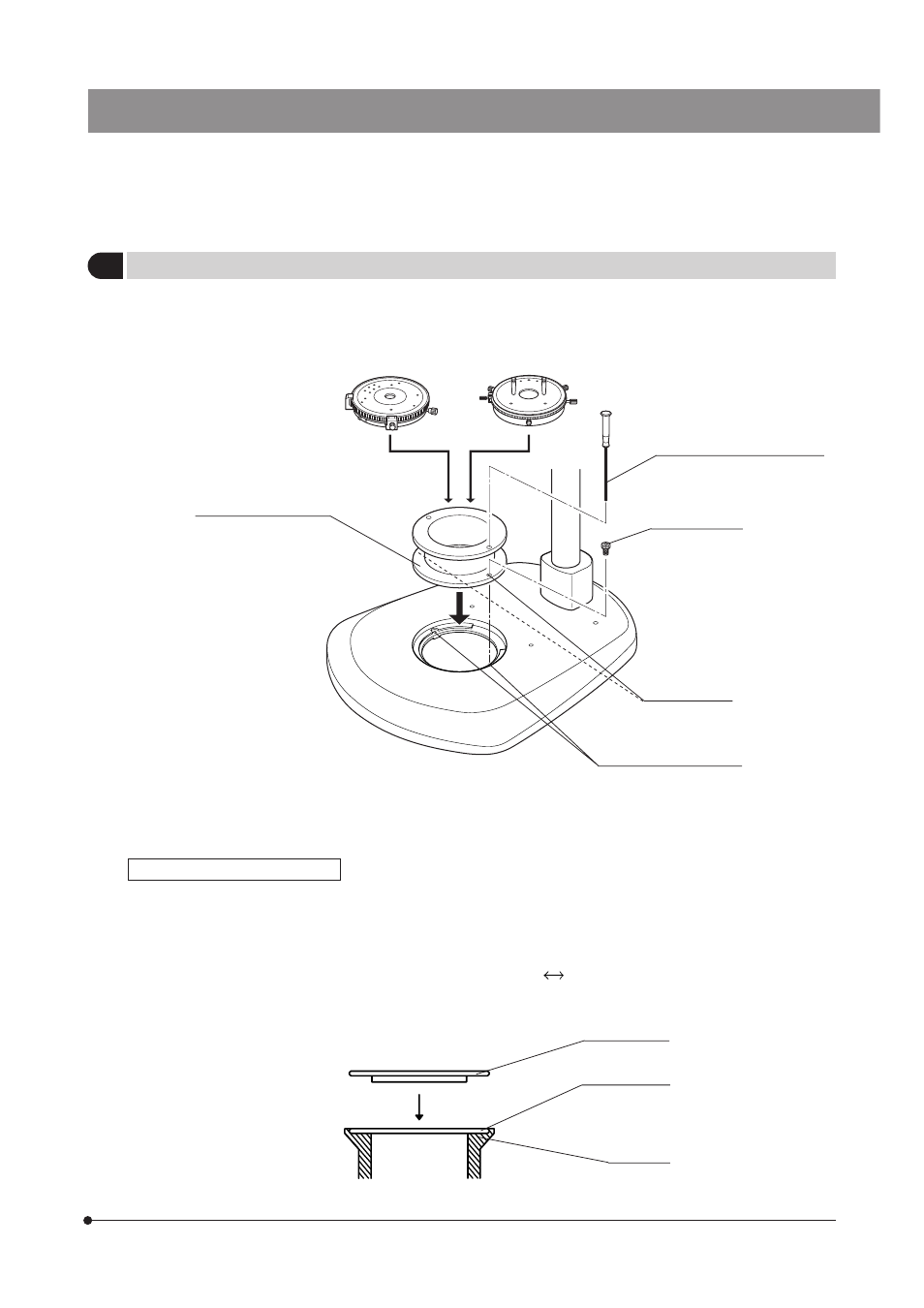

2 Assembly
BX stage adapter type 1
SZX-STAD1
Mechanical stage
U-FMP
Rotary stage
U-SRP
Rotary stage
U-SRG
Clamping screws
Allen screwdriver
(provided with the microscope
body)
Clamping screw
Mounting holes
x 2
Mounting threaded holes
x 2
Base
Mounting the Polarizer (SZX-PO)
When simplified transmitted polarized light observation is required, install the SZX-PO polarizer on the SZX-STAD1 BX
stage adapter type 1.
To install the polarizer, place the polarizer frame in the polarizer mount on the upper part of the SZX-STAD1.
(The standard polarizer oscillation direction is the horizontal direction .)
Polarizer frame
Polarizer mount
SZX-STAD1
