4. MAINTENANCE EO1-33032
4.1 Cleaning
4- 3
4.1.2 Media Guide Plate/
Pinch Roller/Sensors
(Cont.)
3. Remove the locking screw to detach the paper guide B from the
printer.
4. Push the pinch roller release lever toward the front of the printer to
release the strip pinch roller unit.
5. Wipe the feed roller and pinch rollers with a soft cloth moistened with
alcohol.
6. Remove dust or paper particles from the black mark and feed gap
sensors using an air blower.

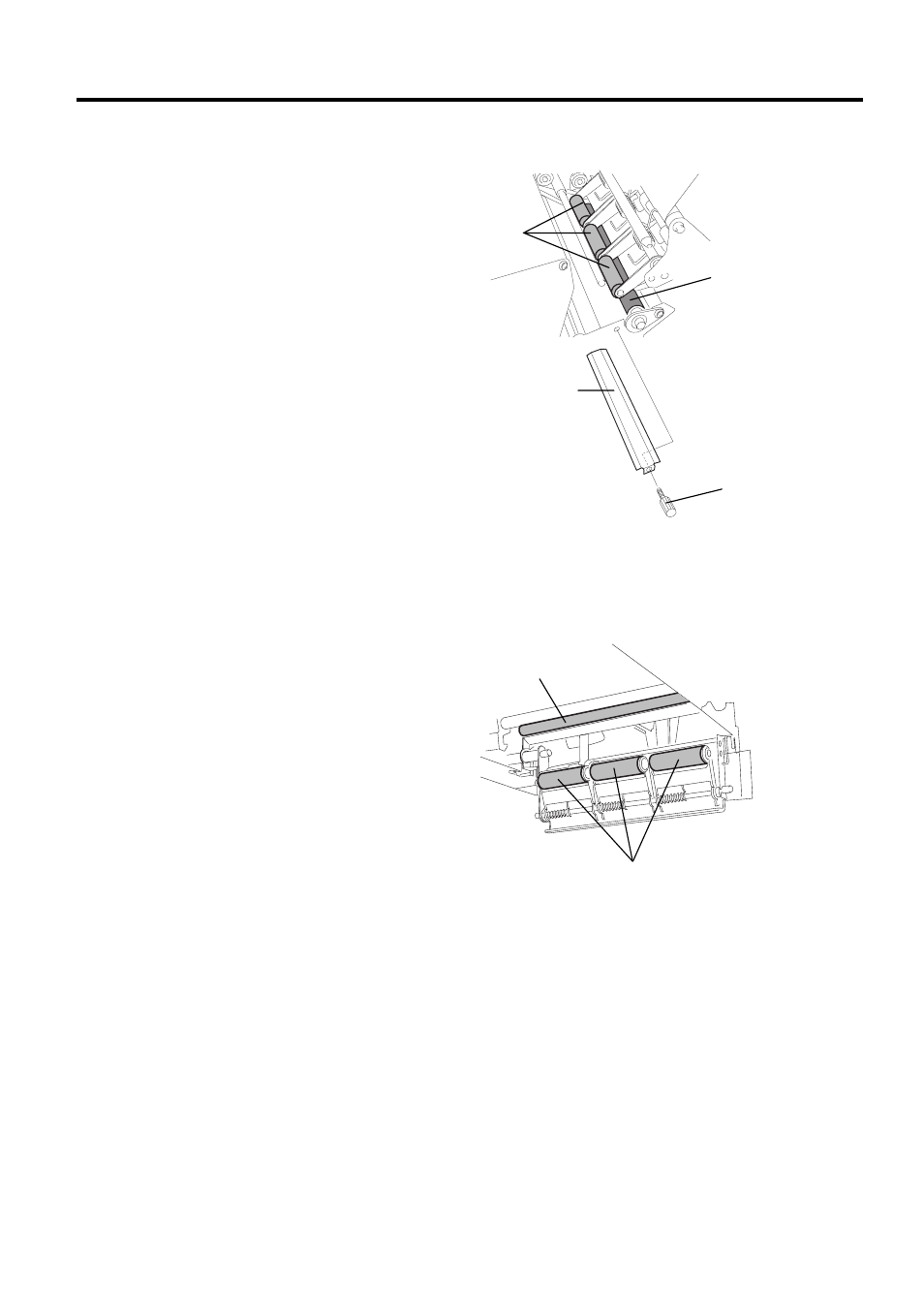

Locking Screw
Paper Guide B
Feed Roller
Pinch Roller
Strip Pinch Roller
Strip Feed Roller
