VIEWING VIDEO IMAGES
C. Projection the image
Preparations:
•
Remove the lens cap.
• Turn on power for the connected video equipment.
1 Turn “ON” the main power switch (O ➔ I).
• When the main power switch is turned
on, the POWER indicator comes on in
orange.
• If you turn projector off before it cools, the main power button
may not work when the cooling fan is running. (The POWER
indicator blinks in orange.) After the fan has stopped turning,
press the power button again to turn on the indicator in orange.
2 Press the POWER ( ) button.
•
It may take about one minute for the lamp to come on.
3 Select an input signal.
•
Press one of the SOURCE buttons (VIDEO, S-VIDEO, COMPO-
NENT 1, COMPONENT 2, DVI-DIGITAL, or DVI-ANALOG
button) according to the connected input terminal.
• Select the input signal after the video image is projected on the
screen.
• With this projector, the input signal is selected from the
SOURCE contained in the DISPLAY menu. (See page 27 for
details.)
• Some projected picture images may be easier to see by chang-
ing the ASPECT (image angle). (See page 21 for details.)
4 Set the projector after adjusting the projection distance to
obtain the specified image frame size.
5 Set the projector and screen so that they are perpendicular
to each other. (See page 15.)
• If the projector and the screen can not be made perpendicular to
each other, adjust the projection angle. (See page 15.)
6. Adjust the size of the projected image by turning the zoom
ring.
• It is possible to change the image size by varying the distance
from the projector to the screen.
7. Adjust the focus by turning the focus ring.

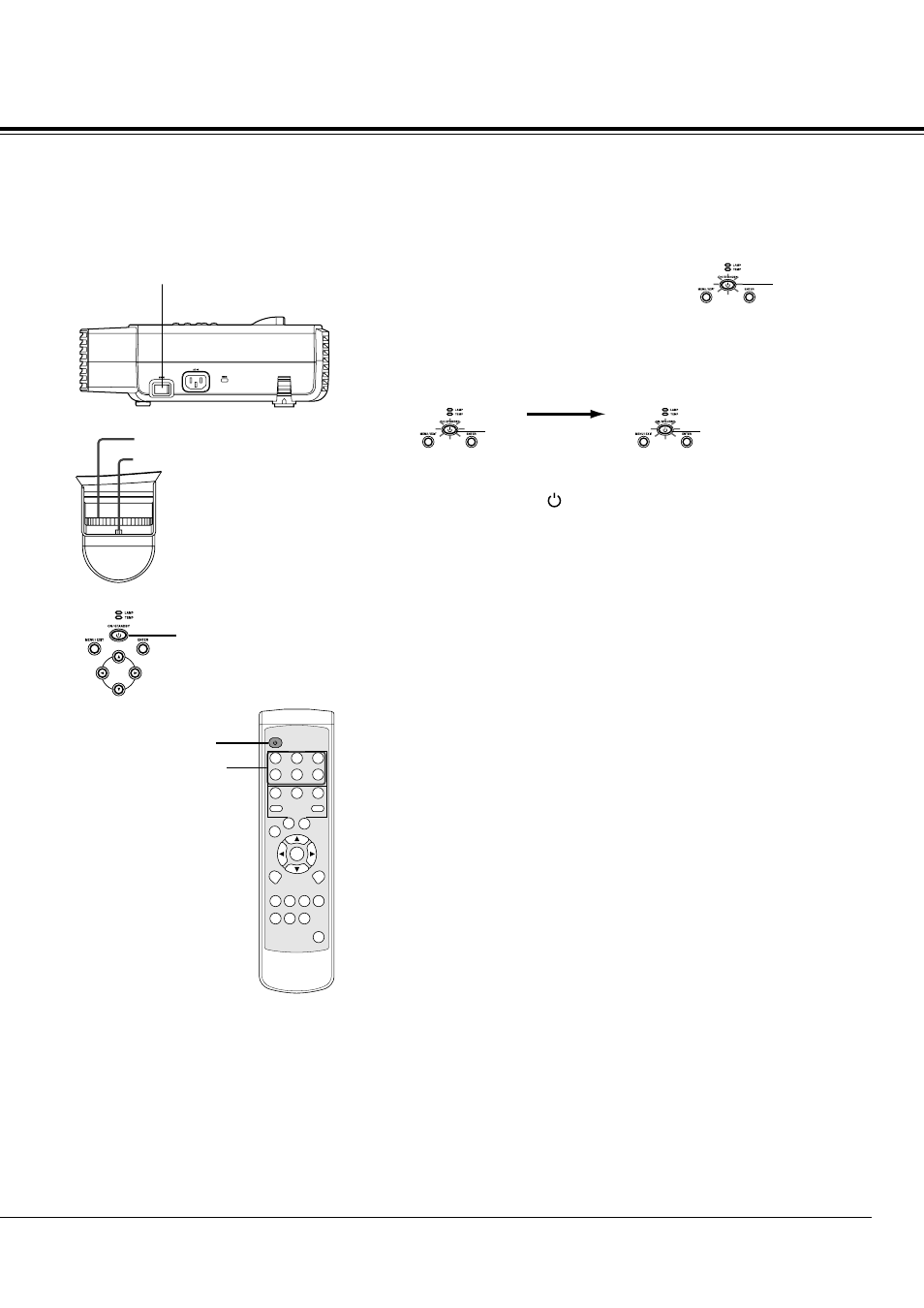

Main power switch
