Toshiba H9 - Manual (Page 43)

H9 ASD Installation and Operation Manual 35
Keypad Remote Mounting using the ASD-MTG-KIT
Note: See Figure 26 for the dimensions and the item locations referenced in steps 1 through 6 .
1. At the keypad mounting location, mark the 4.60” by 4.50” hole and the four 11/32” screw holes.
2. Cut the 4.60” by 4.50” rectangular hole.
3. Drill the four 11/32” holes for the Bezel Plate mount.
4. Attach and secure the Bezel plate to the front side of the mounting location using the four 10-32
hex nuts, #10 split lock washers, and the #10 flat washers.
5. Attach and secure the keypad to the front side of the Bezel plate using the four 6-32 x 5/16” pan
head screws, #6 split lock washers, and the #6 flat washers.
6. Connect the extension cable.
Keypad ASD-MTG-KIT Dimensions (mounting)

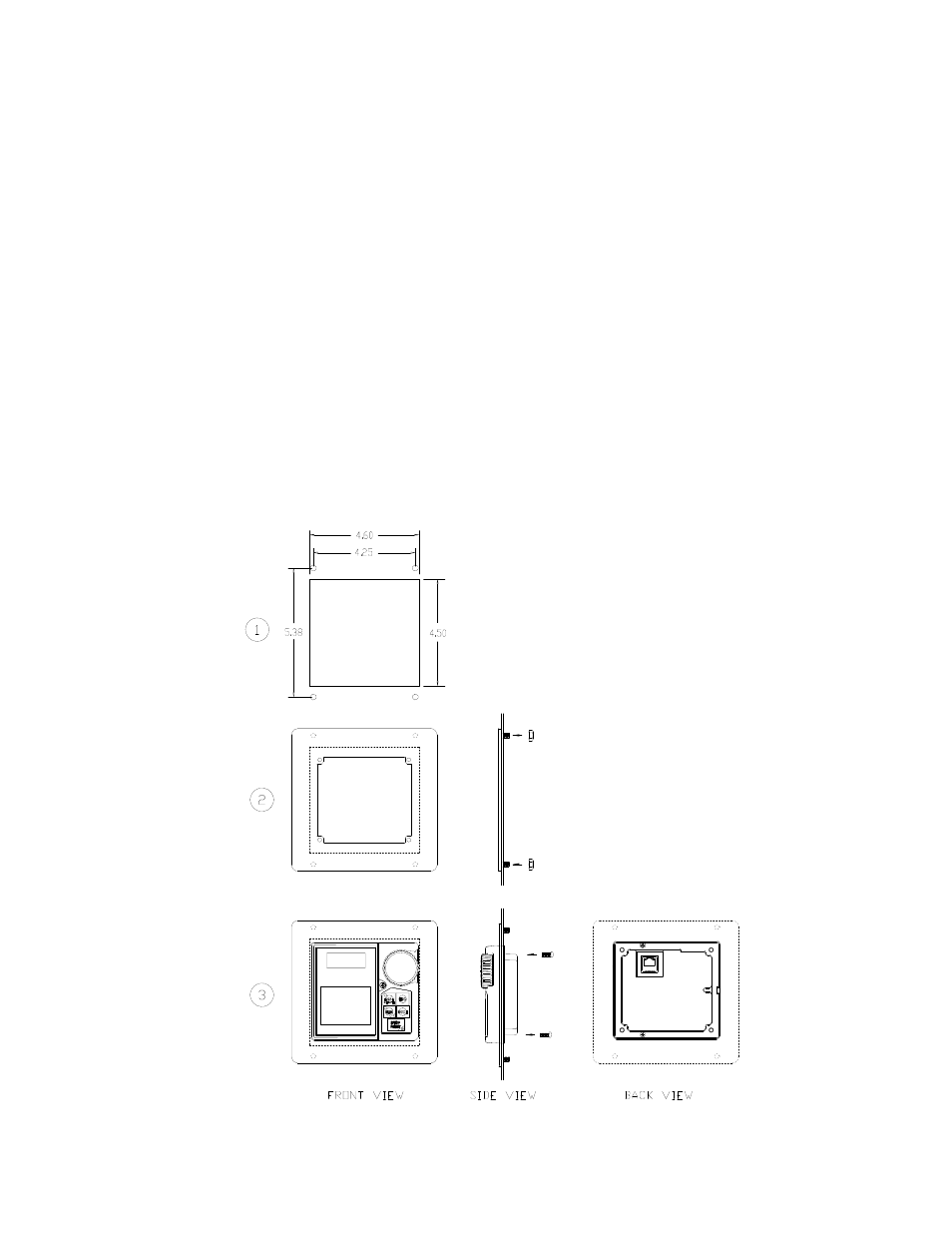

Figure 26. Keypad Bezel Plate Mounting Dimensions.
