I/O Circuit Configurations

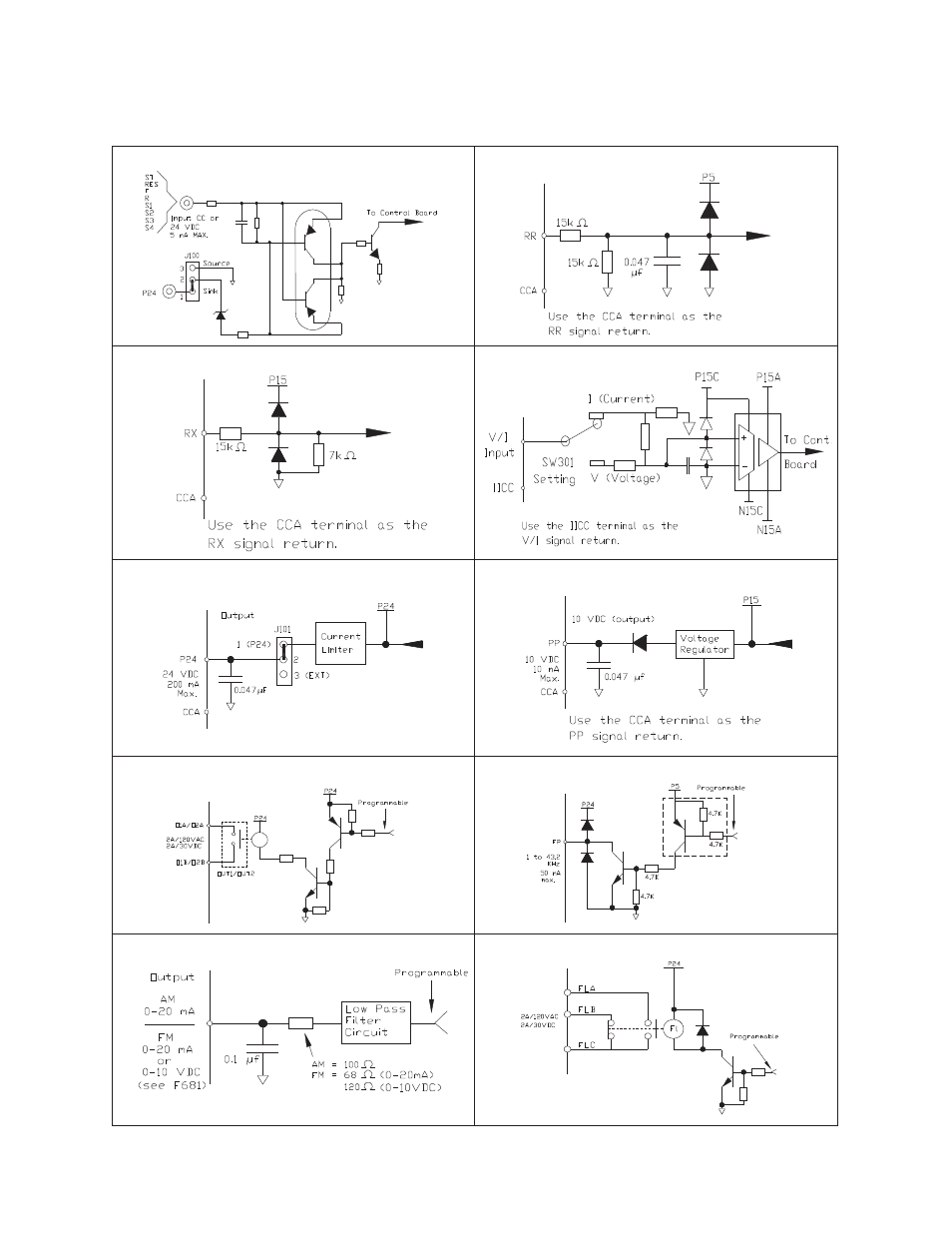

Figure 10. Discrete Input.

Figure 11. RR Input.

Figure 12. RX Input.

Figure 13. V/I Isolated Input.

Figure 14. P24 Output.

Figure 15. PP Output.

Figure 16. OUT1/OUT2 Output.

Figure 17. FP Output.

Figure 18. AM/FM Output.

Figure 19. Fault Relay (shown faulted).
