Acc/Dec Pattern 1
Program
⇒
Special
⇒
Accel/Decel #1 – #4 Settings
This parameter enables a user-selected preprogrammed output profile that
controls the acceleration and deceleration pattern for the #1 Accel/Decel
parameter.
Settings:
0 — Linear
1 — S-Pattern 1
2 — S-Pattern 2

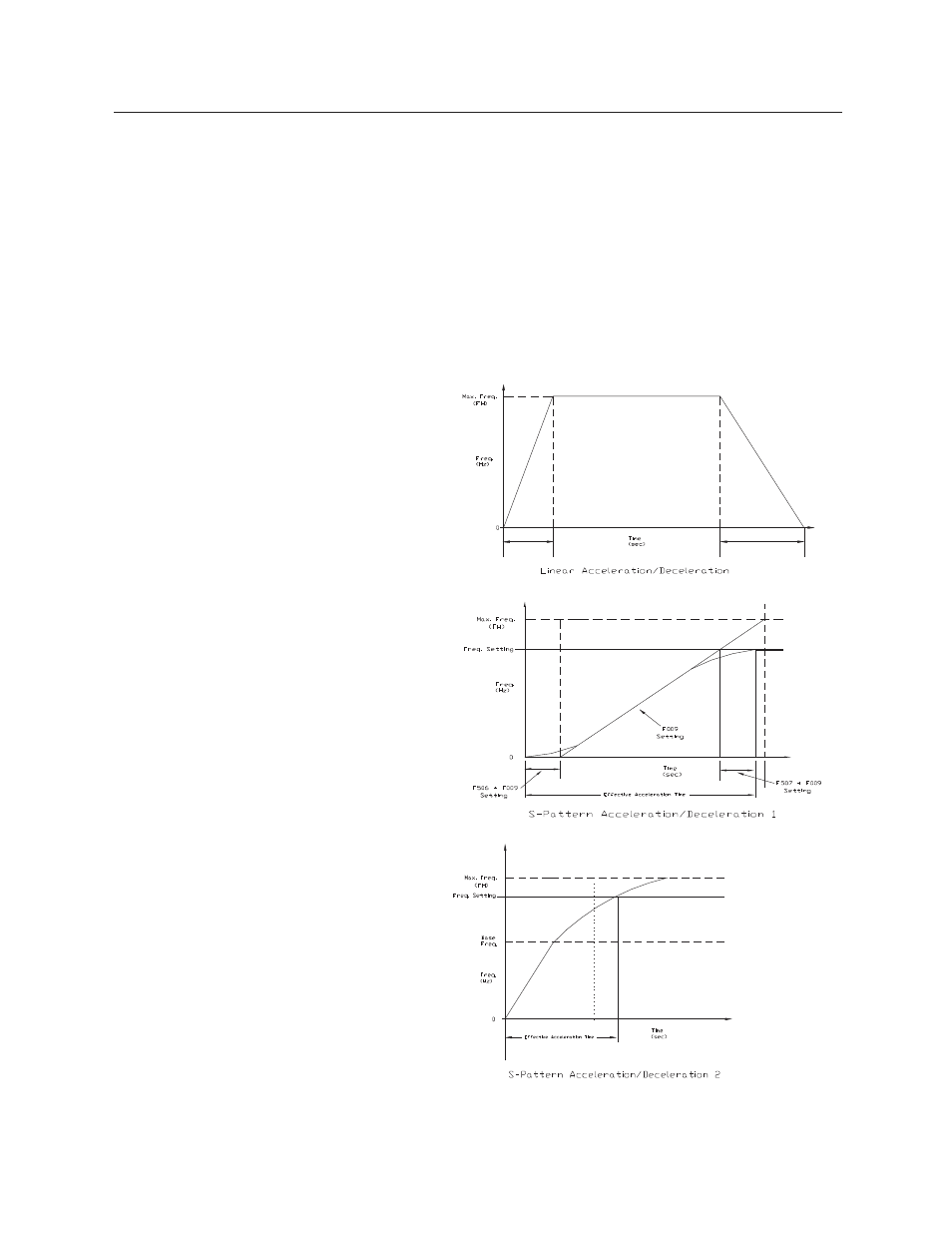

The figures below provide a profile of the available accel/decel patterns.
Direct Access Number — F502
Parameter Type — Selection List
Factory Default — Linear
Changeable During Run — Yes
Linear acceleration and deceleration is the
default pattern and is used on most
applications.
S-pattern 1 is used for applications that require
quick acceleration and deceleration. This setting
is also popular for applications that require shock
absorption at the start of acceleration or
deceleration.
S-pattern 2 decreases the rate of change
above the base frequency.
F502 F502
