Oki RT322POS User Manual

Page 58

– 54 –

Note:

1) Peripheral units 1 and 2 cannot be driven simultaneously.

2) To drive them continuously, set the duty cycle ratio to 20% or less (except when a

peripheral buzzer is connected).

3) Never use the peripheral buzzer drive command if a device other than a peripheral

buzzer is connected (i.e., cash drawer, etc.). Doing so can damage the connected device

and this circuit.

4) The status of the compulsion switch can be known from the status command. Refer

to the separate Programmer's Technical Reference manual for details.

5) Minimum resistance for coils L1 and L2 is 24W.

6) Absolute maximum ratings for diodes D1 and D2 (Ta = 77°F/25°C) are:

Average Rectified Current I

= 1A

7) Absolute maximum rating for transistors TR1 and TR2 (Ta = 77°F/25°C) are:

Collector current I

= 2.0 A

Drive Output: 24 V, Max. 1.0 A

TR1, TR2:

Transistor 2SD 1866 or equivalent

R1=10 kW

R2=33 kW

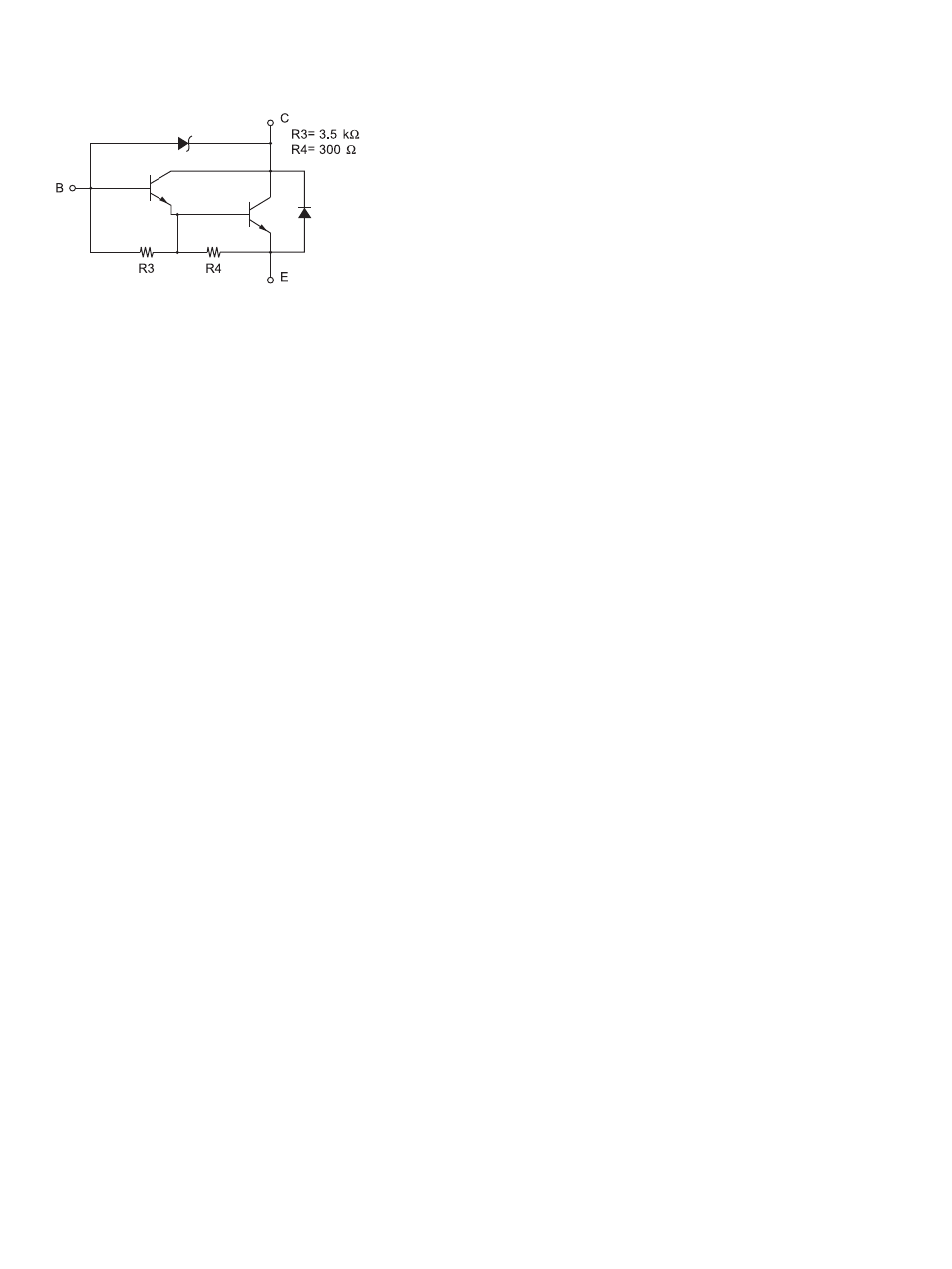

Reference

2SD 1866 Circuit Configuration
