Oki RT322POS User Manual
Page 11

– 7 –
(1) Make sure the printer is turned off.

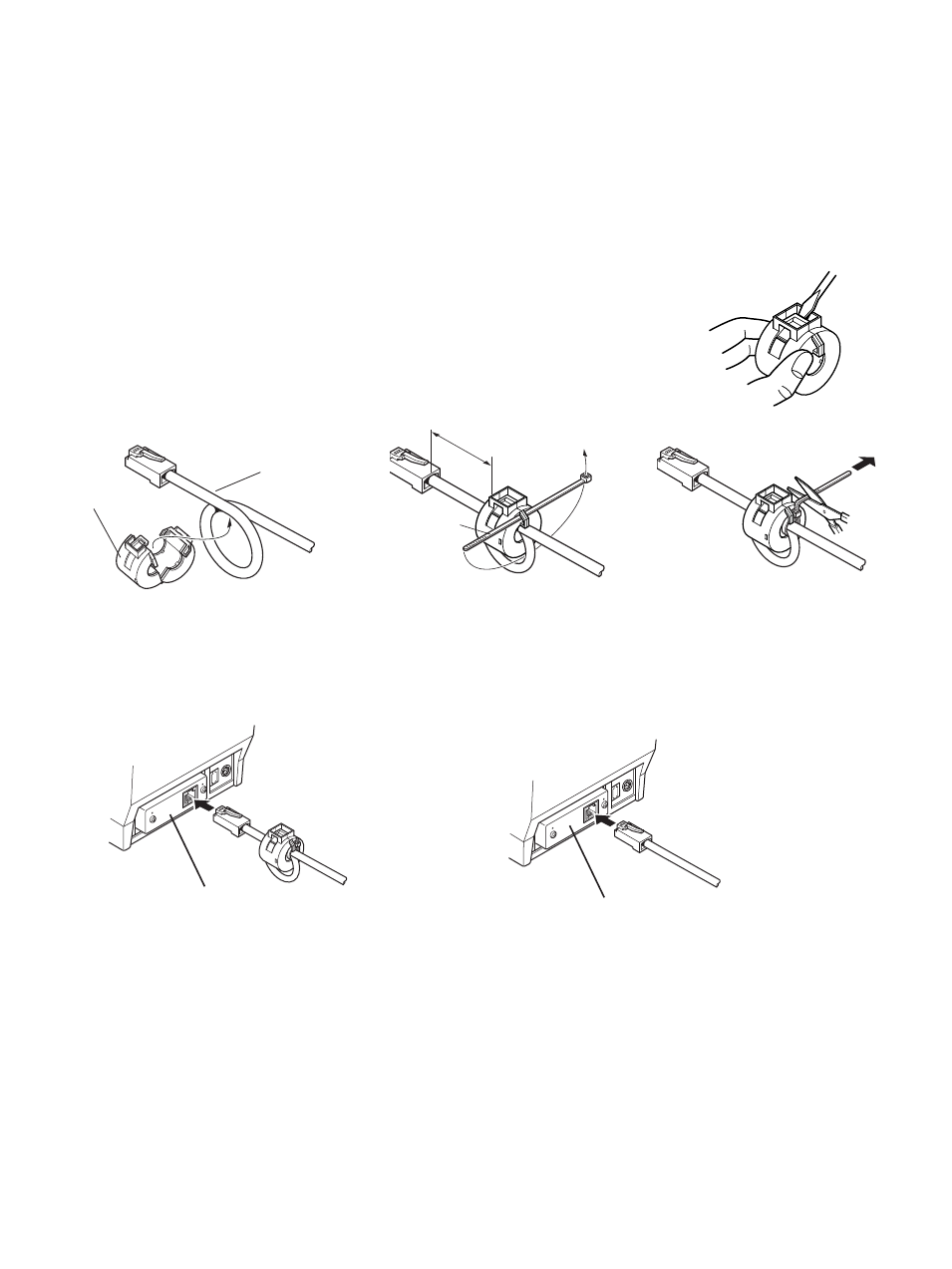

(2) Install the ferrite core onto the ethernet cable as shown
in the illustration below.
(3) Pass the fastener through the ferrite core.
(4) Loop the fastener around the cable and lock it. Use scis-
sors to cut off any excess.
(5) Connect the interface cable to the connector on the rear
panel of the printer.
10 cm
(maximum)
Fastener
Ferrite core
Ethernet cable
3-2-4. Connecting Ethernet Cable
If a ferrite core is included, install the ferrite core onto the Ethernet cable according to the fol-
lowing procedure to prevent electrical noise.
If a ferrite core is not included, perform steps (1) and (5) only.
When using an Ethernet cable that is 10 m or less, shielded cable is recommended.
Ethernet interface board
IFBD-HE07
Ethernet interface board
IFBD-HE05
